7.13
CVT / TRANSMISSION
7

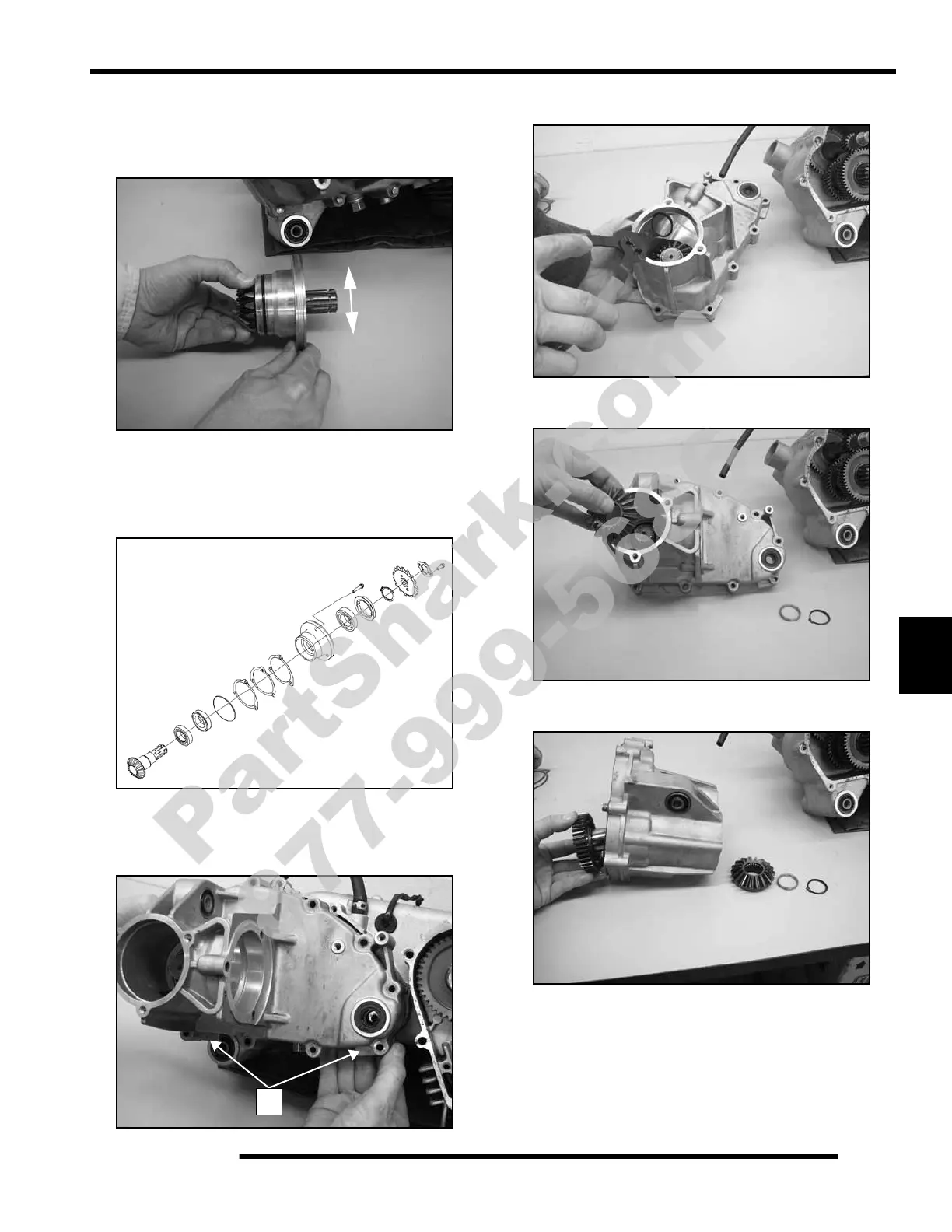

7. Turn output shaft by hand to check for smooth rotation.
Push on splined end and gear end of shaft. There should be
no detectable up and down or side to side movement. Check
splines and gear teeth for wear or damage.
8. If damage or wear is evident, or if seal is leaking, replace
output housing assembly or replace parts as required. See
“Output Shaft Housing Disassembly / Assembly” on
page 7.20.
9. Remove all transmission cover screws. Tap lightly with a
soft faced hammer. Pry points (E) can be used carefully to
help release cover and gasket.
10. Remove retaining ring from drive pinion.
11. Remove spacer and gear.
12. Push shaft out of cover housing.
13. Inspect gear teeth and bearing. If components are replaced,
inspect output gear pinion depth and adjust with shims as
required. See “Output Gear Pinion Depth Adjustment” on
page 7.19 for procedure.
If parts are replaced refer to
output gear depth adjustment
in this chapter.
