CVT / TRANSMISSION

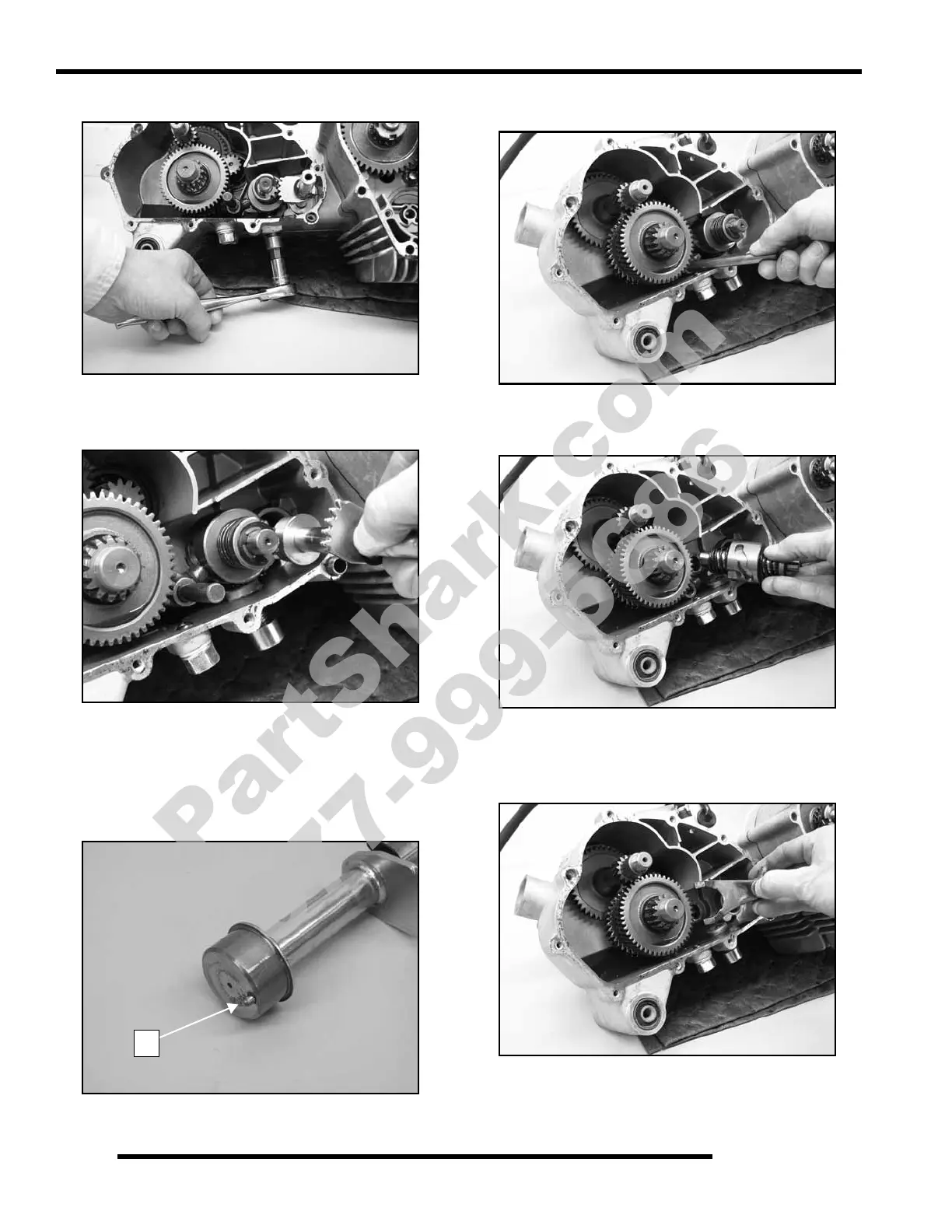

14. Remove detent bolt with ball and spring.
15. Pull shift shaft from case.
16. Push and release the spring loaded gear position switch
plunger (F). Be sure it moves freely inward and extends
under spring pressure when released.
17. Remove shift fork shaft. Pull fork out of shift drum track.
18. Remove shift drum.
19. Remove shift fork.
