7.18
CVT / TRANSMISSION

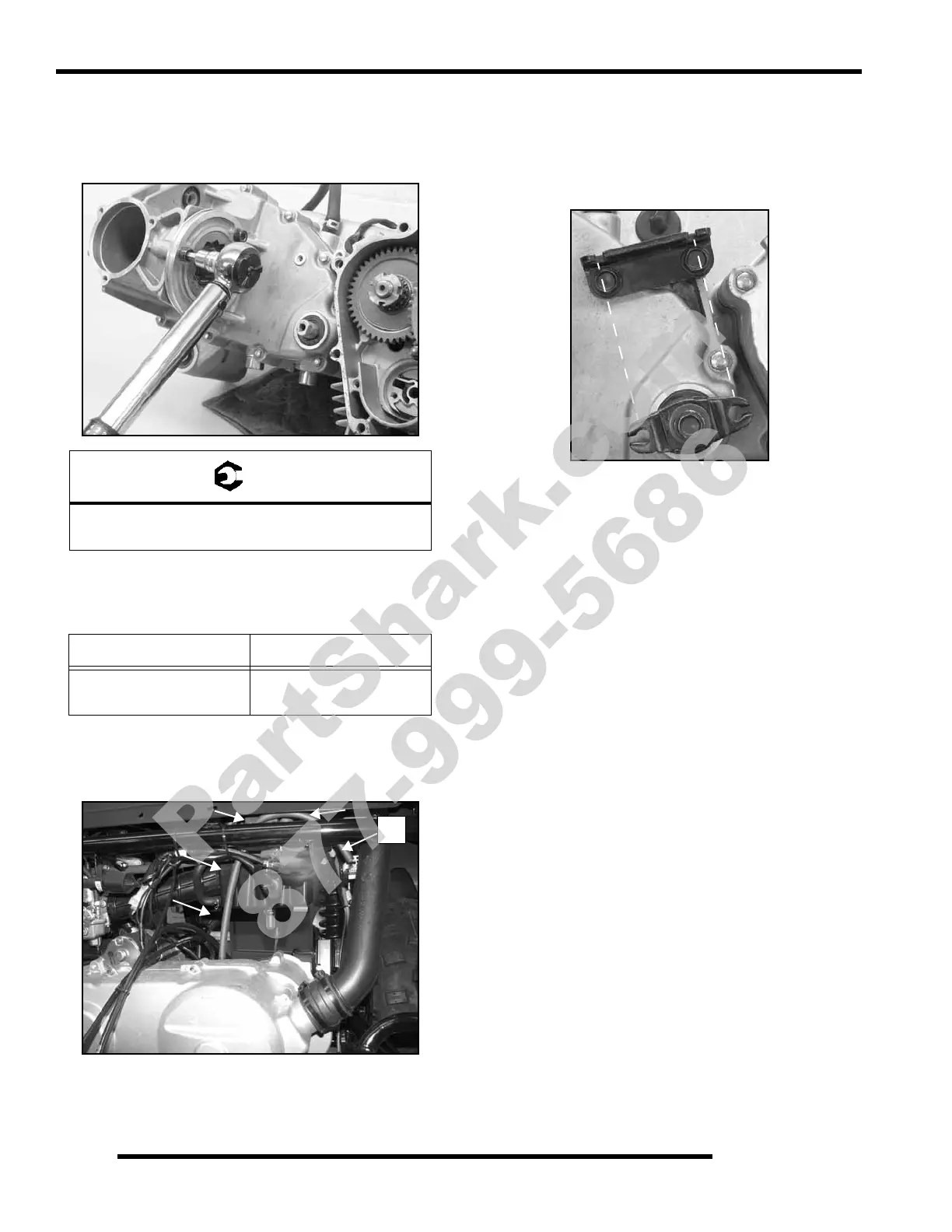

5. Assemble output shaft housing to case with existing shims.
If components were replaced you must inspect output gear
pinion depth. See “Output Gear Pinion Depth Adjustment”
on page 7.19.
6. Install outer cover (oil fill cover).
7. Add 27 fl. oz. (800ml) of oil.
8. Verify vent hose is clear. After installing engine in frame,
route and secure hose lightly as shown with open end (G)
pointing down.
9. After installation in the frame, adjust shift cables in the
following manner:
• Place gear selector in NEUTRAL
• Verify transmission shift arm is in NEUTRAL
• Attach cables to bracket and to shift arm.
• Adjust each cable until slack is removed from each
cable and tighten cable adjusters securely.
• Check for proper shift operation
Output Housing:
14 ft. lbs. (19 Nm)
L
UBRICANT CAPACITY
AGL - Synthetic ATV
Gearcase Lubricant
27 fl. oz. (800 ml)
Shift Arm - Neutral Position
