Polaris RZR 170 2009 - Page 98

5.4
BODY / SUSPENSION / STEERING

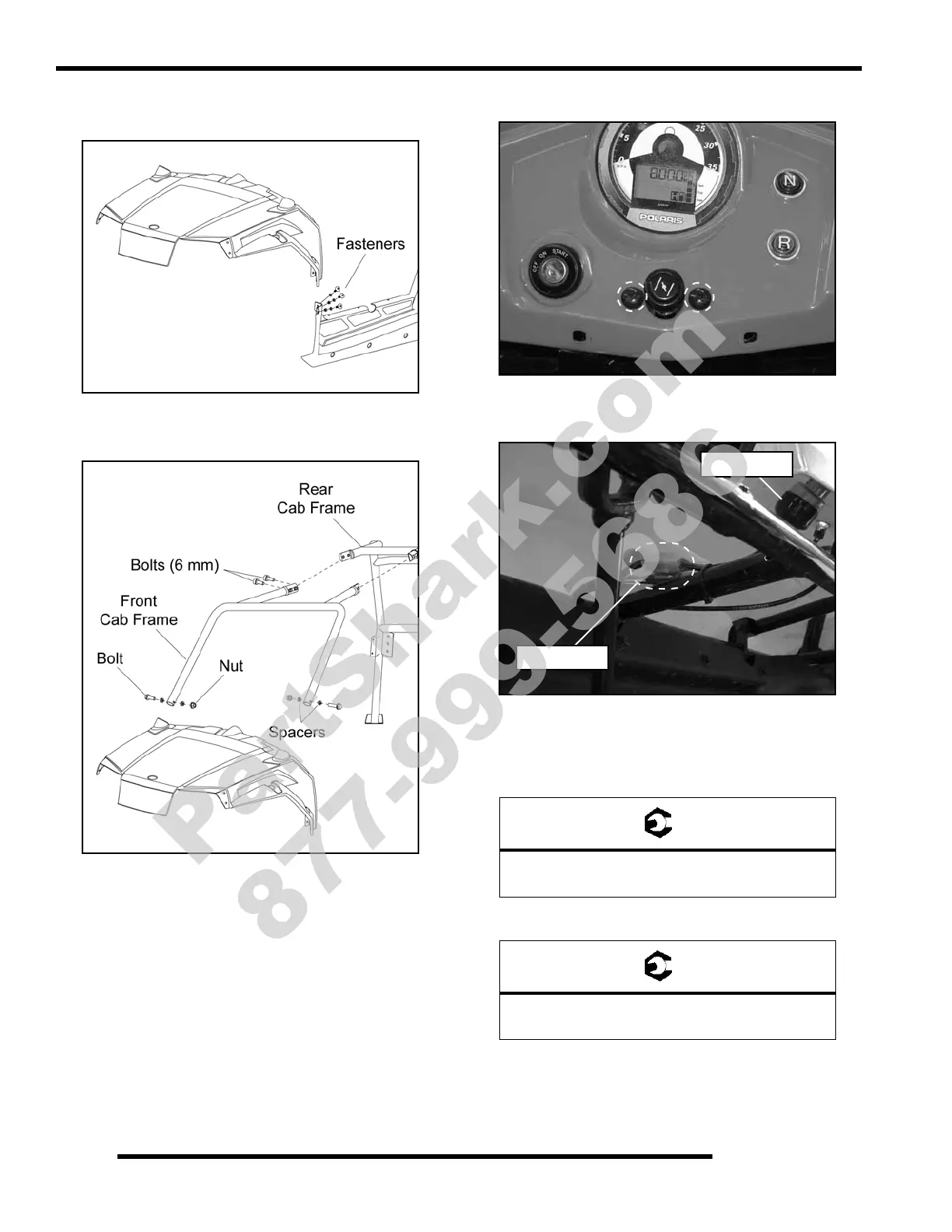

3. Remove the (3) fasteners from each side, retaining the front
cab to the rocker panels.
4. Using a 6 mm Allen socket, remove the (4) bolts retaining
the front cab frame to the rear cab frame.
5. Remove the (2) fasteners retaining the front cab frame to
the main frame. Note the orientation of the (4) spacers
during removal.
6. Carefully remove the front cab frame from the vehicle.
7. Remove the (2) screws retaining the choke bracket.
8. Disconnect the indicator lights and key switch harness
connections under the dash as shown.
9. Remove the front cab from the vehicle.
10. Reverse this procedure to reinstall the front cab. Tighten all
fasteners securely.
11. Torque the cab frame bolts and fasteners to specification.
= T
Body Component Fasteners:
16 in. lbs. (1.8 Nm)
= T
Cab Frame Fasteners:
20 ft. lbs. (27 Nm)
Key Switch
Disconnect
