8. Remove the ranging board (with the LCD board attached).

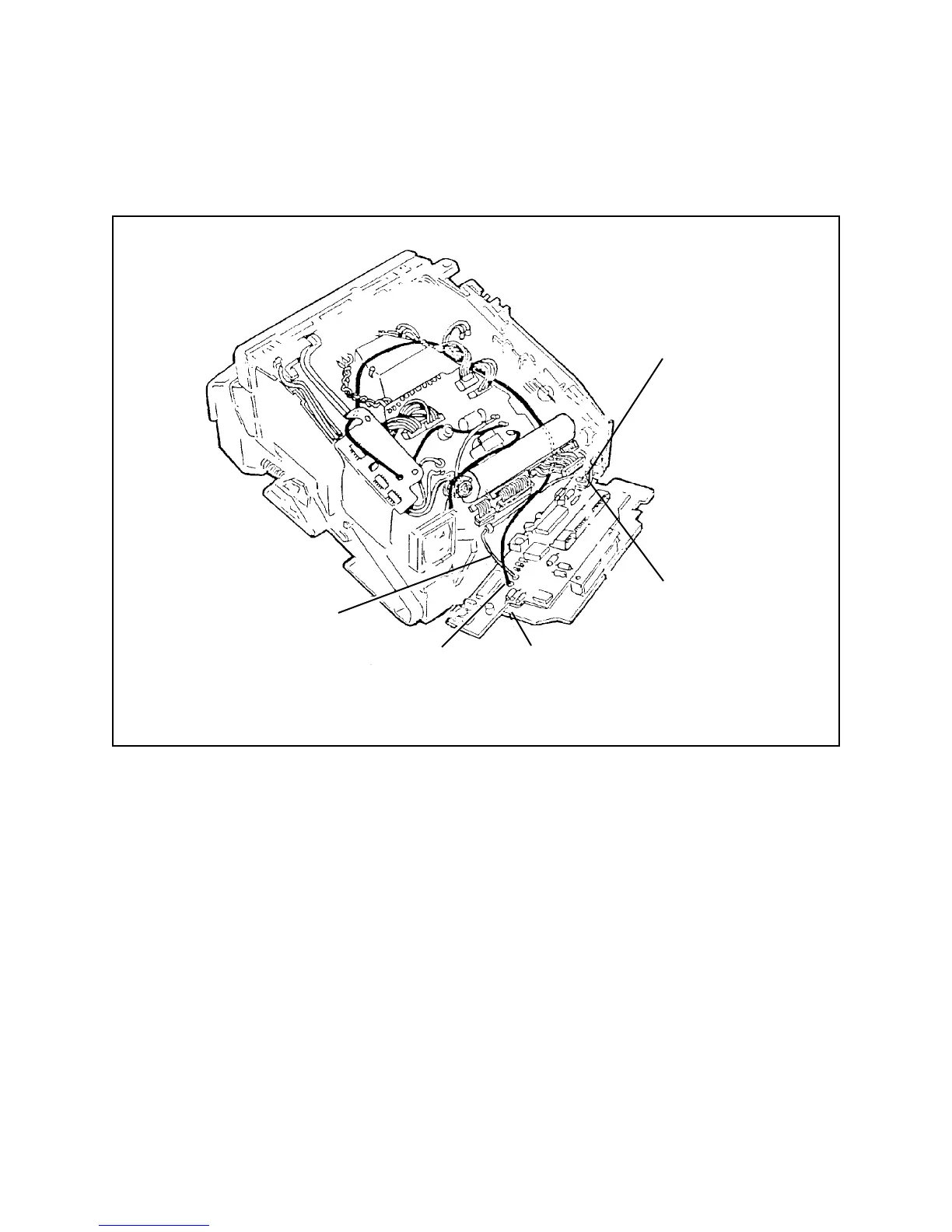

Figure 2-7. Releasing ranging board wire connections
White Wire
to J5
Brown Wire
to J4
Ranging
Board
Black Wire
to J19
Black/Red Wire
to J20
