53
IR Strobe Exposure Calibration Slide Adjustment
1. Remove the Top Cover from the camera (Figure 3-16).
Warning: HIGH VOLTAGE EXPOSURE! Up to 320V
is present on top flash tube terminal (green
wire) and at various other locations on the
strobe board.
2. If the Strobe Exposure Test readings are too low, use a dental pick and slide the IR
strobe Exposure Calibration Slide (Figure 3-18) to the right, in proportion to the
amount the reading is too low. The IR Strobe Exposure Calibration Slide is the
nearer or front-most Slide, when the Base Block is viewed from the rear of the
camera).
3. If the Strobe Exposure Test readings are too high, slide the IR Calibration Slide to the
left, in proportion to the amount the reading is too high.

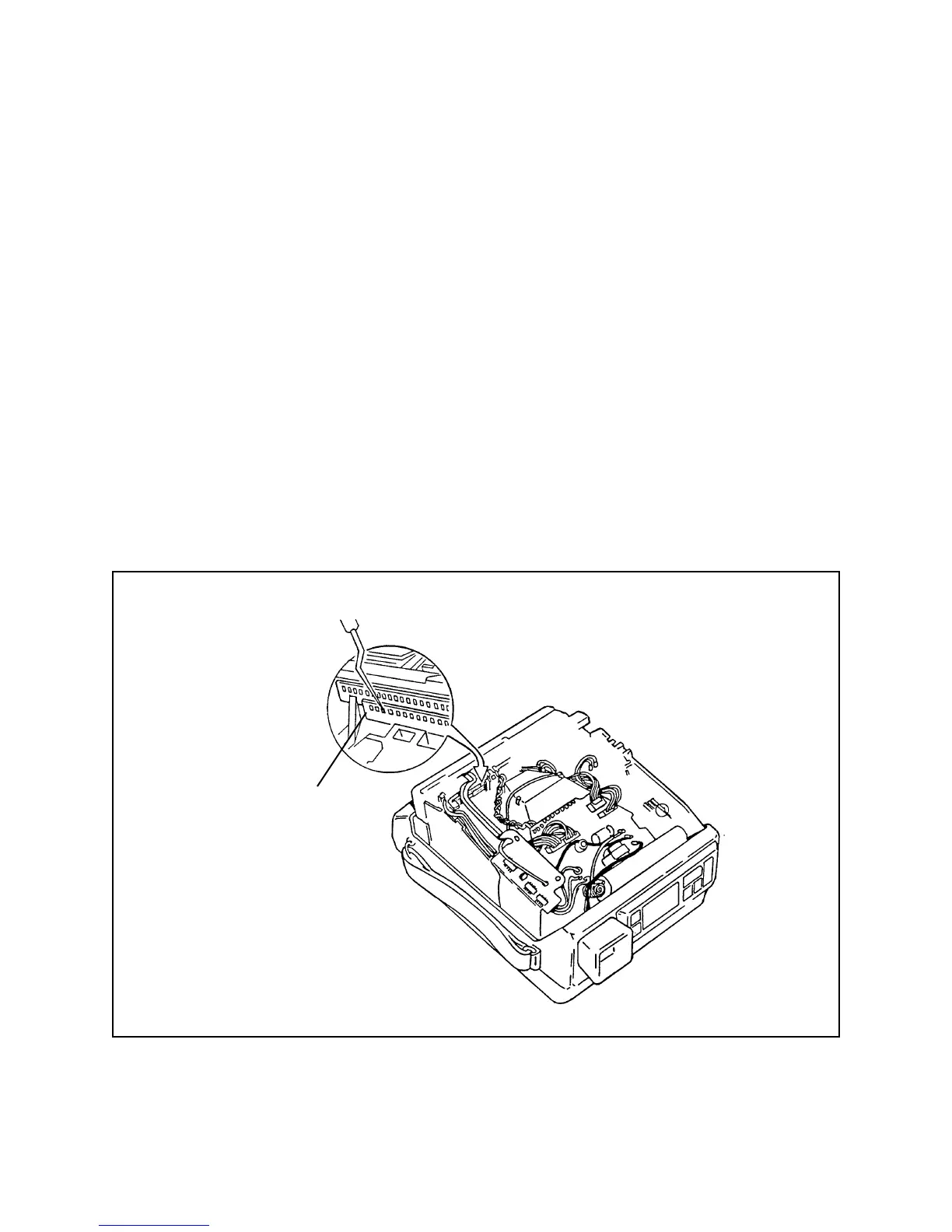

Figure 3-18. Adjusting the IR strobe exposure calibration slide
IR Strobe
Calibration Slide
