31
15.Remove the soldering aide from the flapper door and remove the black photographic
tape from the photocell. Press the green A button on the control panel to return the
camera to its original settings.

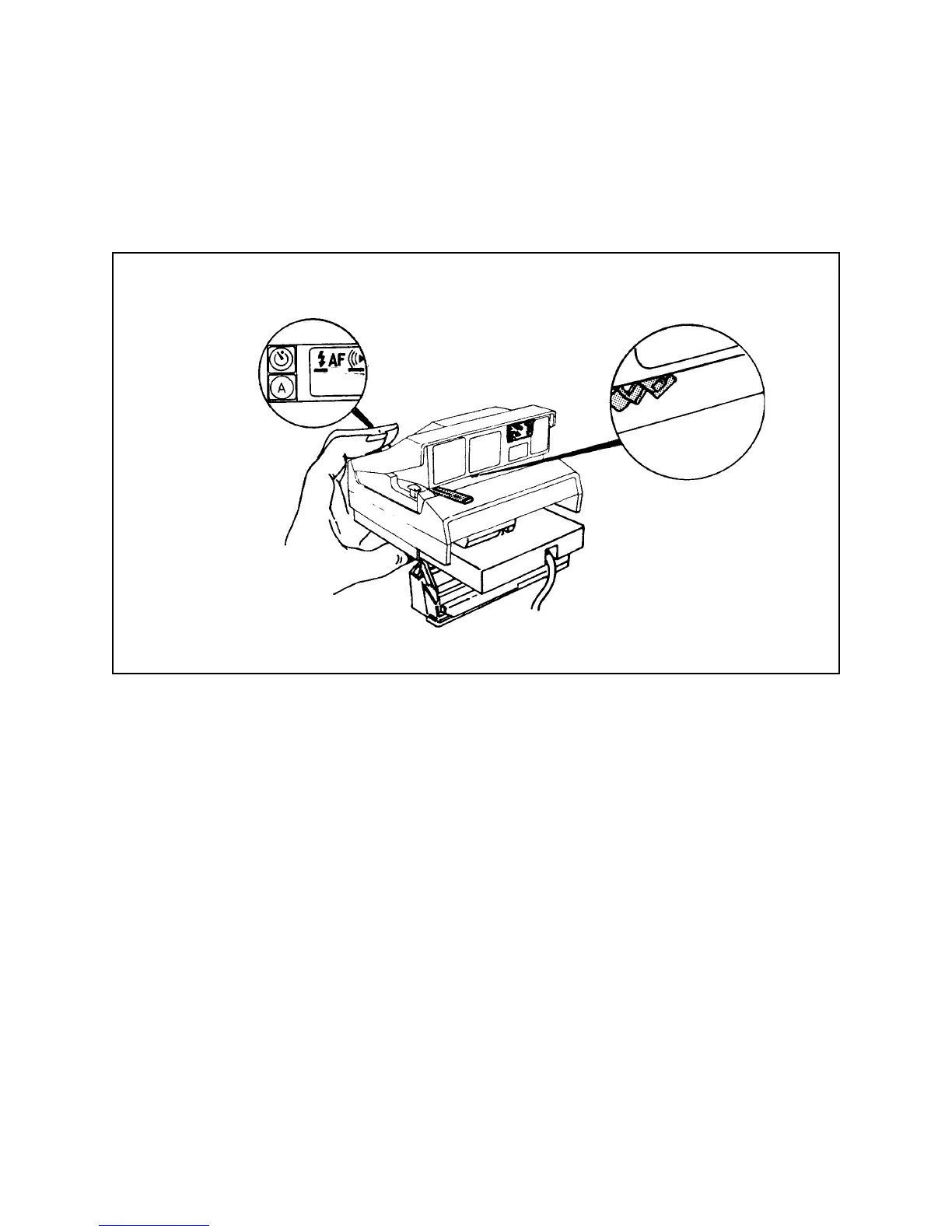

Figure 3-6. Quintic lens moves to infinity setting
16.Press the self-timer button. The following should happen:
• The warning tones (beep! beep! should sound. The tones should get
progressively faster until two seconds before the exposure when the tone
becomes steady.
• At the front of the shutter, the red led next to the photocells should flash. The
flashing will get progressively faster until two seconds before the exposure when
the led stays on.
• At the end of 12 seconds, the strobe will fire and the camera will cycle.
• The Frames Remaining number on the LCD control panel will change from “1”
to “0”.
• The end of pack chimes will ring three time.
AF switch in OFF setting
Quintic lens moves
down part way
