Removing One Board Strobe/Exposure Module Assembly
1. Remove the top cover, mid cover and bottom covers.
2. Disengage the S10/S1 assembly from the spring tab.
3. Push the S10/S1 assembly tab (Figure 2-11) to free it from the One Board
Strobe/Exposure Module Assembly.

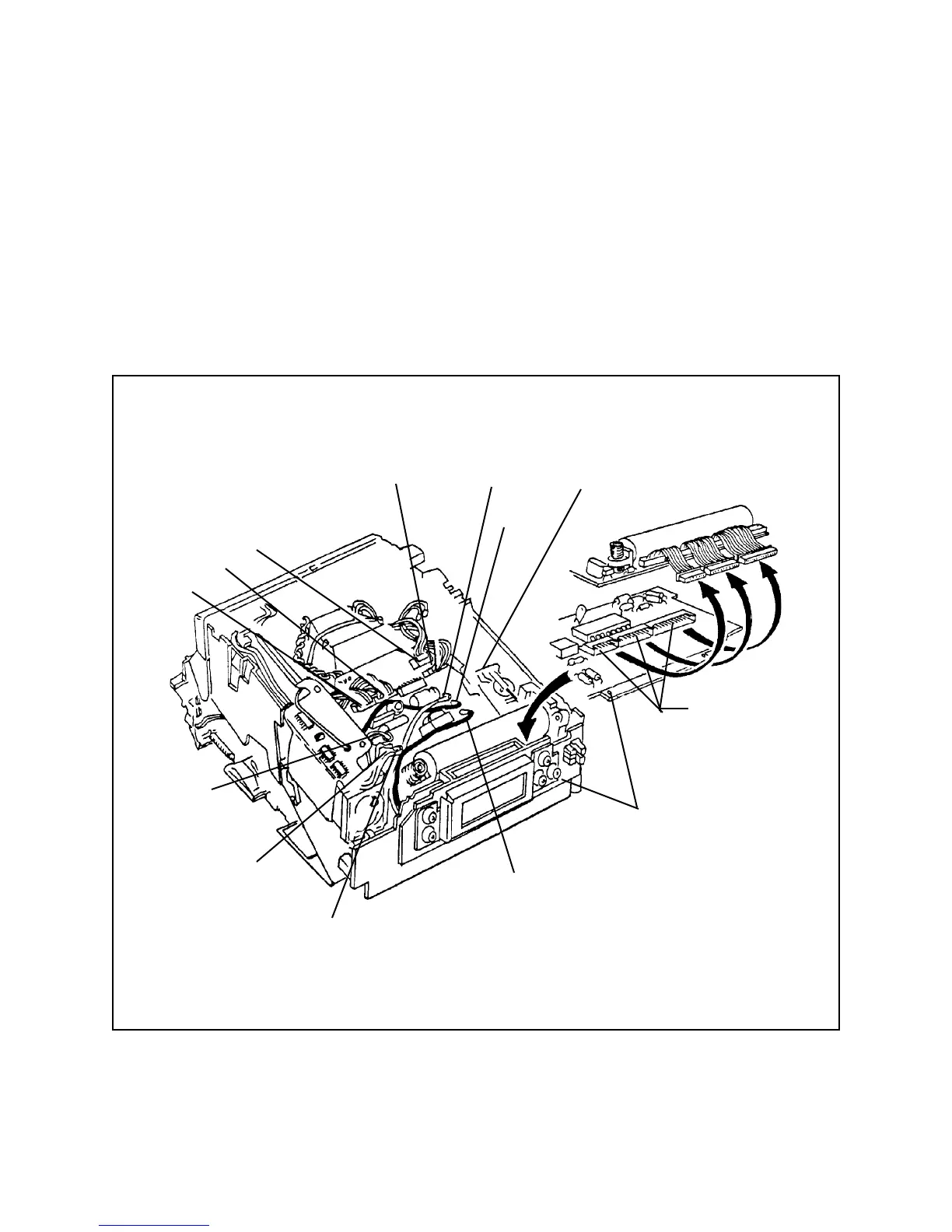

Figure 2-11. Disconnecting one board strobe exposure module
Red Wire
t0 J14
Push Tab
to Free
S1/S10
Assembly
J26
J9, J10, J11
(Lift One
Board/Strobe
Exposure
Module
to access)
Ranging
Board
J7
J6
J5
J4
Green Wire
to J17
White Wire
to Trigger
Coil (soldered)
Orange Wiew
to J16
Black Wire
to J15
