Polaroid Spectra/Image One Board - LCD Control Panel at Completion of Dark Slide

26
5. Install the film pack simulator into the camera again. The camera should go through a
dark slide cycle with the following events happening:
• The strobe should not fire.
• The camera shutter blades should remain closed.
• The strobe charging light (red) should come on and then go off.
• The strobe ready light (green) should come on. (The green ready light will stay on
for approximately 30 seconds and will then extinguish if the camera is not used.)
• The LCD control panel should appear as shown in Figure 3-3.

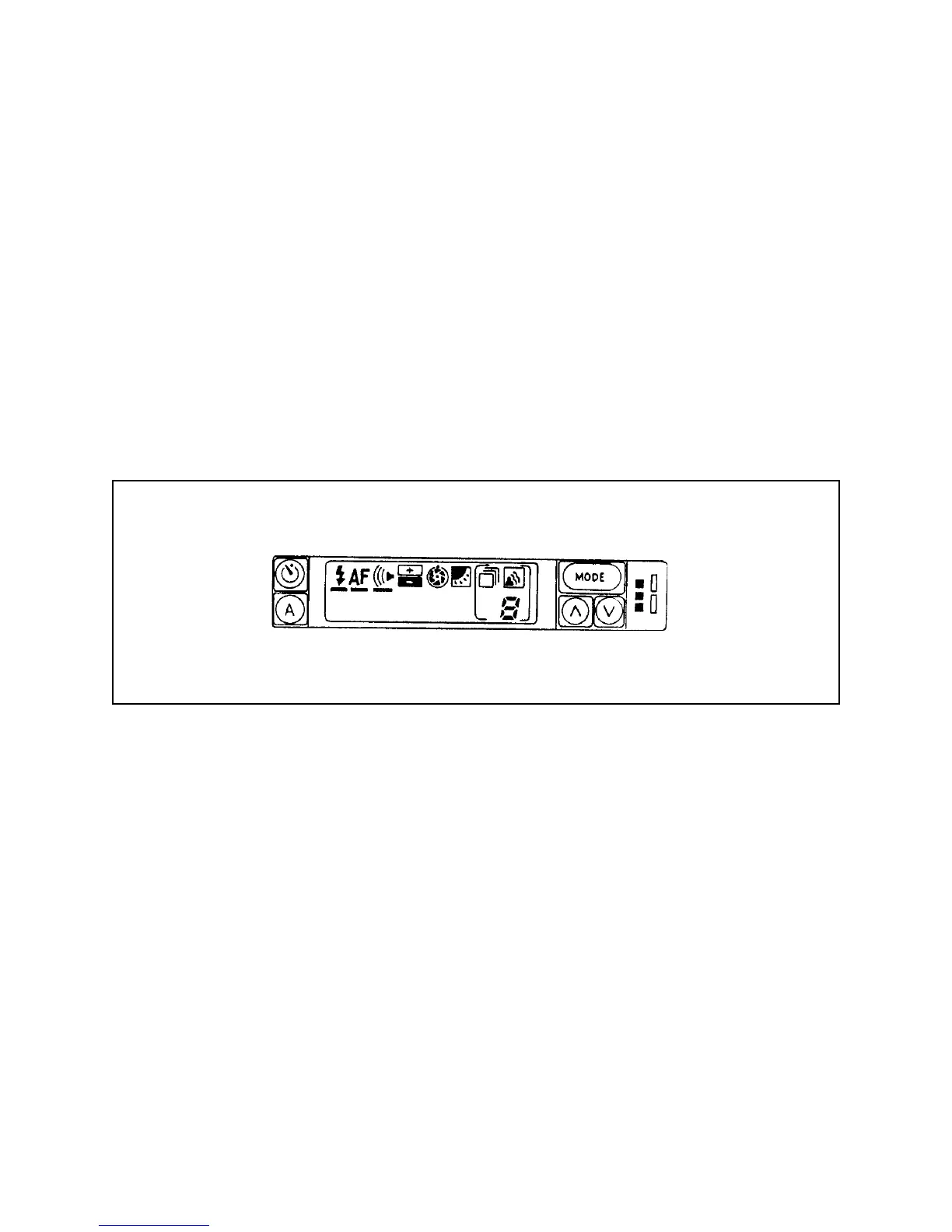

Figure 3-3. LCD control panel at completion of dark slide
6. Aim the camera at an object less than one foot (.1 meter) away and press the
S1/S10 button halfway down (preview mode). The following should happen:
• A warning tone (beep! beep!) will sound.
• A flashing yellow triangle within a yellow square will be visible in the viewfinder.
• A red figure “1” will be visible in the viewfinder (USA cameras)
-OR- a red ”.1” will be visible in the viewfinder (non-USA cameras).
• The LCD panel will display “1.0 FT (USA cameras) -OR- will display “.1M”
(non-USA cameras).
