THE ART OF WELDING
P6
18-92 PN-0509076 Rev. 16
2
1
3
4
5
6
Technical specifi cations of the P6 power 3. 3.
source
Basic design3. 3. 1.
The welding set contains the power source, all control
electronics and the torch cooling. All connections are
made on a connector panel situated at the front of
the power source.
The front panel also supports the printer and connec-
tions for the USB key and the RJ45 link for connect-
ing a PC.
There is a touchscreen mounted on top of the power
source for programming and monitoring of the weld
cycles.
The power source is fi tted with a 2-metre long power
supply cable.

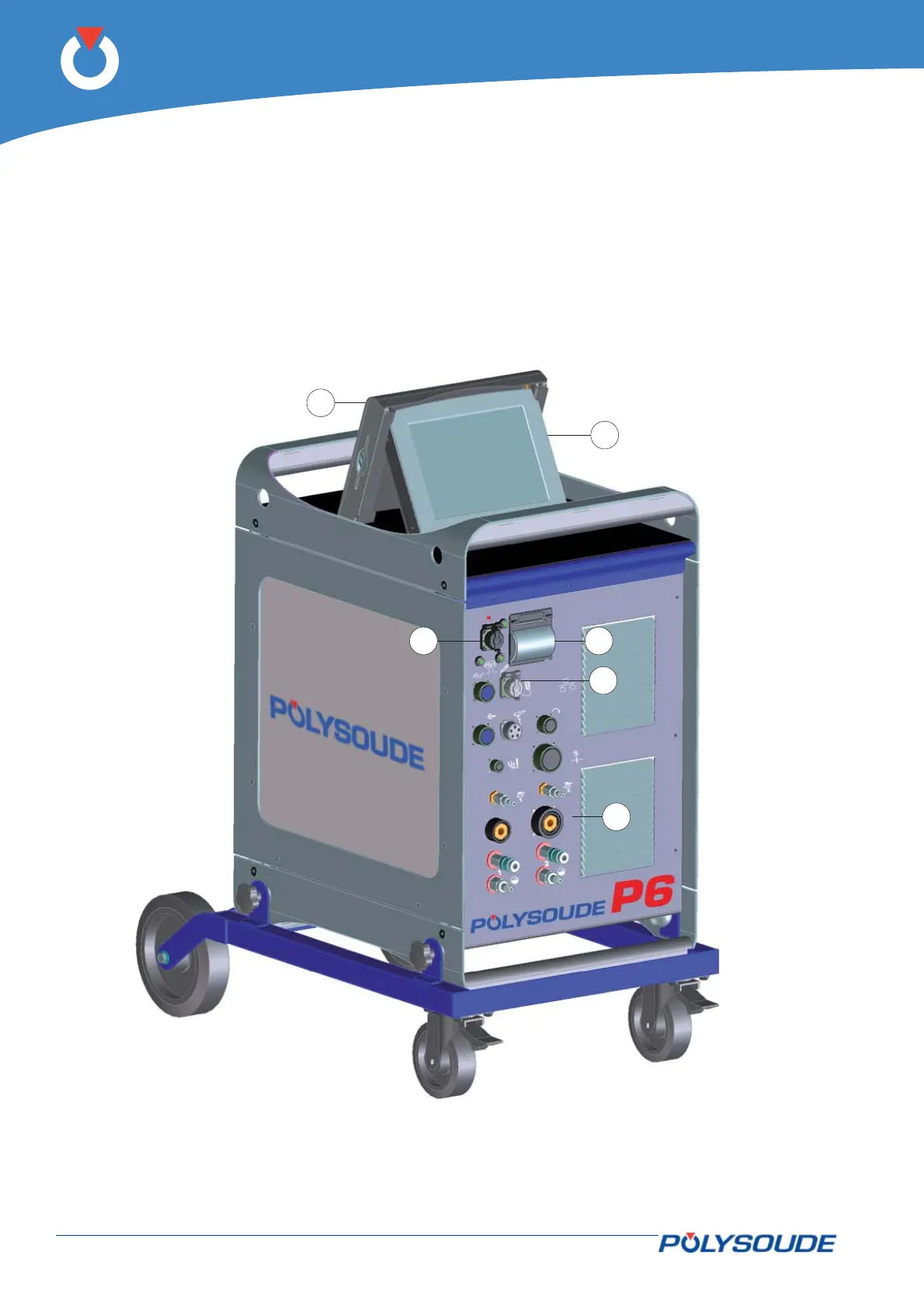

Fig. 3.11 - Description of P6 power source
1 Protection for programming screen 4 RJ45 connection
2 Screen and touchscreen (option) 5 USB connection
3 Printer (option) 6 Connection panel
