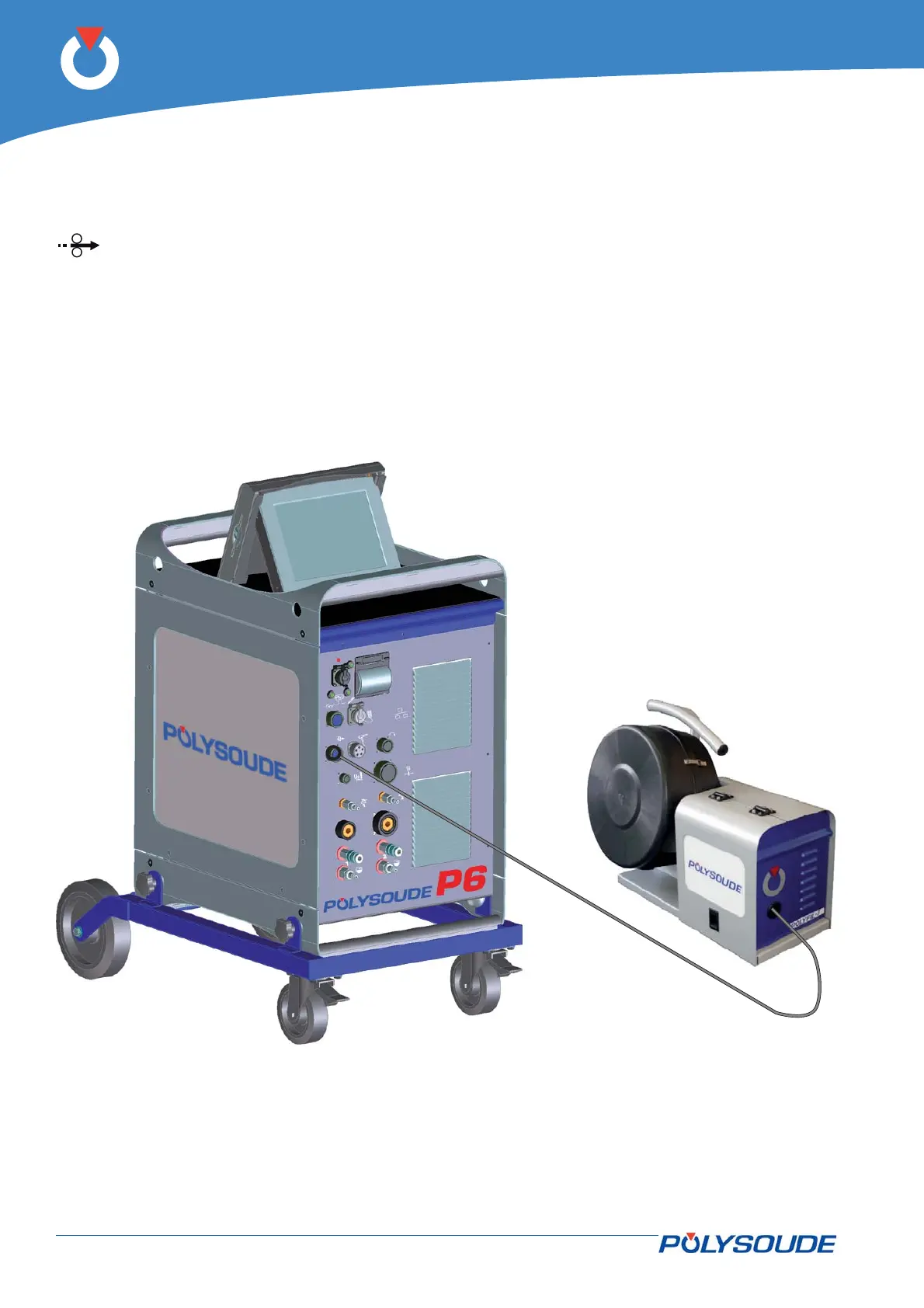

Fig. 4.14 - Connection of a wire feed unit
Connection of a wire feed unit4. 4. 7.
The wire feed unit is connected at the front connection panel of the P6 by a screw connector (symbol
). Make sure that the securing ring is properly tightened, otherwise the system may not function correct-
ly.
