Polysoude P6 - Rear Panel Connectors

THE ART OF WELDING
P6
46-92 PN-0509076 Rev. 16
FA 22
FA 20
FA 23
FA 1
FA 6
FA 8
FA 21

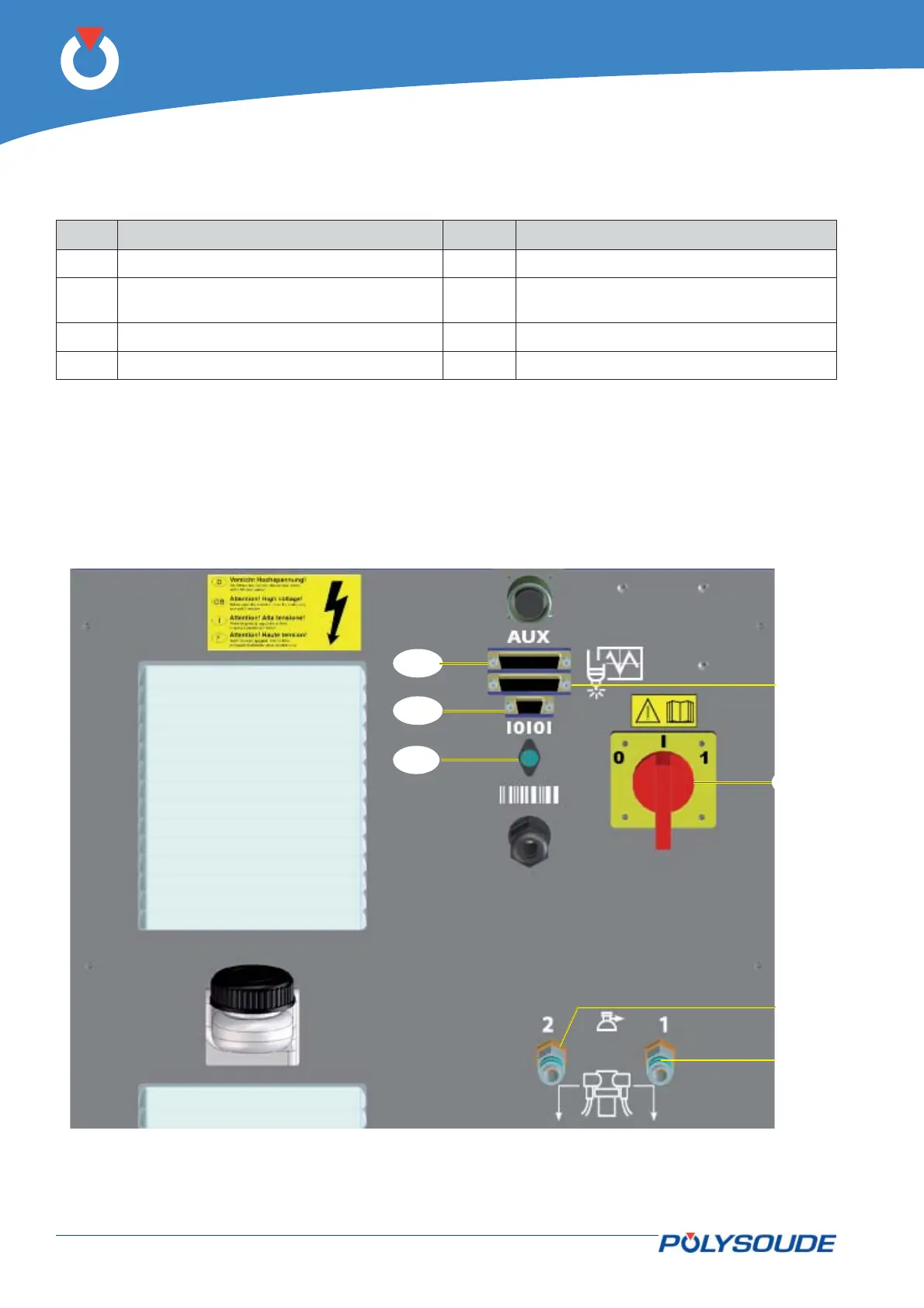

Rear connector panel4. 5. 2.
Item Designation Item Designation
FA 1 On/off switch. FA 21 Connection of the data acquisition unit..
FA 6 Connection of the second gas supply
(option).
FA 22 Serial connection RS232..
FA 8 Connection of the shielding gas supply. FA 23 Connection of a bar code reader.
FA 20 Connection of auxiliary equipment.
Fig. 4.24 - Rear connector panel
