THE ART OF WELDING
P6
38-92 PN-0509076 Rev. 16
FA 5
Connection of a manual torch with double command4. 4. 9.
Connection of the electrode current cable
Connect the current cable on the “-” terminal with the quick connector, locking it by rotation to the right.
Connection of the earth cable
Connect the earth cable to the “+” terminal surrounded by a red ring. Connection is made with a quick connec-
tor, with right hand locking. Connect the other end of the cable to the workpiece, as close as possible to the joint
to be welded, in an area free from grease and oxide.
Connection of the command cable
The command cable of the manual torch has to be joined to the socket FA 5 on the connector panel. Use the
adapter for manual torch 0023000901.
Connection of the cooling circuit (option)
Connection is made by 2 quick couplings on the front panel (symbols
and ).
Connection of the torch shielding gas
Connection is made with a quick push-pull coupling on the connector panel (symbol
1
).

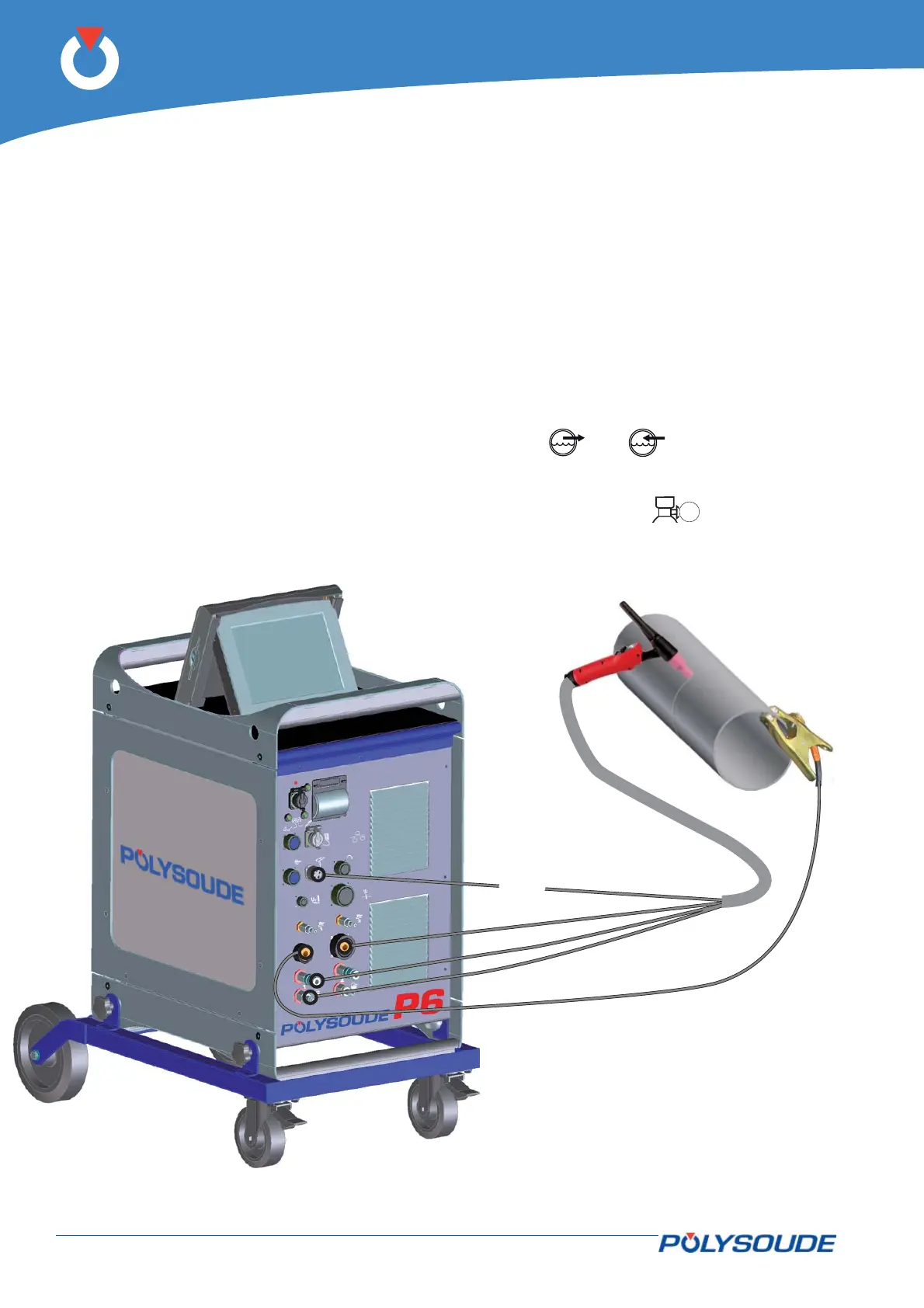

Fig. 4.16 - Connection of a manual torch
