Polysoude P6 - Quick Connector Gas Input; Using the Remote Control to Regulate the AVC

THE ART OF WELDING
P6
PN-0509076 Rev. 16 47-92
1
3
2

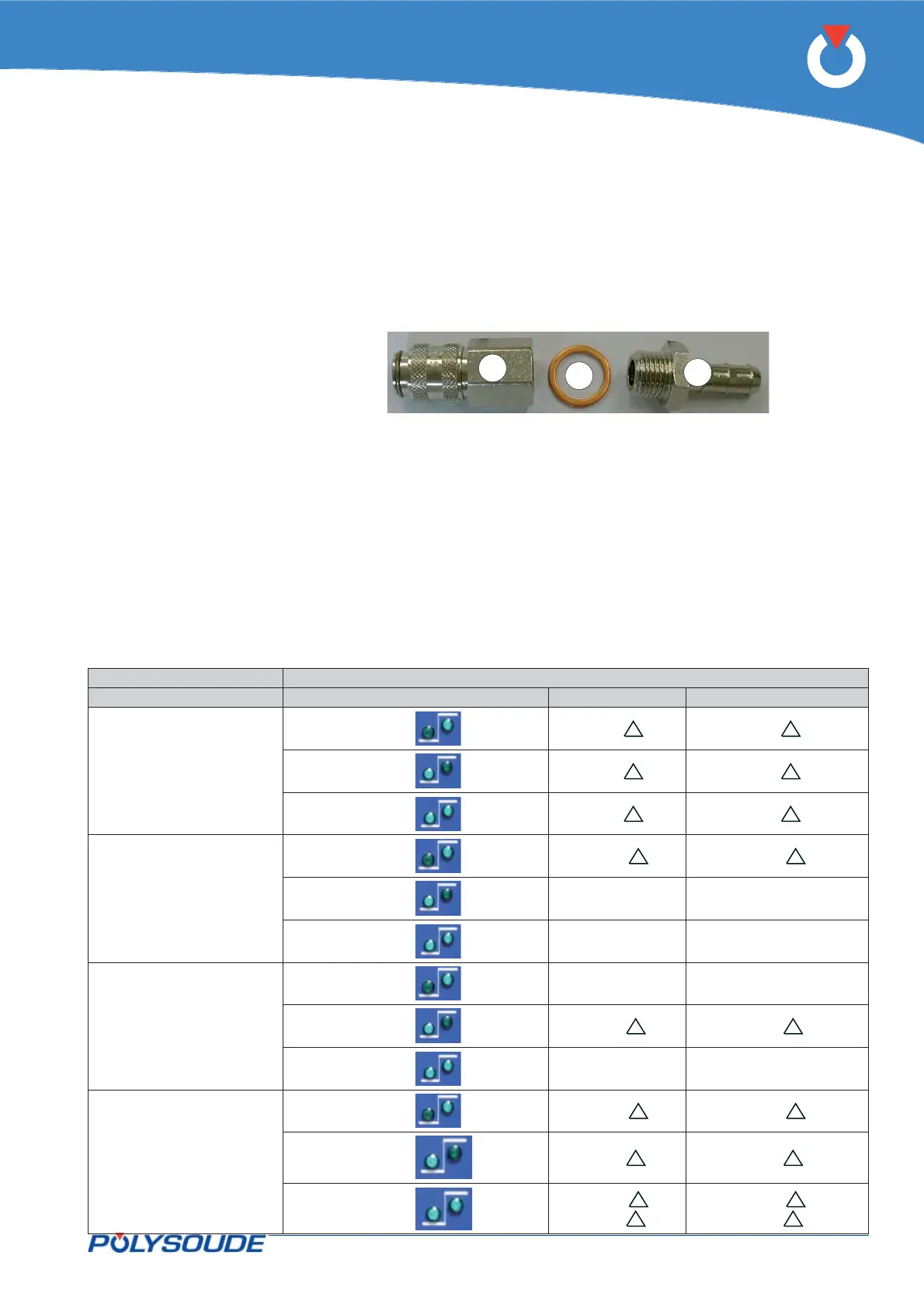

Quick connector gas input4. 5. 3.
Gas fi tting female - Part number 01514008 - Item 1.•
Ribbing bush - Part number 00692055 - Item 2.•
Copper seal 13.5x18x1.5. -No part number - Item 3.•
Fig. 4.25 - Quick connector gas input
Remote control units 6 axis 00261691014. 5. 4.
Using the remote control to regulate the AVC4. 5. 4. 1.
Remote control
Programmed regulation Override mode AVC + AVC -
Smooth voltage
High
U + U -
Low
U + U -
High and low
U + U -
High voltage
High
Uh + Uh -
Low --
High and low
--
Low voltage
High
--
Low
Ul + Ul -
High and low --
High and low voltage
High
Uh + Uh -
Low
Ul + Ul -
High and low
Uh +
Ul +
Uh -
Ul -
