L1 L2 L3
U1
U1 W1V1
AAA
ZZZ
BBBYYY
Up Us
Power source for connecting to 400/415 V
In your installation, you must provide «inductive load
fuse protection (motor rated) with a 16 A rating.
Multi-voltage power source
In your installation, you must provide «inductive load
fuse protection (motor rated). For the fuse rating
please refer to the I1rms current on the rating plate
as a function of the mains voltage.
Mains coupling
Before proceeding on any elec-
trical part, make sure the ma-
chine is not connected to the
electric supply and the voltage
corresponds to one of the values
mentioned in the table
For a P6 fi tted with the multi-voltage kit the trans-
former must be coupled up before the mains is
connected. The table in Fig. 4.3 gives the position of
the coupling links as a function of the mains voltage.
The power sources are coupled up for 480V when
they leave the factory.
In order to connect the transformer, open the access
hatch at the rear of the multi-voltage module in the
bottom area of the power source.

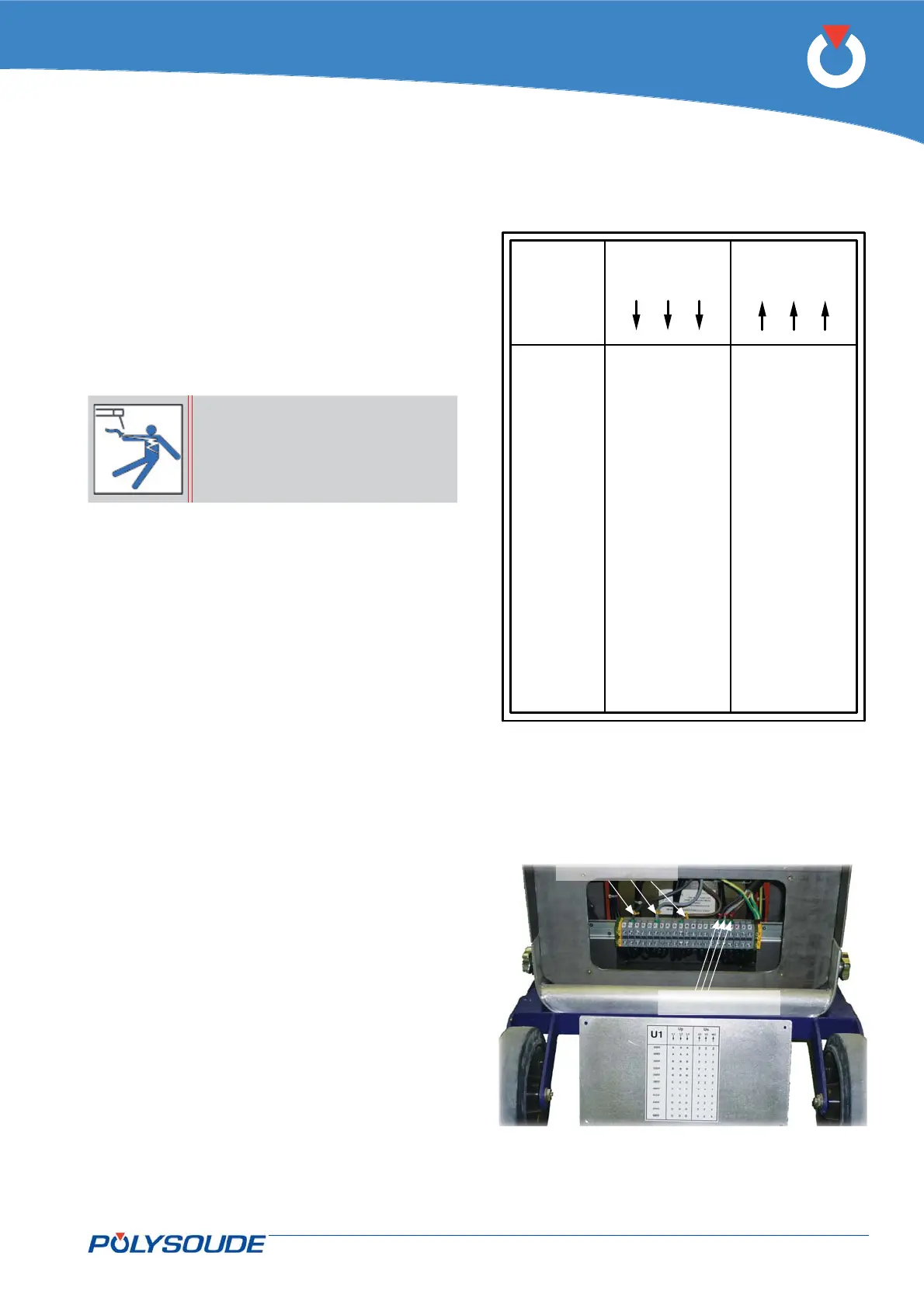

Fig. 4.3 - Transformer coupling
Fig. 4.4 - Layout of coupling terminal block
Up connections
Us connections
