Polysoude P6 - Liquid Cooled Head with Integrated Commands Connection

THE ART OF WELDING
P6
PN-0509076 Rev. 16 35-92
Connection of a liquid cooled closed chamber welding head with integrated command buttons (MW 4. 4. 6.
40-3, 65-3, 115-3, 170)
Connection of the electrode current cable
Connect the current cable with the quick connector to the "-" terminal, locking it by a short rotation to the right.
This terminal is not marked by a colour.
Connection of the earth cable
Connect the earth cable to the “+” terminal on the connector panel. The terminal is surrounded by a red ring.
The connection is made with a quick connector, locked by rotation to the right. The cable end is marked red.
Connection of the rotation motor cable
Connection is made at the front of the P6 at connector (symbol
). Make sure that the securing ring is
properly tightened, otherwise the system may not function correctly.
Connection of the manual command cable of the type MW heads
Join the manual command cable to the connector FA 5 on the connection panel of the power source with
connection ref 0023000901..
Connection of the cooling circuit
The connection is made with 2 quick couplings on the front connector panel (symbols
and ).
Connection of the torch shielding gas
The connection is made with a quick push-pull coupling on the connector panel (symbol
).
Connection of the integrated commands
A connection kit is arranged on the supply from head to power source.

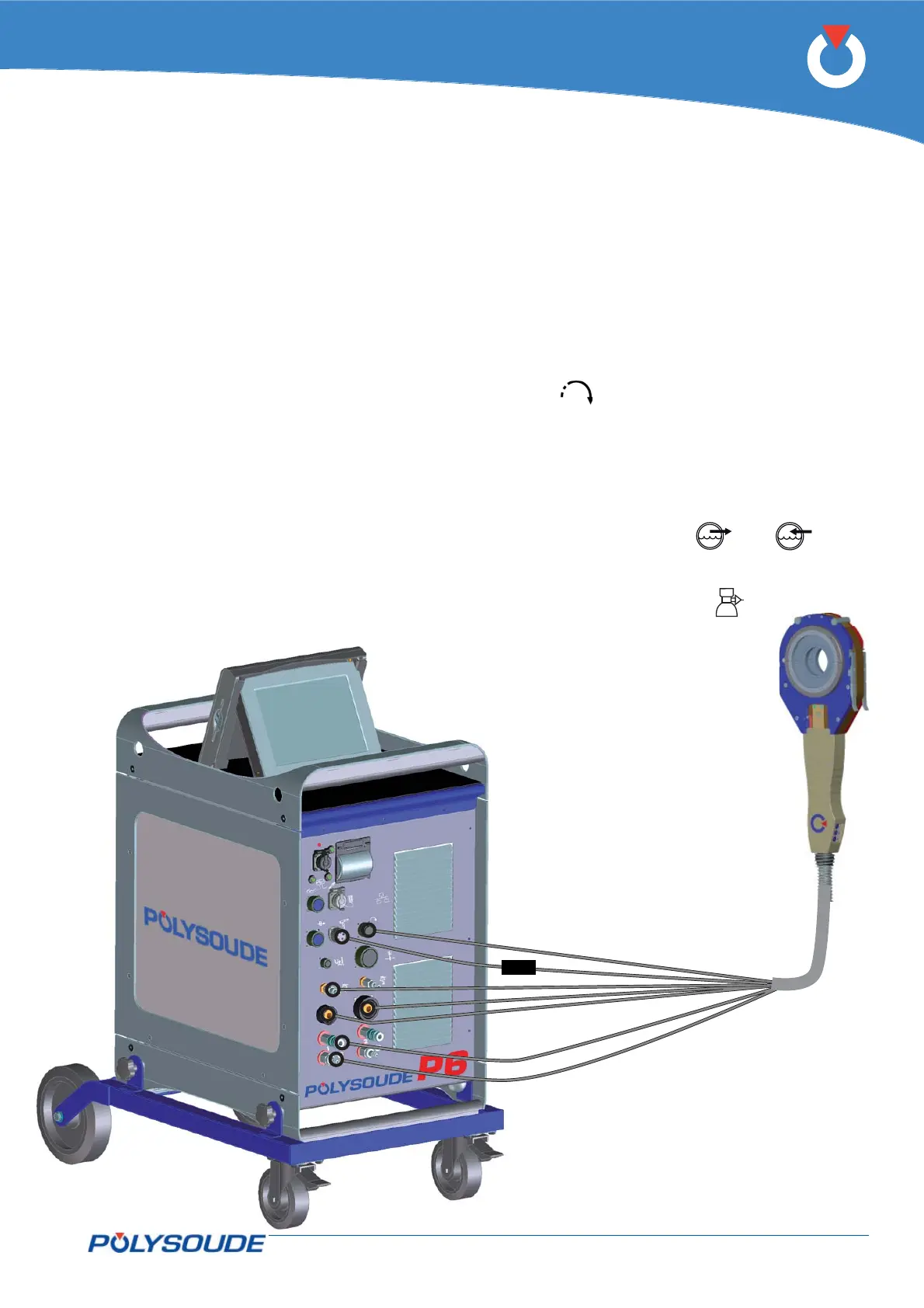

Fig. 4.13 - Connection of a liquid cooled closed
chamber welding head with integrated
command buttons
