THE ART OF WELDING
P6
22-92 PN-0509076 Rev. 16
44316 NANTES CEDEX 3 FRANCE
N°:
EN 60974-1
Made in France
Z.I. DU BOIS BRIAND 2 rue P.BEAUPERE
EN 60974-10
X
U
U1
I1 max I1 e
I
60%
240A
19.6V
100%
2
2
5A / 10,2V - 300A / 22V
TYPE:
P6
f1
f2
3~
50/60Hz
3 ~
P 1l/min = 0,5 kW
U
0
= 98V
IP 23S
P max = 0,5 MPa
25A41.2A200V
36.0A
21.8A
20.0A
18.0A
39.6A
240V
400V
220V
440V
480V
18.8A
460V
17.2A
415V
380V
230V
208V
34.4A
20.6A
37.5A
11.5A
10.5A
11A
21A
13A
12A
13.5A
23A
22A
24A
300A
22V
Installation4. 2.
Handling4. 2. 1.
To move the P6 power source use the handles provid-
ed.
Never pull on any cables or pipework. If moving
using a fork-lift truck take care to ensure stability.
For lifting, the slings must be attached at the four
holes in the upper arch so as to distribute the load
evenly with a maximum angle of 15° with respect to
the vertical.
Placing in position4. 2. 2.
Make sure that the system is placed fl at, on a stable
surface.
If the equipment is used on a slope, take care to
ensure that the power source does not topple over.
Openings are provided for ventilation of the power
source. When installing it allow a minimum distance
of 30 cm between these openings and any surface.
The power source is designed to protection class
IP23S; it can be stored outside but must not be used
without protection during precipitation.
Connection to mains electricity supply4. 2. 3.
All connections must be made by
a qualifi ed technician in accor-
dance with the safety instructions
quoted in the safety chapter.
General
The P6 power source is connected to the mains power
supply with a cable containing 3 conductors + earth.
A 3.5 m long cable is provided for this purpose. It is
essential to connect the earth conductor in order to
ensure the safety of the operators.
Refer to the power source rating plate for the
currents consumed for different mains voltages. For
example, for a 400 V mains supply a 16 A protec-
tion is required.
To ensure safety of operators,
the protective (earth) conductor
must be connected.

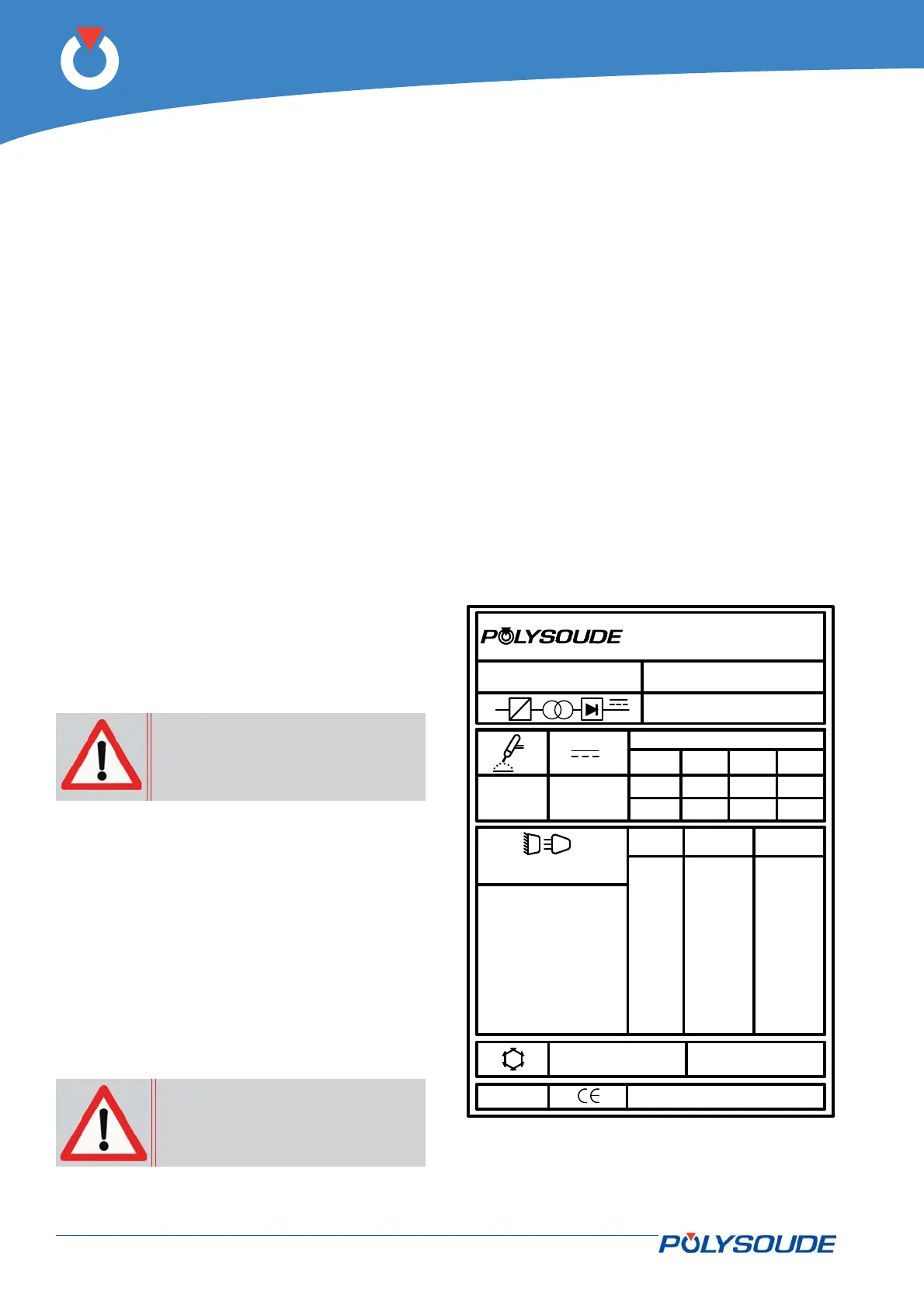

Fig. 4.2 - Rating plate of the P6 power source
Note: The operating company is responsible for the
installation and the use of the arc welding equip-
ment conform to the manufacturer’s instructions. If
electromagnetic interference occurs, the operating
company must solve the problem with the support of
the manufacturer (extract of the standard EN 60974-
10 2008 – annex A).
