Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
N
6of8
013004

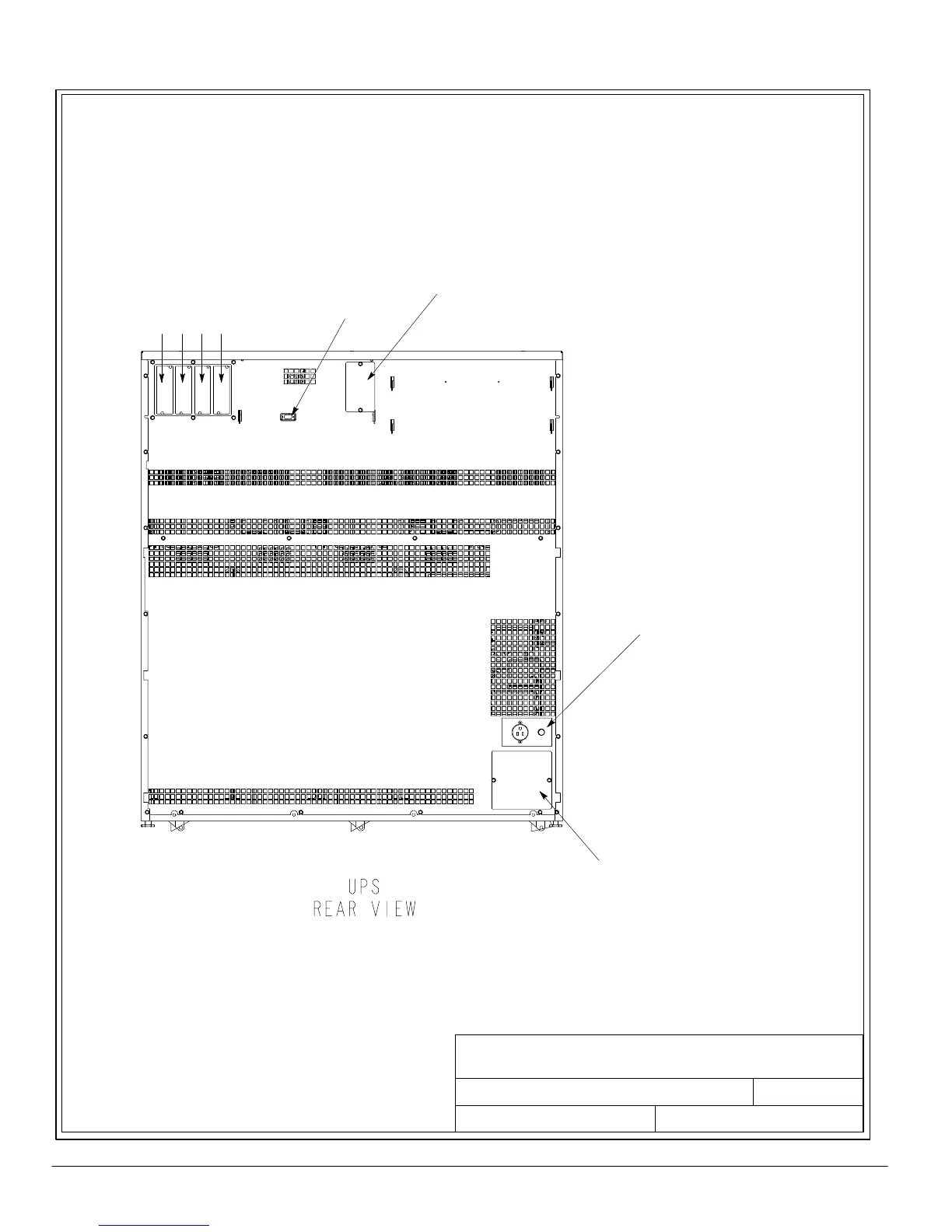

LOCATION OF UPS CABINET TERMINALS
164201300---9
UPS CABINET CUSTOMER INTERFACE TERMINALS
POWERWARE 9330 (25 kVA-- 40 kVA)
X1 X2 X3 X4
CUSTOMER INTERFACE
ACCESS PANEL
SERIAL PORT
CUSTOMER
CONVENIENCE
OUTLET FOR MODEM
120V AC, 0.2 AMP
REAR ENTRY CONDUIT
LANDING FOR AC INPUT AND
OUTPUT AND REMOTE
BA TTERY CONNECTIONS
(REMOVE PANEL TO DRILL
OR PUNCH CONDUIT
HOLES.)
X-SLOT
COMMUNICATIONS
BAY
