Powerware 9330 - Front View

A --- 5 0
Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
J
1of5
101502
164201300---8

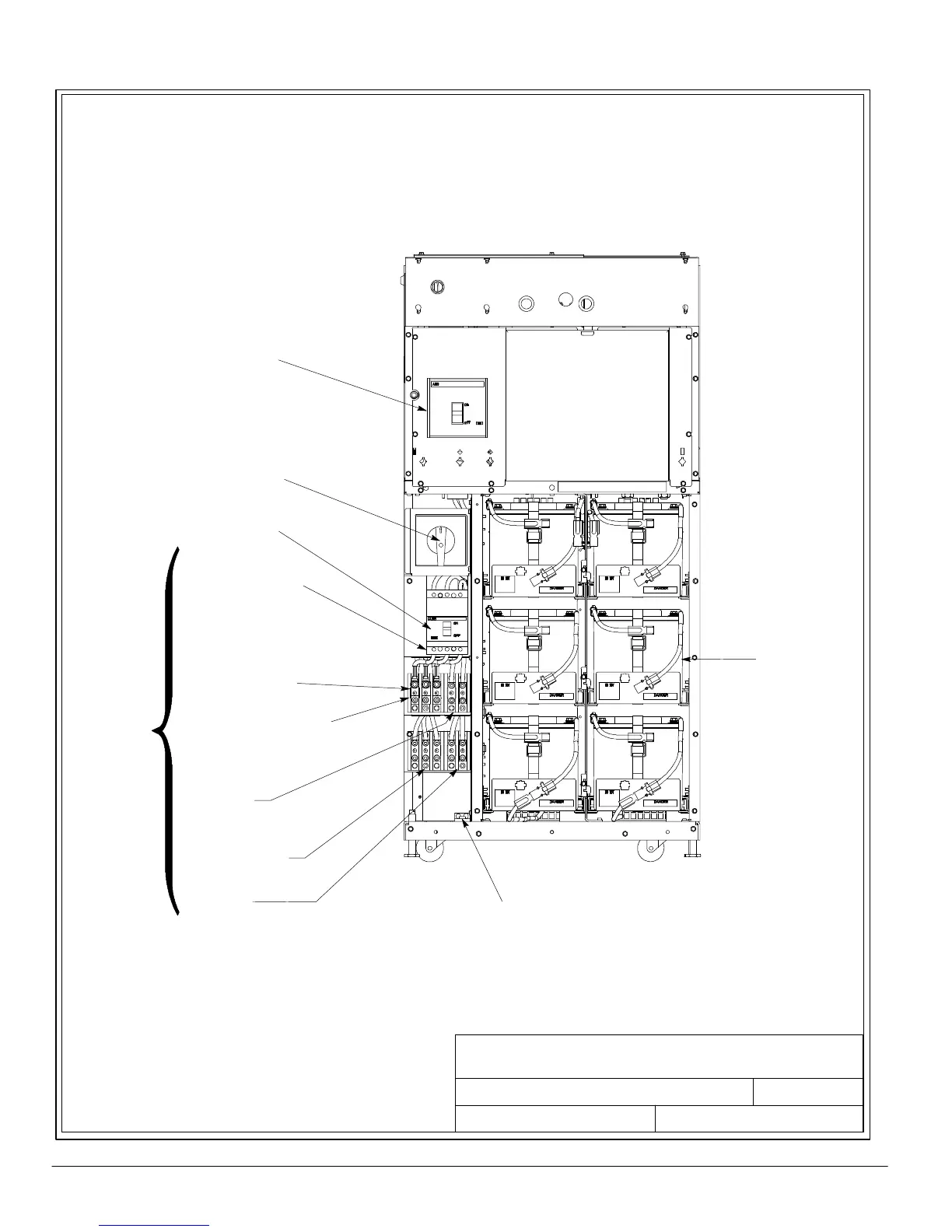

UPS CABINET POWER TERMINALS
LOCATION OF UPS CABINET TERMINALS
FRONT VI E W
NOTE: METAL SHIELD COVERING POWER
WIRING TERMINALS AND BAT TERY
COMPARTMENTMUSTBEREMOVED
TO GAIN ACCESS TO WIRING
TERMINALS.
BATTERY
BREAKER CB2
INPUT
BREAKER CB1
MAINTENANCE BYPASS
SWITCH (MBS)
INTERNAL
BATTERIES
GROUND TERMINALS
AC INPUT TO UPS
RECTIFIER (CB1)
(DUAL INPUT)
(A,B,C)
AC INPUT TO UPS RECTIFIER
AND BYPASS
(SINGLE INPUT)
(A,B,C)
AC INPUT TO BYPAS S
(DUAL INPUT)
(A,B,C)
AC OUTPUT TO
CRITICAL LOAD
(A,B,C)
SEE
SHEET 2
FOR
DETAILS
POWERWARE 9330 (10 kVA-- 20 kVA)
REMOTE
BATTERY
INPUT
NEUTRAL
