Powerware 9330 - Unit Meter Screens

9-- 6
Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
9.3.3 Unit Meter Screens
The Unit Meter screens show the UPS readings for a single unit.
Select METERS from the Main menu to display the Unit Meter screens. Figures
9---7 through 9---11 show the Unit Meter screens.
To scroll through the meter screens, select the
or pushbuttons from the
display menu. The current UPS readings are displayed in the information area of
the screen.

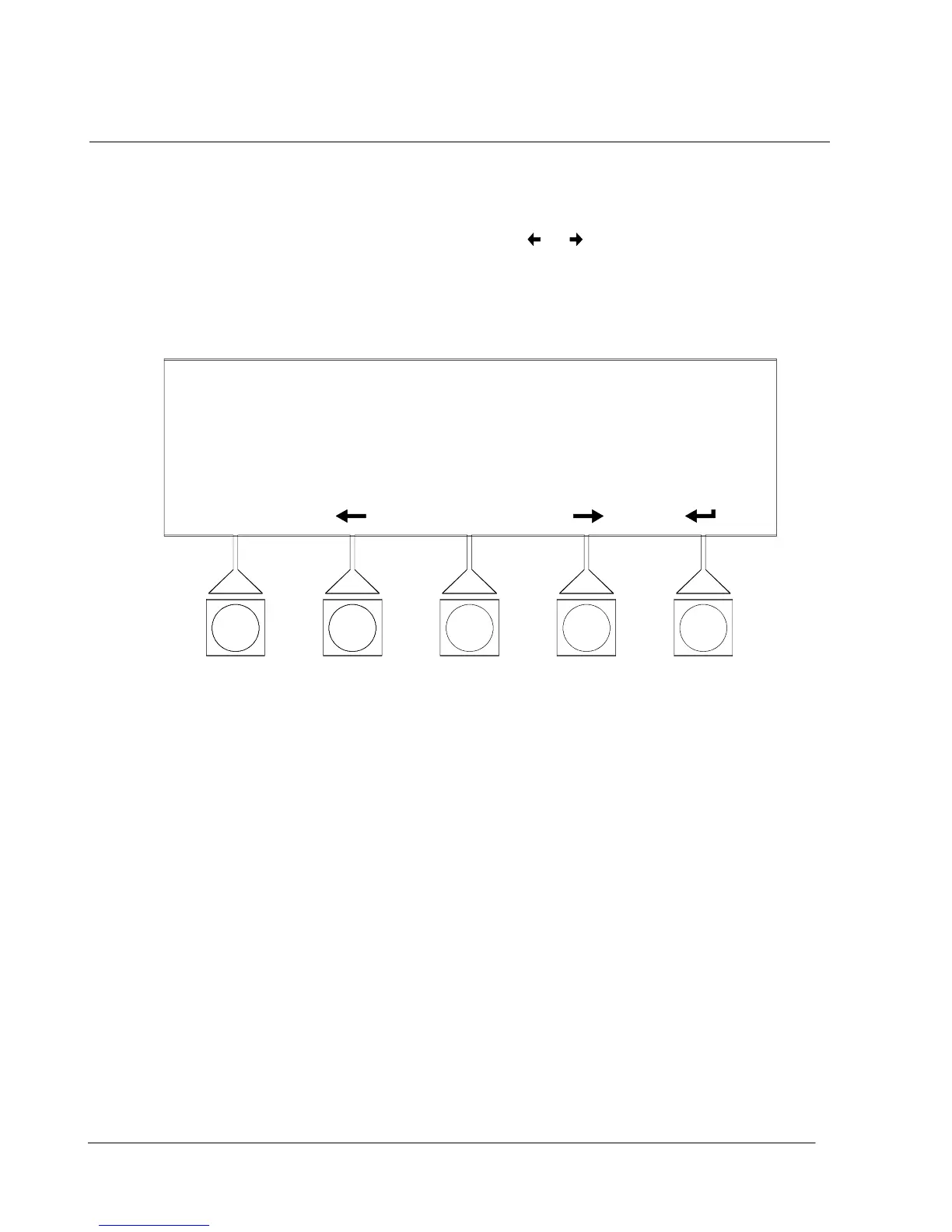

The Input screen shows the phase-to-phase voltage, phase current, and frequency,
of the incoming utility, followed by the KVA, KW, and power factor measurements.
INPUT
VAB
VBC VCA
KVA KW PF
IA IB IC
***
*** *** ***
******
*** ******
FREQ
***
SYSTEM
Figure 9 ---7. Input Meter Screen
