Powerware 9330 - Page 225

A --- 5 1
Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
K
2of5
021503

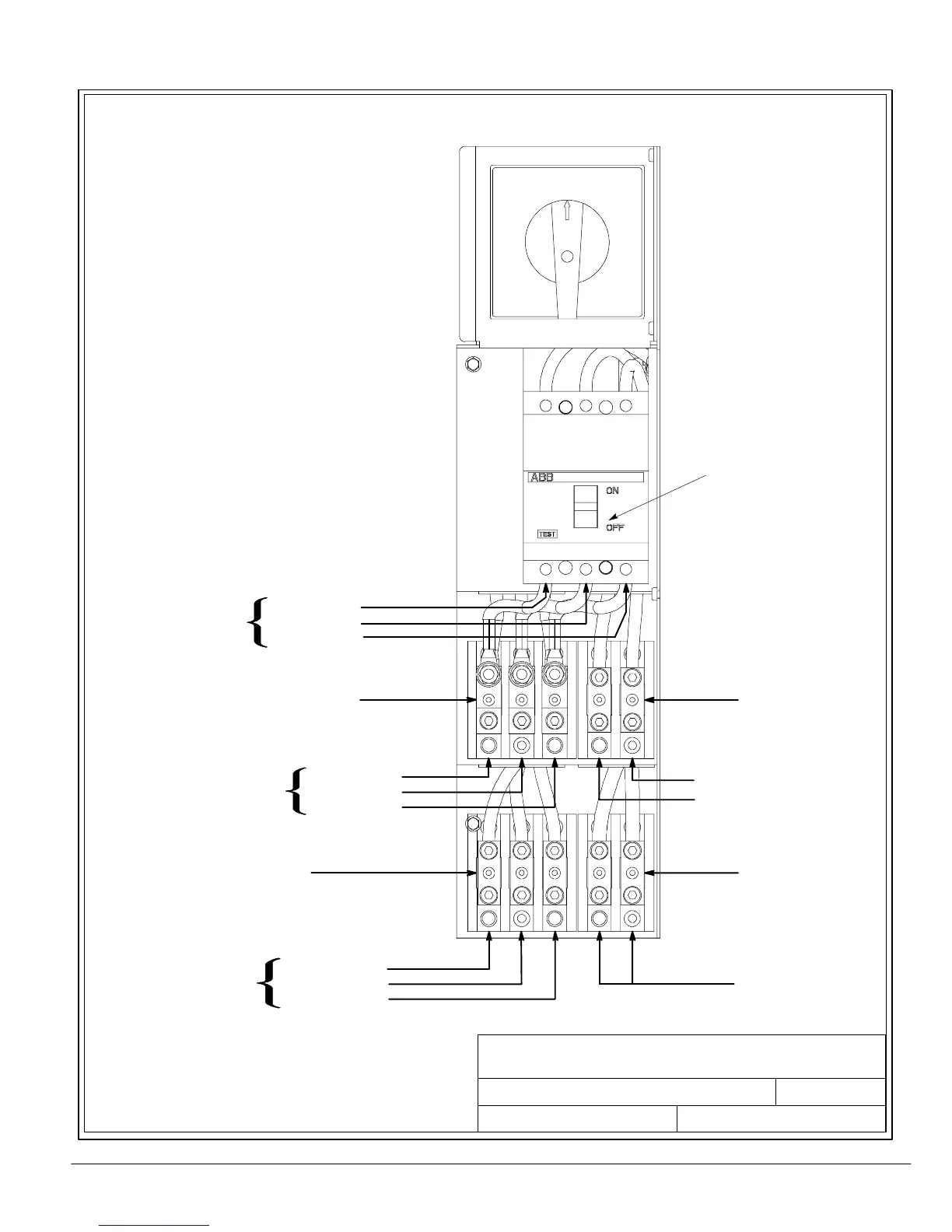

UPS CABINET POWER TERMINALS
LOCATION OF UPS CABINET TERMINALS
FRONT VIE W DETAIL
INPUT
BREAKER CB1
AC INPUT TO UPS
RECTIFIER (CB1)
(DUAL INPUT)
AC INPUT TO UPS
RECTIFIER AND BYPASS
(SINGLE INPUT)
AC INPUT TO BYPAS S
(DUAL INPUT)
AC OUTPUT TO
CRITICAL LOAD
PHASE A (E1)
PHASE A (E6)
PHASE B (E7)
PHASE B (E2
PHASE A
PHASE B
PHASE C
PHASE C (E3)
NEUTRAL (E12)
PHASE C (E8)
164201300---8
POWERWARE 9330 (10 kVA-- 20 kVA)
---
+
DC INPUT FROM
REMOTE BATTERY
NOTE: REMOVE JUMPERS BETWEEN CB1 AND
TERMINAL BLOCK FOR DUAL INPUT.
BYP ASS INPUT
TERMINAL BLOCK
OUTPUT
TERMINAL
BLOCK
REMOTE BATTERY
TERMINAL BLOCK
NEUTRAL
TERMINAL
BLOCK
(E5)
(E4)
(E9)
(E10)
(E11)
