Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
J
3of5
101502

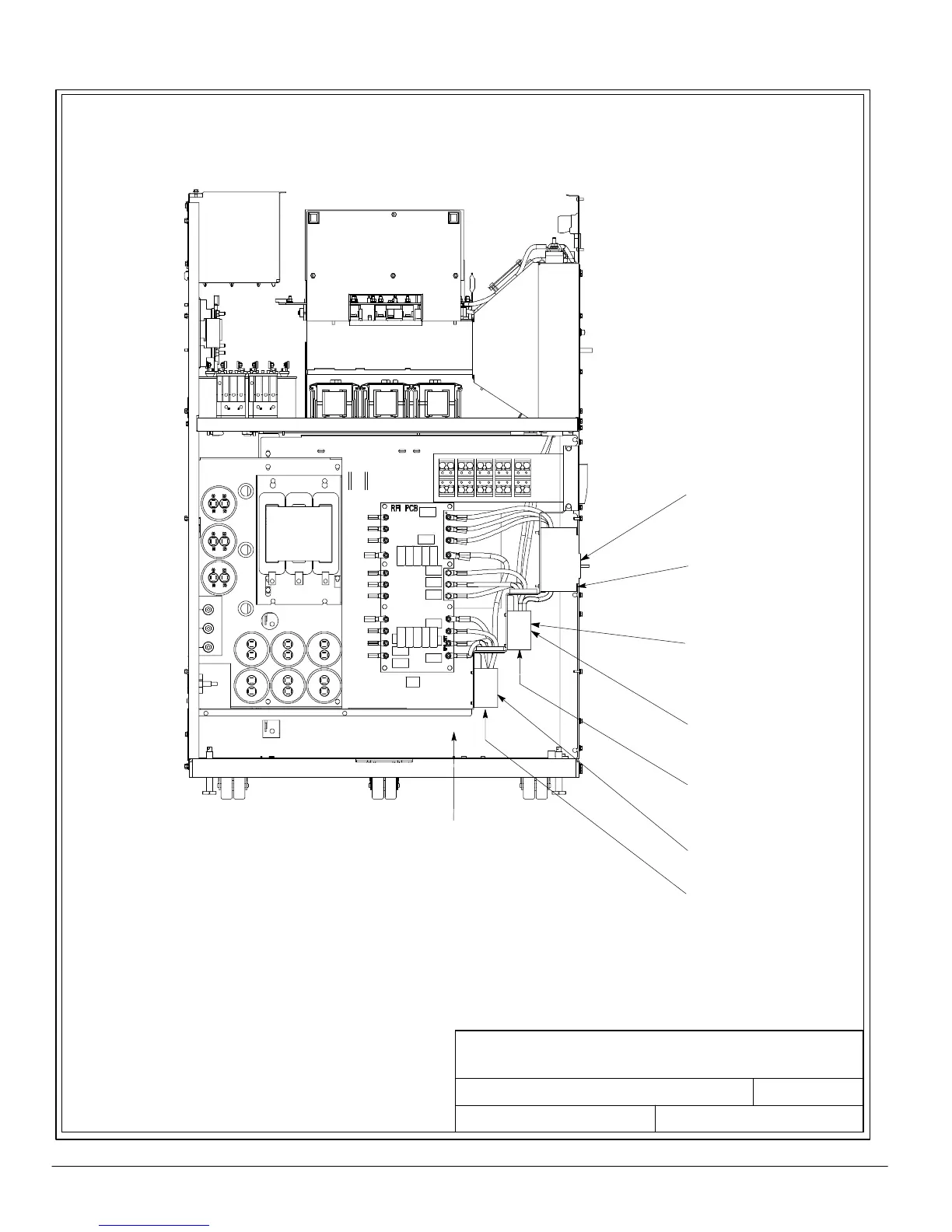

UPS CABINET POWER TERMINALS
LOCATION OF UPS CABINET TERMINALS
LEFT VIEW
INPUT
BREAKER CB1
AC INPUT TO UPS
RECTIFIER AND BYPASS
(SINGLE INPUT)
(A,B,C)
AC INPUT TO UPS
RECTIFIER (CB1)
(DUAL INPUT)
(A,B,C)
AC INPUT TO BYPAS S
(DUAL INPUT)
(A,B,C)
AC OUTPUT TO
CRITICAL LOAD
(A,B,C)
164201300---8
POWERWARE 9330 (10 kVA-- 20 kVA)
WIREWAY
POWER WIRING
REMOTE
BATTERY
INPUT
NEUTRAL
