Powerware 9330 - Page 241

A --- 6 7
Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
D
5of6
053001

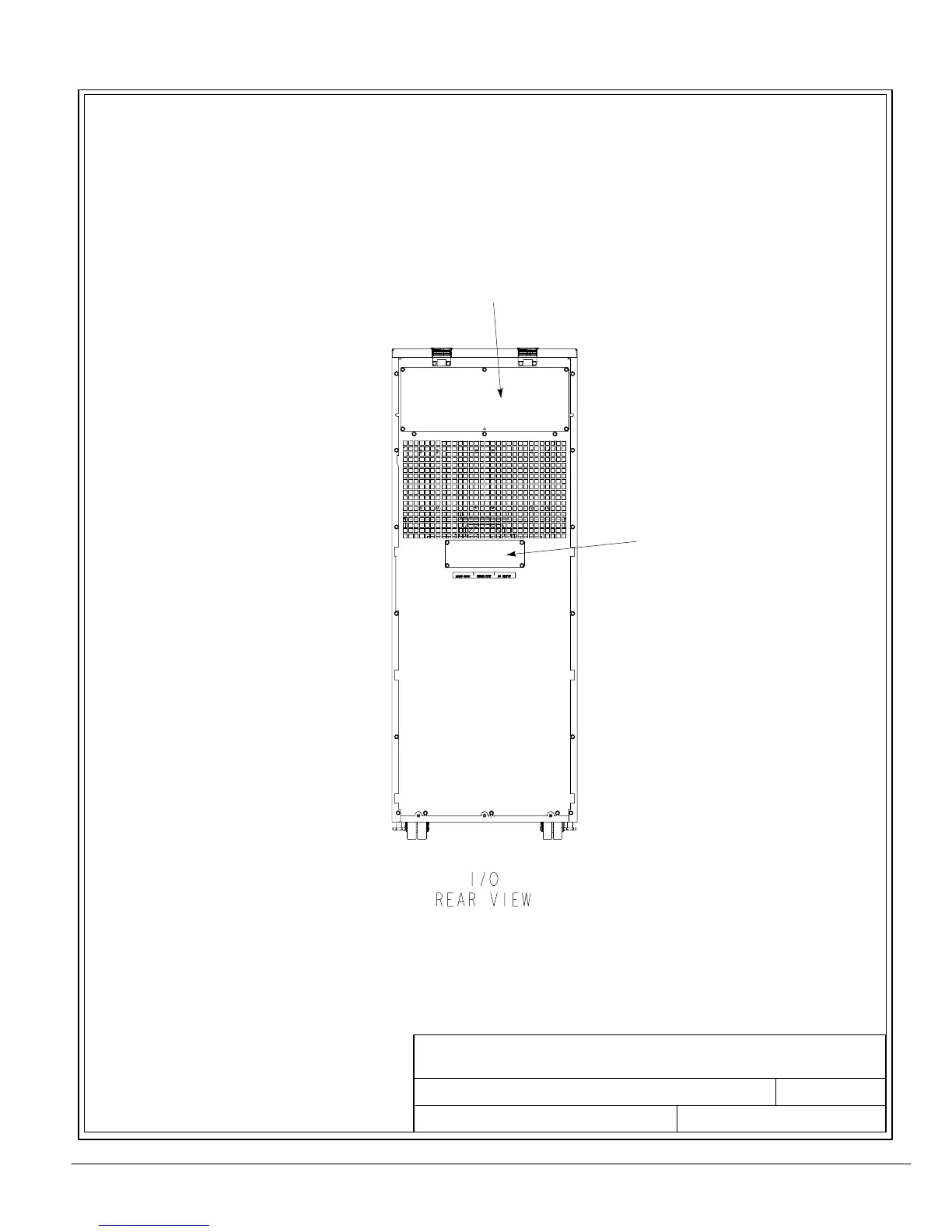

CONDUIT ENTRY AREA FOR
OUTPUT FROM OPTIONAL
DISTRIBUTION PANEL
(REMOVE PANEL TO DRILL OR
PUNCH CONDUIT HOLES.)
OPTIONS CABINET
POWERWARE 9330 (10 kVA-- 20 kVA)
164201300---10
LOCATION OF OPTIONS CABINET TERMNALS
REAR ENTRY CONDUIT
LANDING FOR AC INPUT AND
OUTPUT CONNECTIONS
(REMOVE PANEL TO DRILL
OR PUNCH CONDUIT
HOLES.)
