Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 Rev . N 013004
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVI SION:
G
2of2
051502

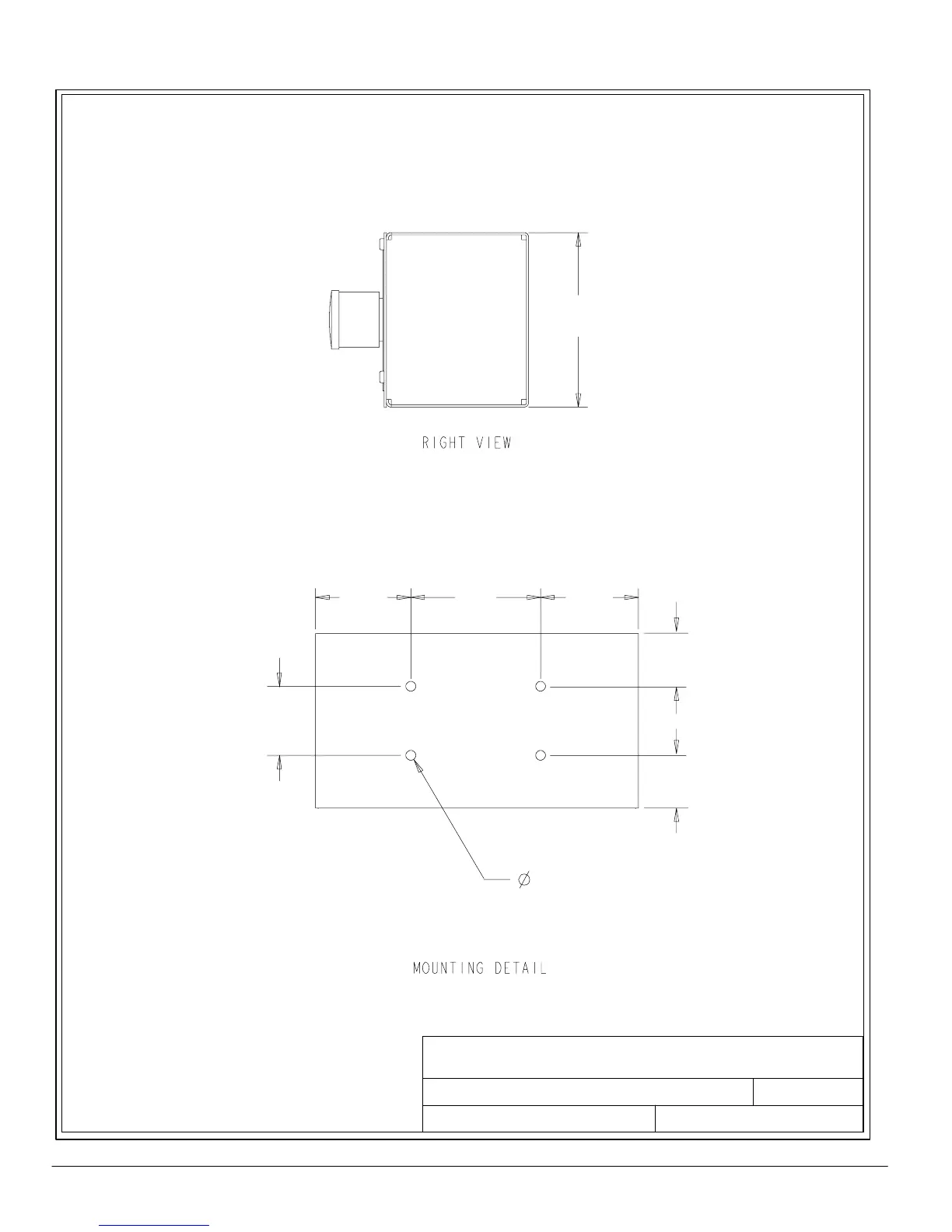

REMOTE EMERGENCY POWER OFF
DIMENSIONS
164201300---18
122.3
[4.8]
68.5
[2.7]
91
[3.6]
36.9
[1.5]
48.5
[1.9]
7
[0.275]
Dimensions are in millimeters and [inches]
68.5
[2.7]
36.9
[1.5]
MOUNTING HOLES
NOTE: Interface wiring and conduit between
theRemoteEmergencyPowerOff
switch and the UPS are to be
supplied by the customer.
(4 PLACES)
