8. Remove the Yoke Assembly from the jackscrew and retain. The Yoke Assembly will be
needed for the replacement assembly.
Installation Instructions
1. Lay the replacement Lift Motor on the floor in front of the elliptical and connect the input
power/control cable.
2. .Access the diagnostic CROSS RAMP (select Pause key > type 51765761 > select
MACHINE TEST > CROSSRAMP TEST) and set the ramp level to 10. The jackscrew
must remain at this position during the remainder of this procedure.
3. Disconnect the input power/control cable.
4. During the Yoke installation process, do not allow the jackscrew to rotate (need to main-
tain the level 10 incline position). Hold the jackscrew in position with one hand while
Installing the Yoke Assembly onto the jackscrew with the other. Place the Yoke onto the
jackscrew with the ramp bolt fastener threads on the bottom (closest to the Lift Motor).
Adjust the Yoke Assembly so that the distance from the top of the jackscrew to the top of
the yoke nut is 9 in.
Final Lift Motor Installation Calibration Adjustment:
The Yoke may need to be slightly rotated during installation to correctly align the ramp-
yoke mounting holes causing the calibration distance to slightly change. If this occurs,
determine the best Yoke position by rotating the yoke in either the clockwise or counter-
clockwise directions using the position that provides the closest distance to the 9 in spe-
Experience Series 800 Line EFX
102
5 Replacement Procedures

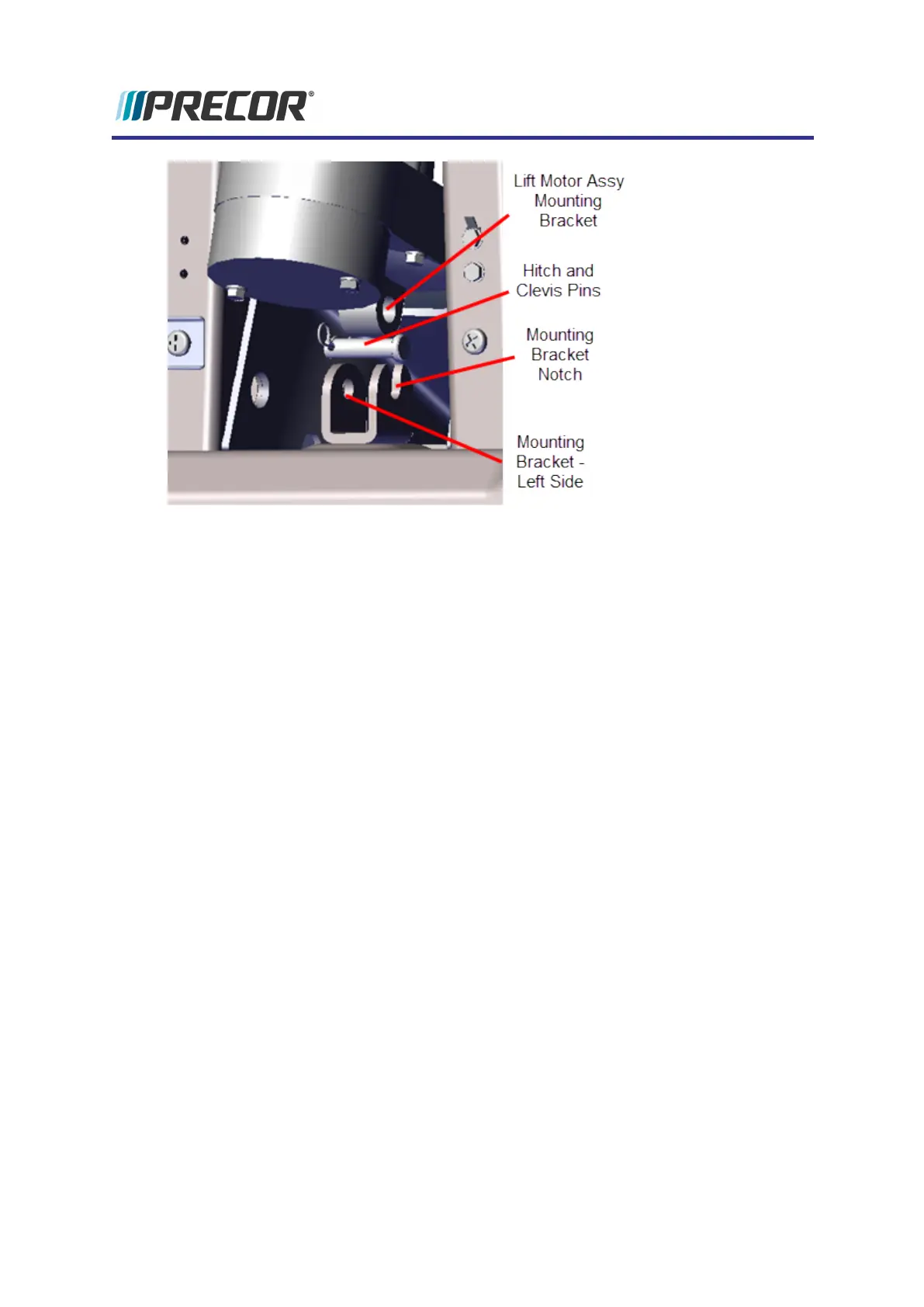

Lift Motor Replacement
