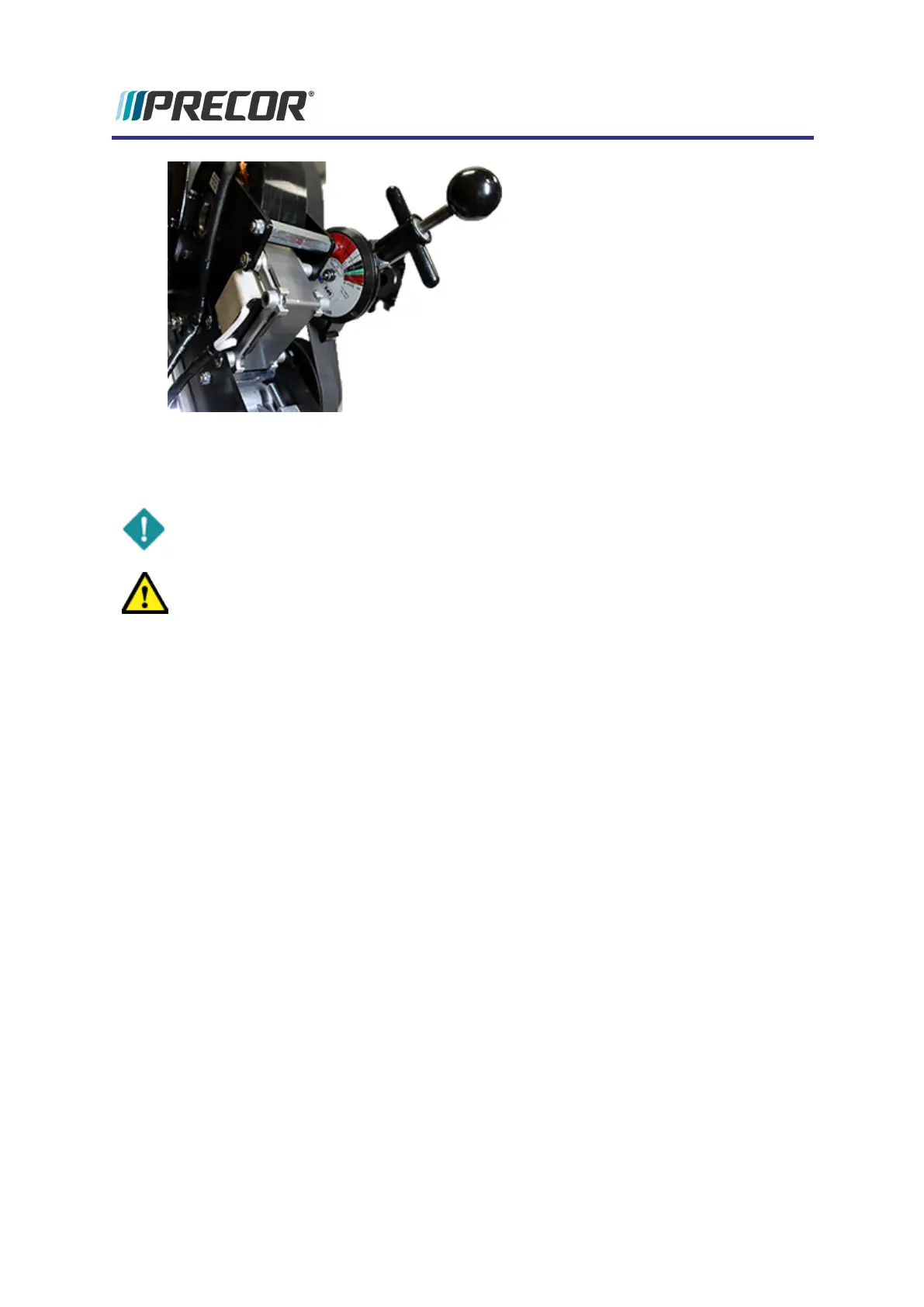

6. Remove the belt tension gauge. Use a 1/2" socket to decrease or increase the belt ten-
sion using the Second Stage Belt Tensioner. Only make small incremental tension
changes per adjustment.
IMPORTANT: The belt tension gauge must be removed while making tension adjust-
ments or the measurement will be invalid.
CAUTION:Make sure to that the two Generator and Eddy Brake Assembly fastener
nuts are loosened before adjusting the tensioner. The tensioner hardware can be
damaged by over tightening the adjustment bolt.
7. Use the crankarm to move the belt a couple of rotations. Place the belt tension gauge
onto the Second Stage Drive Belt midway between the two pulleys and measure the
tension. Verify that the belt tension is within [[[Undefined variable EFX800-
16Base.spec-BeltTesnsionSecStage-8]]]. If the tension is not within specification
repeat the tension adjustment procedure.
Experience Series 800 Line EFX
38
4 Adjustment Procedures
Second Stage Drive Tension Adjustment
