Precor Experience Series 800 line EFX User Manual

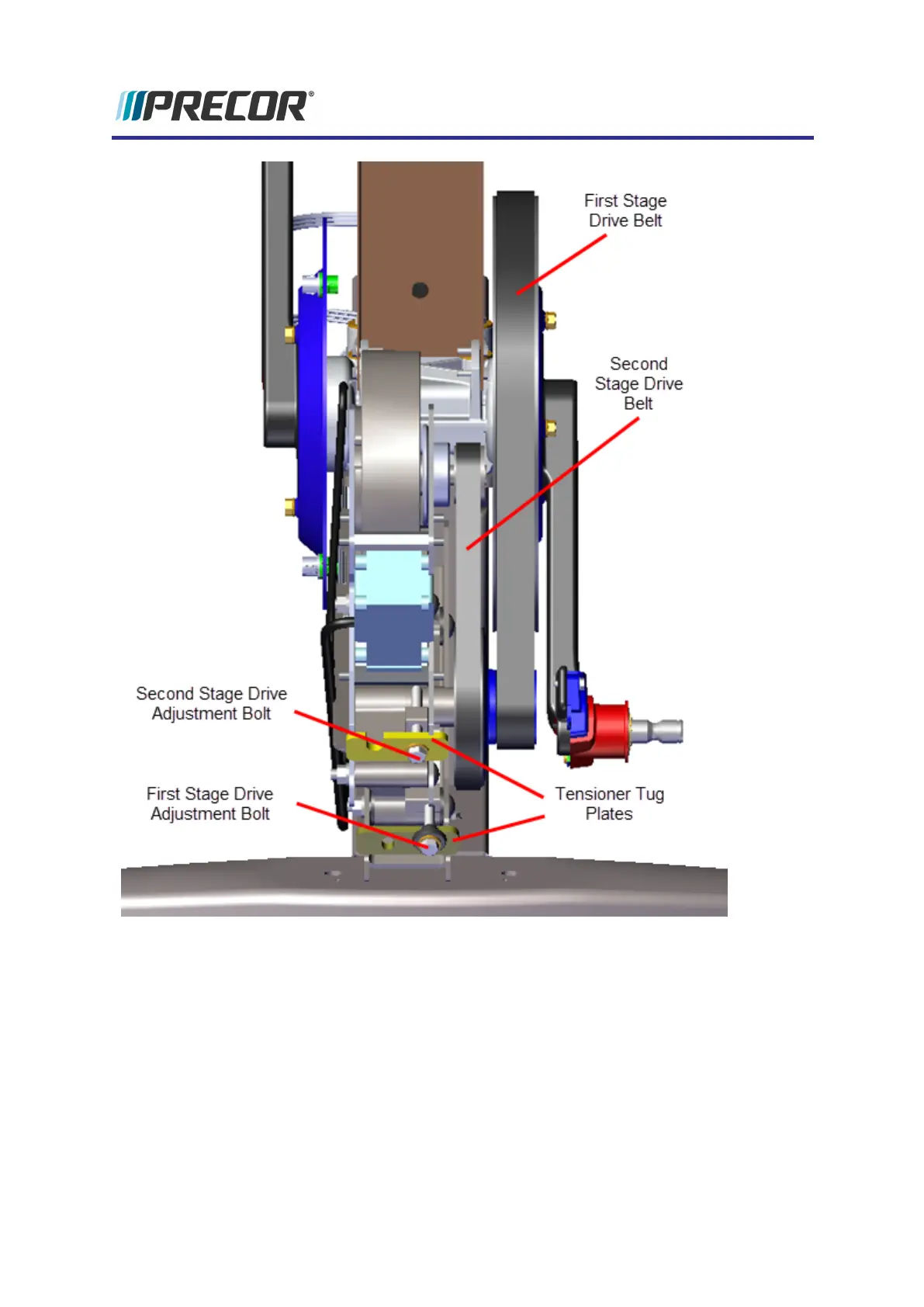

2. Tension the first stage drive belt to 140-150 lbs (63.5 - 68 kgs), see ."First Stage Drive
Belt Tension Adjustment" on page32 .
3. Verify that the second stage drive belt is within the specified tension 110-120 lbs (50-
54.4 kgs). If not within specification retention the belt, see "Second Stage Drive Tension
Adjustment" on page36.
4. Tighten the two Drive Components Assembly carriage bolt fasteners, torque to 180 in-
lbs (20.3 Nm).
5. Reinstall the right Stairarm, see "Stairarm Replacement" on page117.
Experience Series 800 Line EFX
70
5 Replacement Procedures
First Stage Drive Belt Replacement
