Precor Experience Series 800 line EFX User Manual

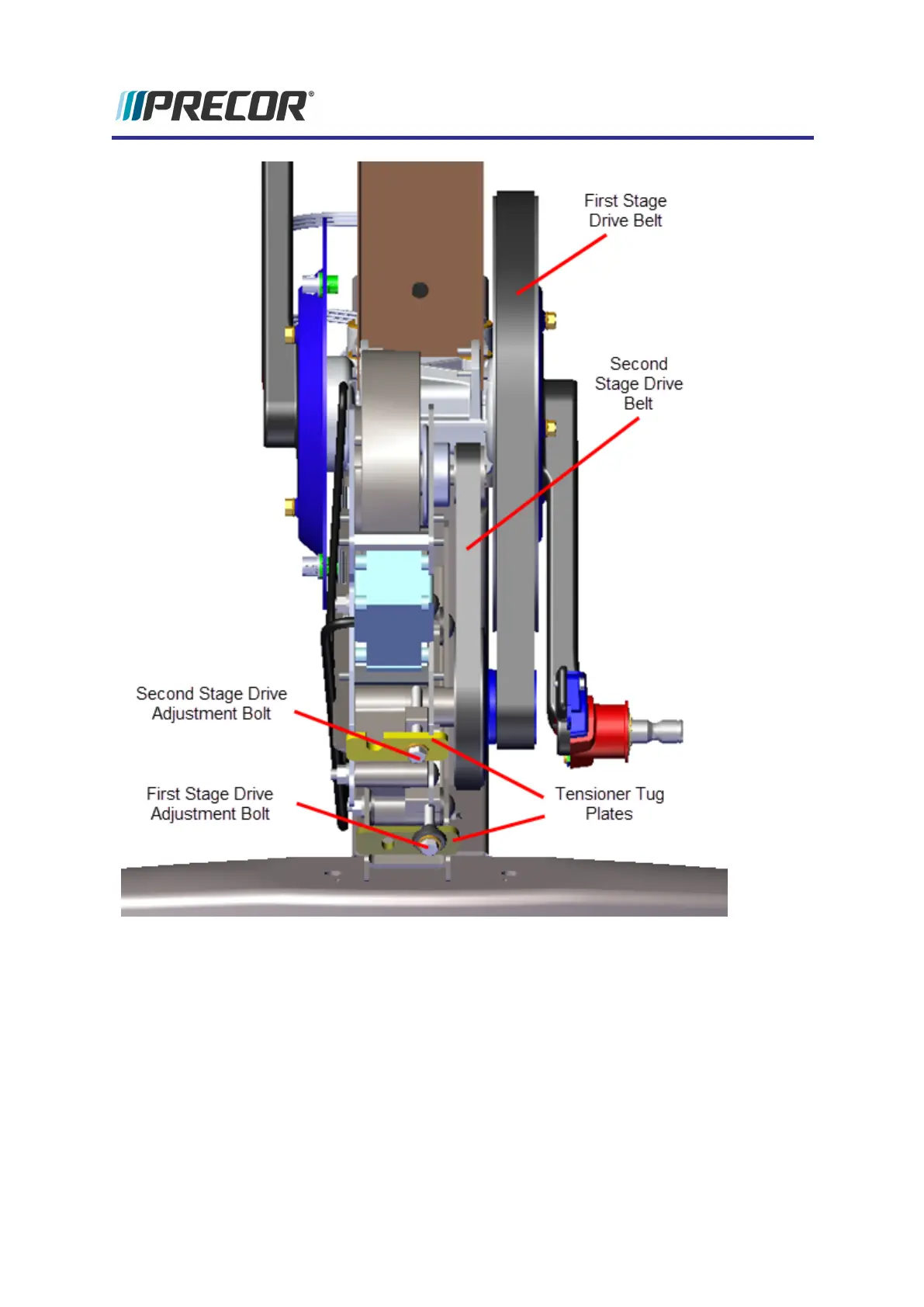

5. Tension the first stage drive belt to 140-150 lbs (63.5 - 68 kgs), see "First Stage Drive
Belt Tension Adjustment" on page32.
6. Tension the second stage drive belt to 110-120 lbs (50- 54.4 kgs), see "Second Stage
Drive Tension Adjustment" on page36.
7. Tighten the two Generator and Eddy Brake Assembly and two Drive Components
Assembly carriage bolt fasteners, torque to 180 in-lbs (20.3 Nm).
8. Reconnect the Generator input cable (J1) and Eddy/Brake load cable (J7) on the LPCA
board. Reinstall the LPCA/Battery module cover and secure with the #2 Phillips screw
fastener.
Experience Series 800 Line EFX
91
5 Replacement Procedures
Drive Components Assembly Replacement
