AFV
+
Series High Power Programmable AC Power Supply
1-3

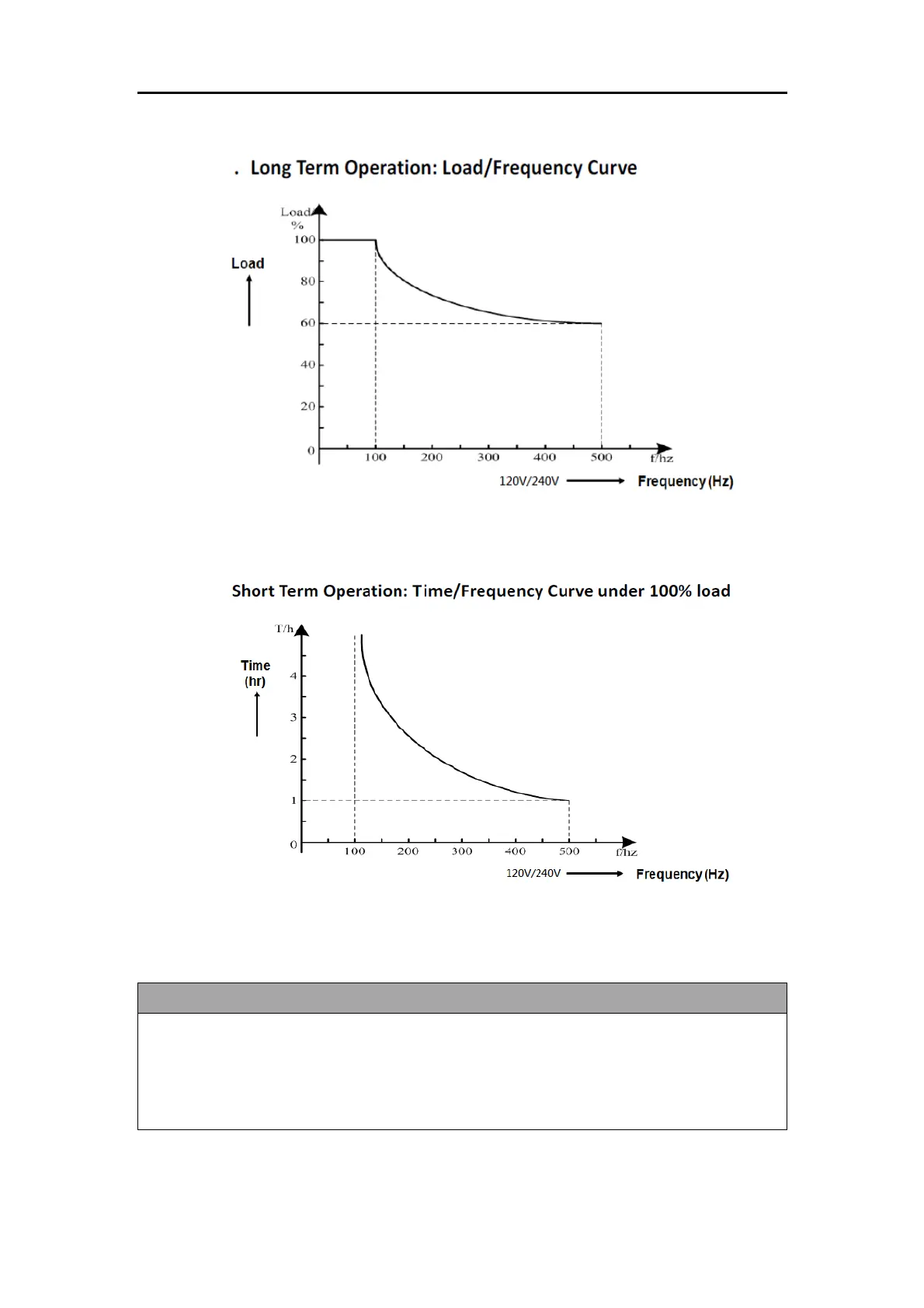

7. Output frequency 45-500Hz characteristic chart
Figure 1.3 Output load / frequency curve
Figure 1.4 Output time / frequency curve
When choosing AFV
+
series output frequency 45-500 Hz, the output power will be
influenced as the information above (Figure 1.2 &1.3). We would suggest the users
to select the ideal model base on their needs or higher output power, in order to
avoid the limitations.
