AFV
+
Series High Power Programmable AC Power Supply
3-41
3.5 Setting Page
When MAIN page displays on the screen, users can press to enter into
SETTING page. The SETTING page includes two subpages: TEST subpage and SYSTEM
subpage.
3.5.1 TEST Subpage
Entering the SETTING page, the TEST subpage will first display on the
screen. Refer to Figure 3.8

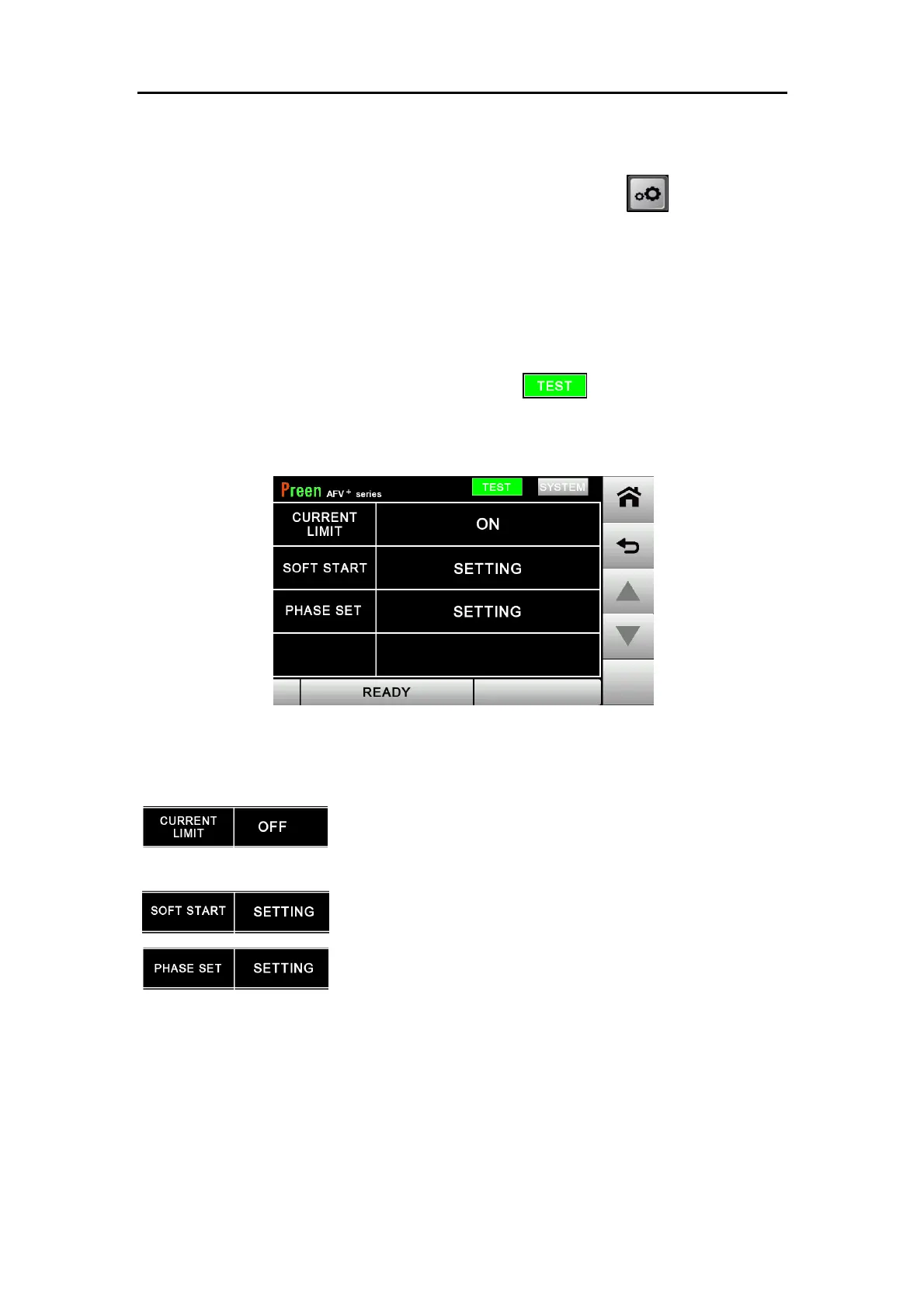

Figure 3.8 TEST subpage
The descriptions for the items in the above figure are given as follows.
：Press to activate/deactivate the CURRENT HIGH LIMIT
function.
：Press to activate the SOFT START function.
：Press to activate the PHASE ANGLE CONTROL (OPTION).
