3.5.1.1 Current High Limit Setting
The CURRENT HIGH LIMIT function allows the product to shut down the output, if it
were to exceed the set value of CURRENT LIMIT, and the condition Over Current will
display on the screen.
To activate the CURRENT HIGH LIMIT function, users can press the item
to switch the icon status from OFF to ON.

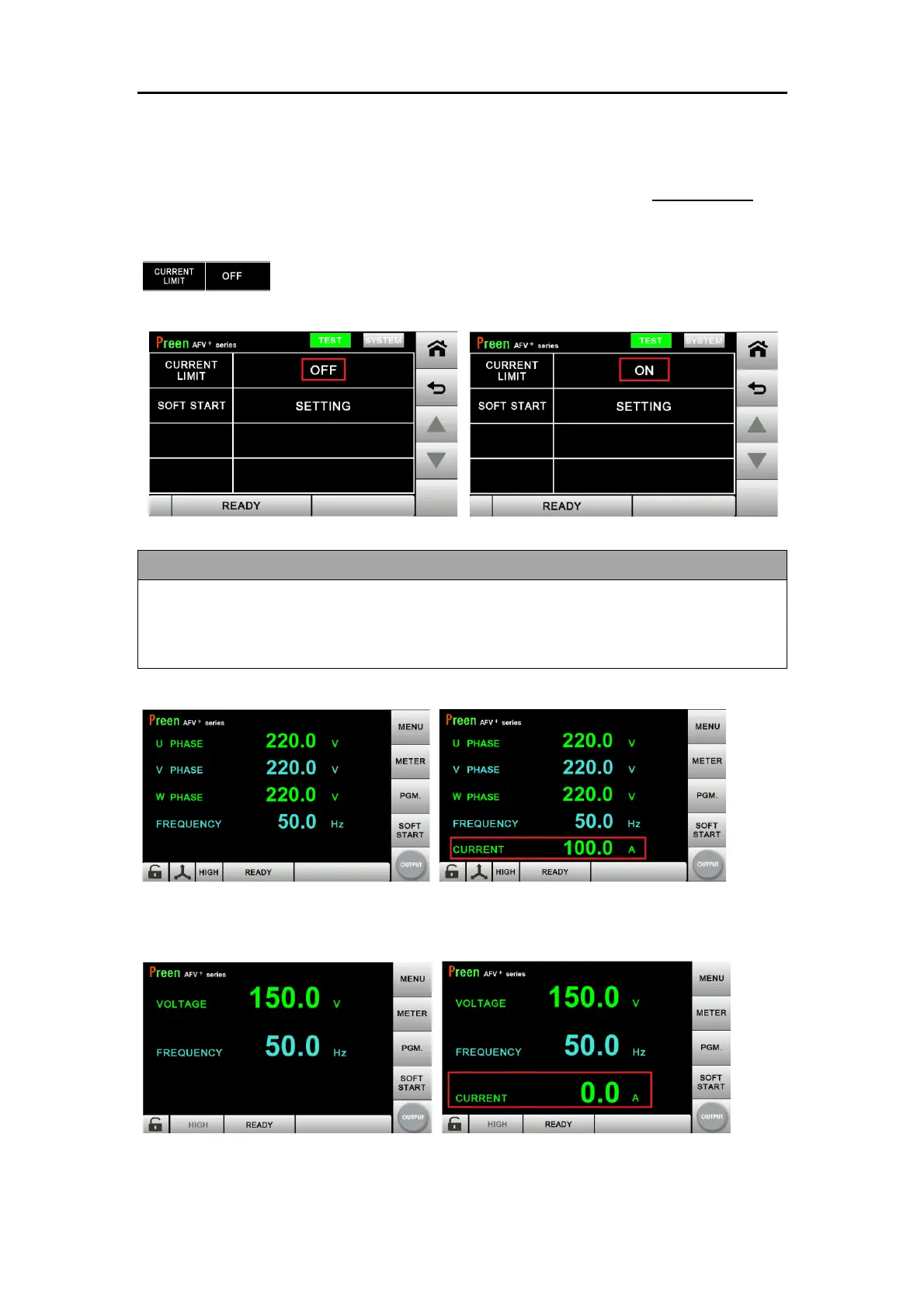

Figure 3.9 CURRENT LIMIT page
Notice
When the CURRENT HIGH LIMIT function is set OFF/ON, the MAIN page will display
as Figure 3.10 and Figure 3.11. The red square indicates the CURRENT HIGH LIMIT
function is activated.
Figure3.10 Three-phase model: CURRENT HIGH LIMIT function displays (left: OFF,
right: ON)
Figure3.11 Single-phase model :CURRENT HIGH LIMIT displays (left: OFF, right: ON)
