AFV
+
Series High Power Programmable AC Power Supply
2-20
Model
Input Terminal
(380V)
Output Terminal
Input Terminal
(200V)
Output Terminal
Current
Screw
Size
Current
Screw
Size
Current
Screw
Size
Current
Screw
Size
31010
30A
M4
100A
M8
60A
M6
100A
M8
31015
60A
M6
200A
M10
100A
M8
200A
M10
31020
60A
M6
200A
M10
100A
M8
200A
M10
31030
100A
M8
300A
M10
200A
M10
300A
M10
31045
100A
M8
Bus Bar
M10
200A
M10
Bus Bar
M10
31060
200A
M10
Bus Bar
M12
300A
M10
Bus Bar
M12
Model
Input Terminal
(480V)
Output Terminal
Input Terminal
(240V)
Output Terminal
Current
Screw
Size
Current
Screw
Size
Current
Screw
Size
Current
Screw
Size
31010
100A
M8
100A
M8
31015
200A
M10
200A
M10
31020
200A
M10
200A
M10
31030
300A
M10
300A
M10
31045
Bus Bar
M10
Bus Bar
M10
31060
Bus Bar
M12
Bus Bar
M12

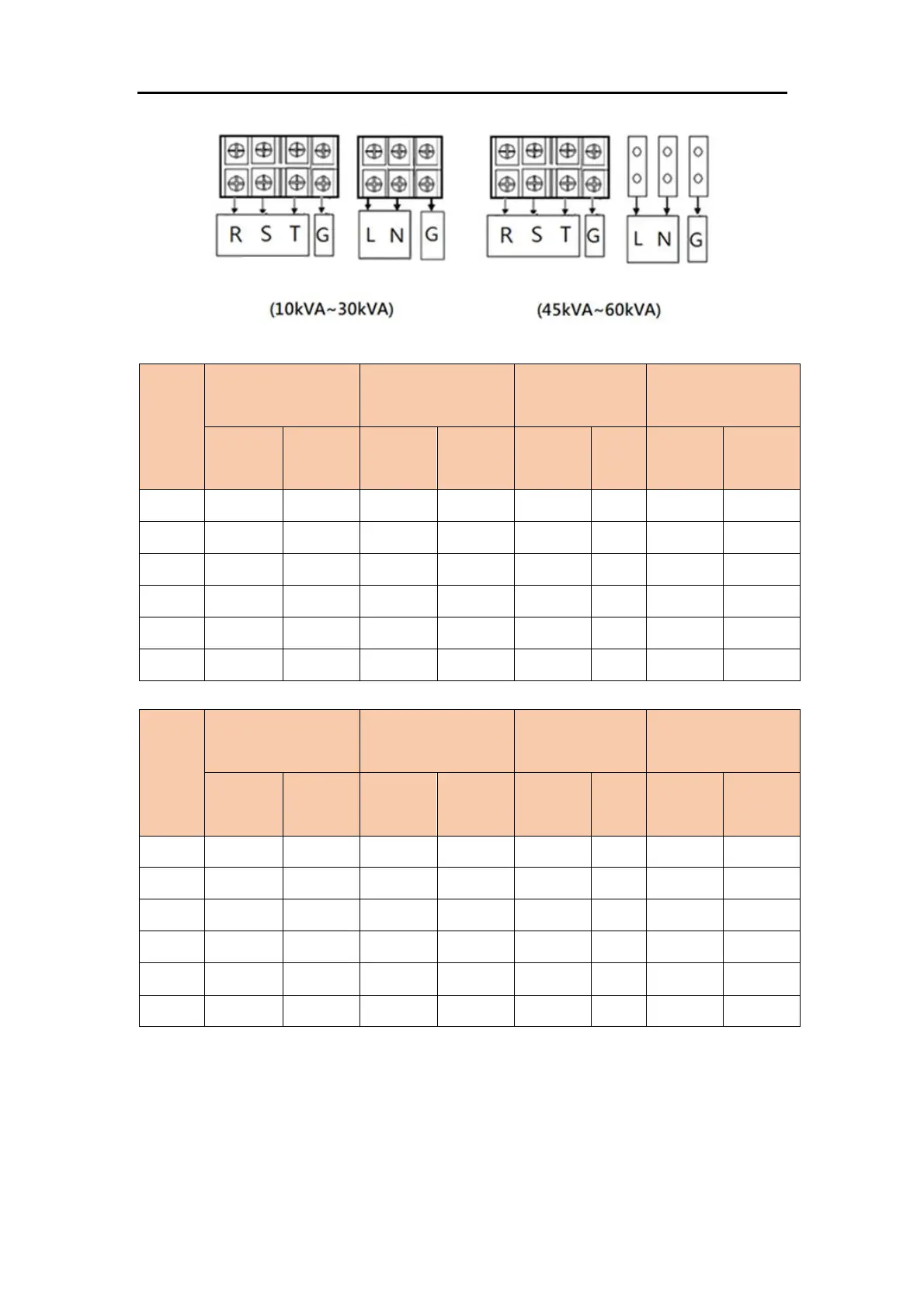

Figure2.3 Singe Phase Output Power from10kVA~60kVA
