6 The Fat Channel
6.8 Fat Channel Screens
StudioLive™ Series III
Owner’s Manual
Power User Tip: Use the Shift or Tap buttons to “null” button any parameter by pressing
and holding the Shift or Tap button while adjusting the control of your choice to return
that control to its default setting.

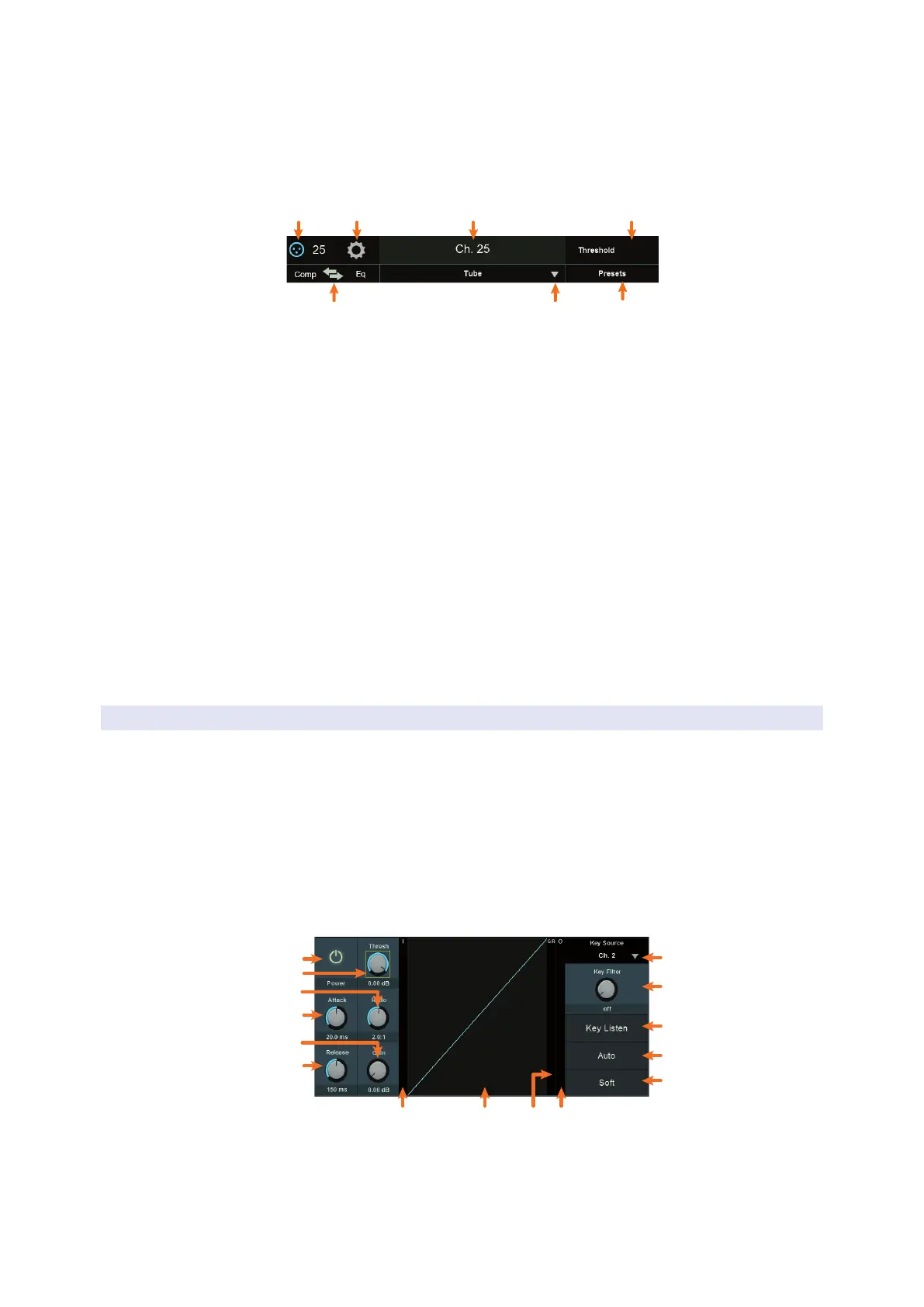

The compressor models can be selected from the Touch Display when Compressor
mode is active in the Fat Channel:
1
3
2
4
6 7
5
1. Signal Source. Displays whether this channel is receiving signal from an analog
or digital source. Press to open the Input Source screen. For more information,
see Section 6.11.
2. Settings Button. Touch to access additional settings.
3. Name and Number. Displays currently selected channel or bus name and
number.
4. Current Parameter. Displays currently control parameter and its value.
5. Presets. Opens Presets menu on the Touch Display.
6. Compressor Type. Changes the type of Compressor model.
7. Comp>EQ. The Compressor and EQ can be reordered in the signal path. By
default, the signal passes through the compressor before passing through
through EQ. When reordered, the EQ is placed before the compressor in the
signal path.
Power User Tip: Placing the compressor before the EQ allows you to make dramatic
changes to the EQ settings without needing to alter the compressor setting. However, if
you place the EQ before the compressor, you can better control different frequencies,
achieving a more natural response.
6.8.4.1 Standard Compressor Overview Screen
When the Fat Channel is in Standard Compressor mode, the Touch Display shows an
overview screen that displays the relevant parameters, along with useful metering
and a graphical representation of the effect of current settings. Touching any
onscreen knob allows you to use the Master Control encoder to set the selected
parameter. Touching a drop-down selector (such as Key Source) lets you select from
a list of relevant choices. Use the Master Control encoder to scroll through choices.
Touching onscreen buttons toggles the related parameter on or off.
Power User Tip: For StudioLive models with dynamic Fat Channel displays, many of these
parameters can also be controlled from the encoders and buttons in the Fat Channel. See
Section 6.5.1 for details.
1
2
4
3
6
5
15
14
13
12
11
1087 9
1. Processor On/Off. Enables or disables the Compressor.
2. Threshold. Sets the Threshold for the Compressor.
3. Ratio. Sets the Compressor Ratio.
4. Attack. Sets the Attack time for the Compressor.
