Example 1:
CAN messages with a CAN identifier 0x123 are received. CAN messages with a different CAN
identifier are filtered out and forwarded to the next online CAN object.

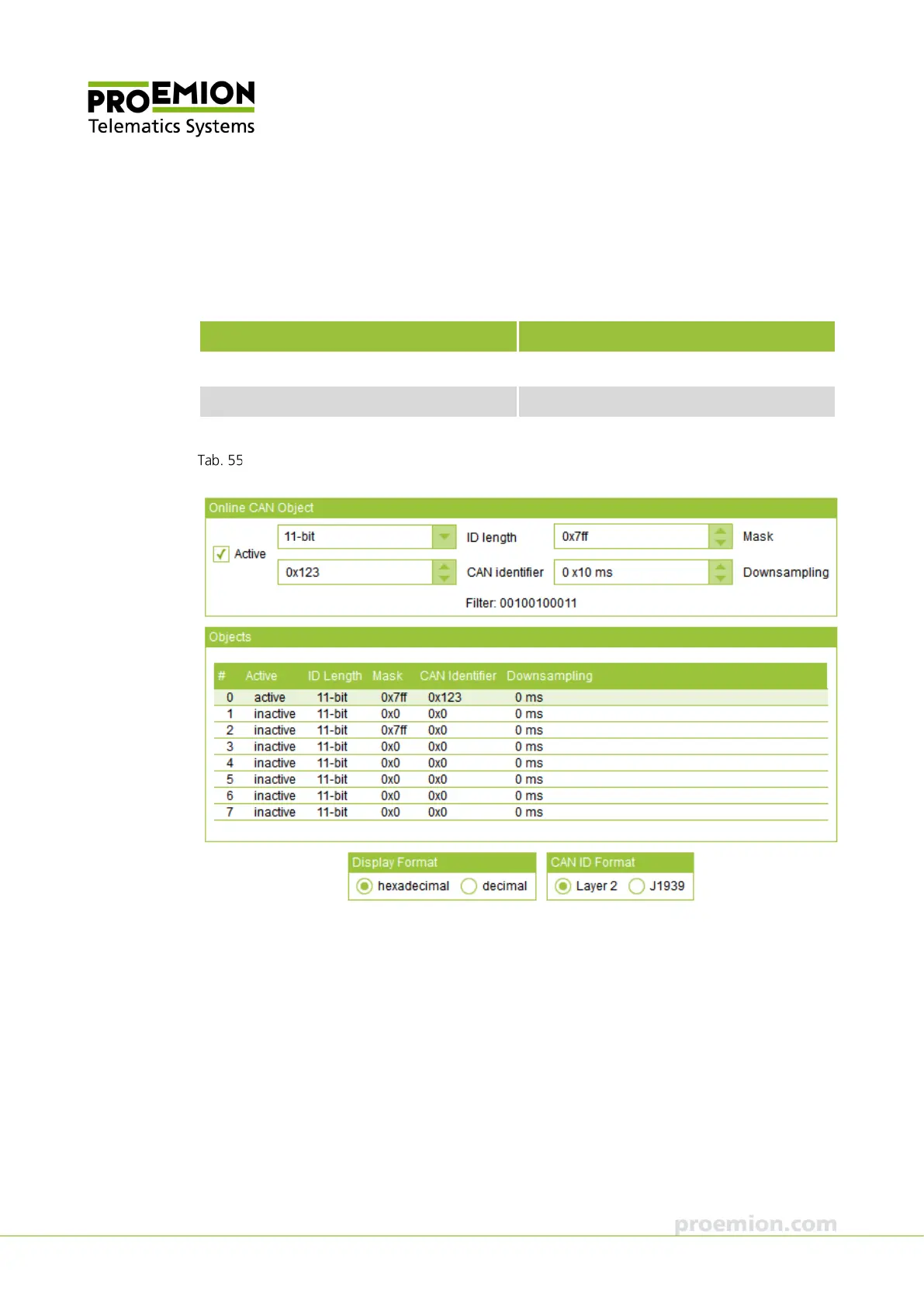

Set the filter mask:
Online CAN object Binary
11-bit CAN identifier (hex): 0x123 001 0010 0011
Filter mask 0x7ff (hex) 111 1111 1111
CAN messages from CAN bus 001 0010 0011
Example 1: Filter mask for CAN messages
