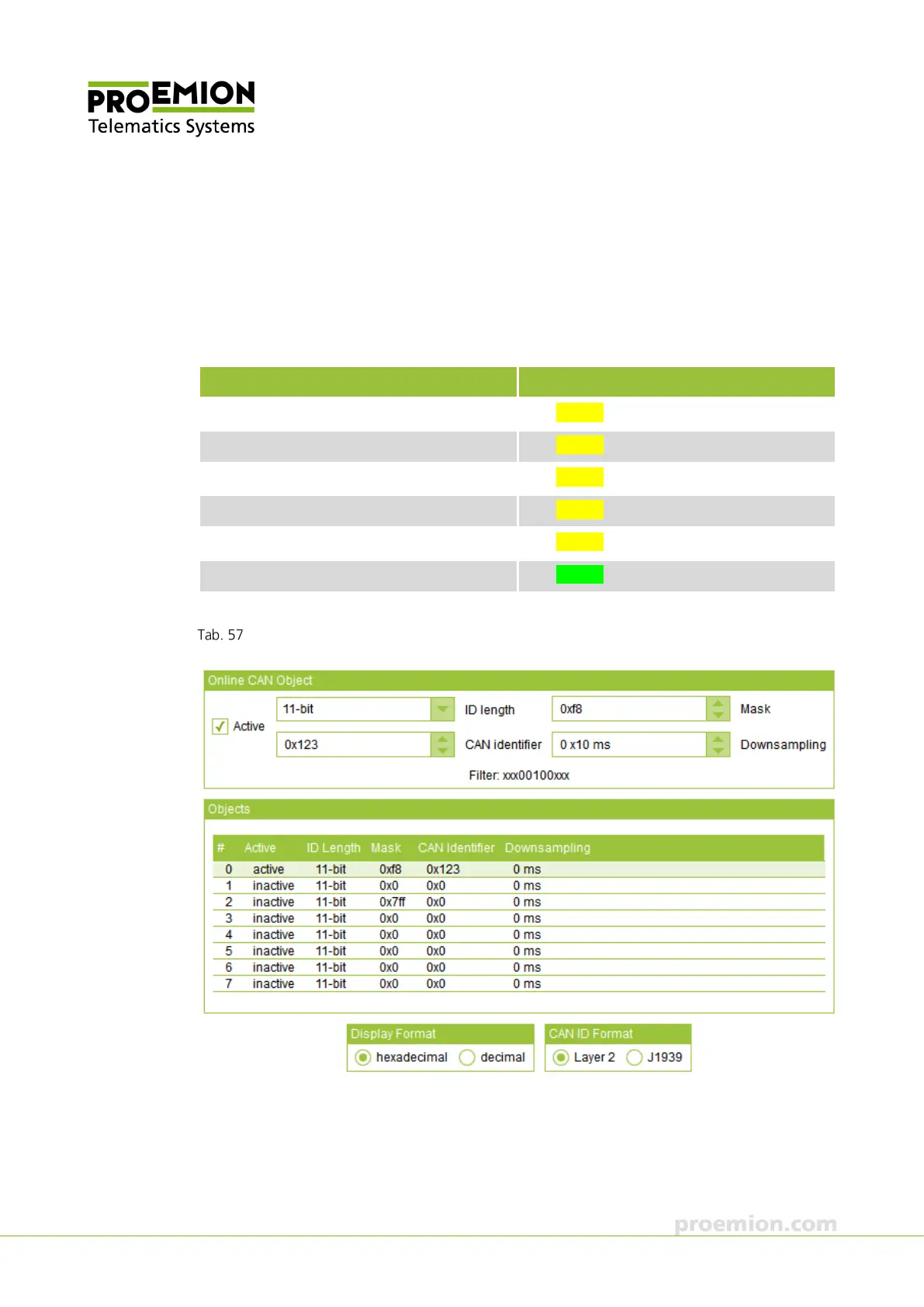

Example 3:
CAN messages with the CAN identifiers 0x123, 0x124, 0x125 0x621, and 0x726 are
transmitted. The required filter mask must be determined using an XNOR gate. Other CAN
messages that comply with the filter mask are also received. CAN messages with other CAN
identifiers are not received, but forwarded to the next online CAN object.
Set the filter mask:
Online CAN object Binary
11-bit CAN identifier (hex): 0x123 001 0010 0011
11-bit CAN identifier (hex): 0x124 001 0010 0100
11-bit CAN identifier (hex): 0x125 001 0010 0101
11-bit CAN identifier (hex): 0x621 110 0010 0001
11-bit CAN identifier (hex): 0x726 111 0010 0110
XNOR gate for filter mask 000 1111 1000
Filter mask 0xF8 (hex) xxx 1111 1xxx
Example 3: filter mask for CAN messages
