7. Enter the following parameters for the generator:
Name Entry
Generator Name Generator CV
ID 123
Data type UInt8
First Data Byte to generate Byte 1
Choose Generator Sawtooth, Cyclic, Cycletime 10
Generator CV parameters.
8. Click the OK button to confirm the parameters.

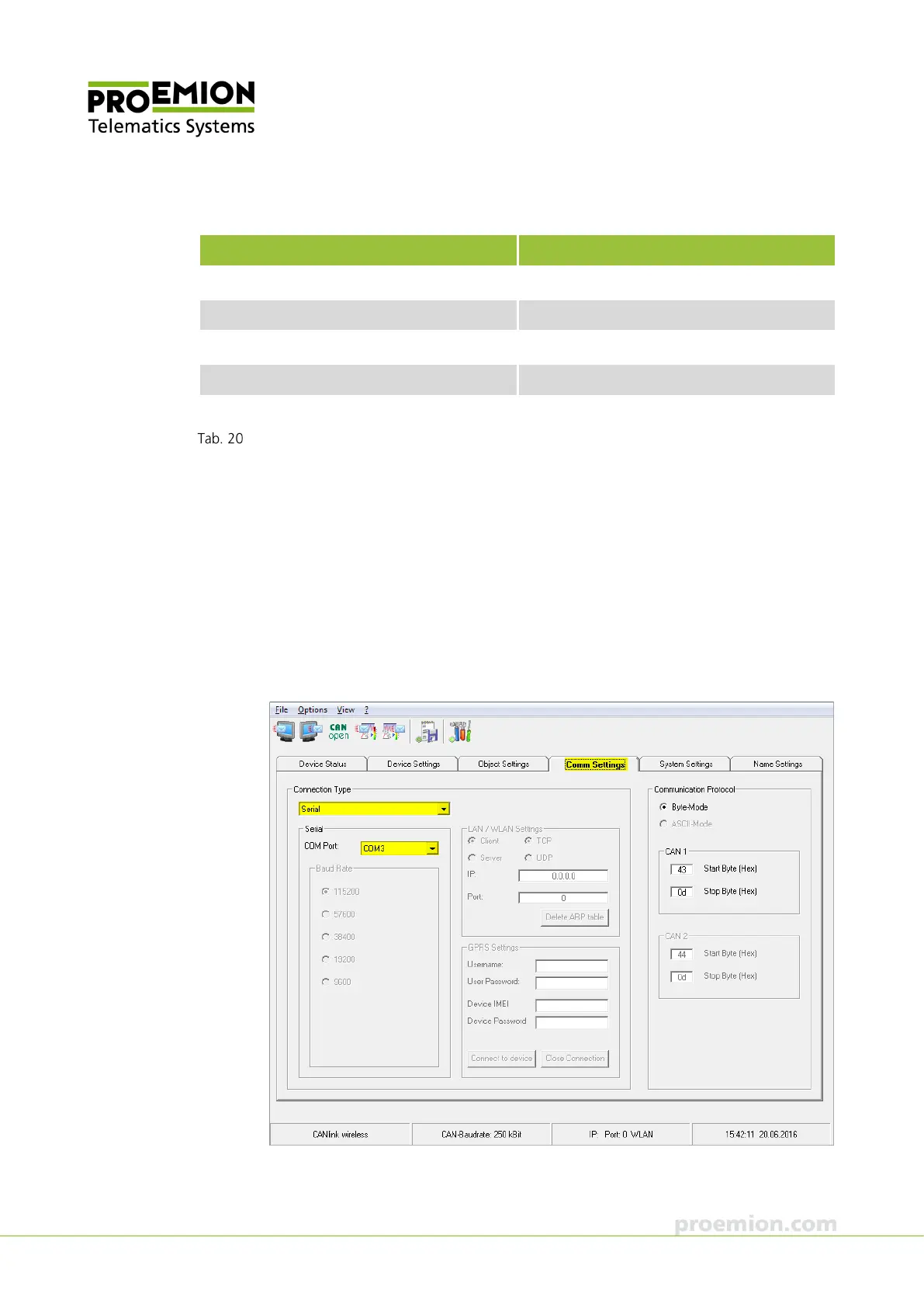

CONNECTING RM CAN-DEVICE MONITOR TO THE CANLINK WIRELESS
1. Open a second instance of RM CAN-Device Monitor on the PC.
2. Click T
OOLS in the toolbar.
3. Click the C
OMM SETTINGS tab.
4. In the list under C
ONNECTION TYPE, select the Interface SERIAL.
5. In the COM P
ORT list, select the COM port of the CANlink wireless.
