6. Choose VIEW → INDICATOR from the menu.
 This opens the RM
CAN-DEVICE MONITOR INDICATOR 1 window.
7. Enter the following parameters for the indicator:
Name Entry
Indicator Name Indicator CLW
ID 123
Data Type UInt8
First Data Byte to trigger Byte 1
Choose indicator Graph

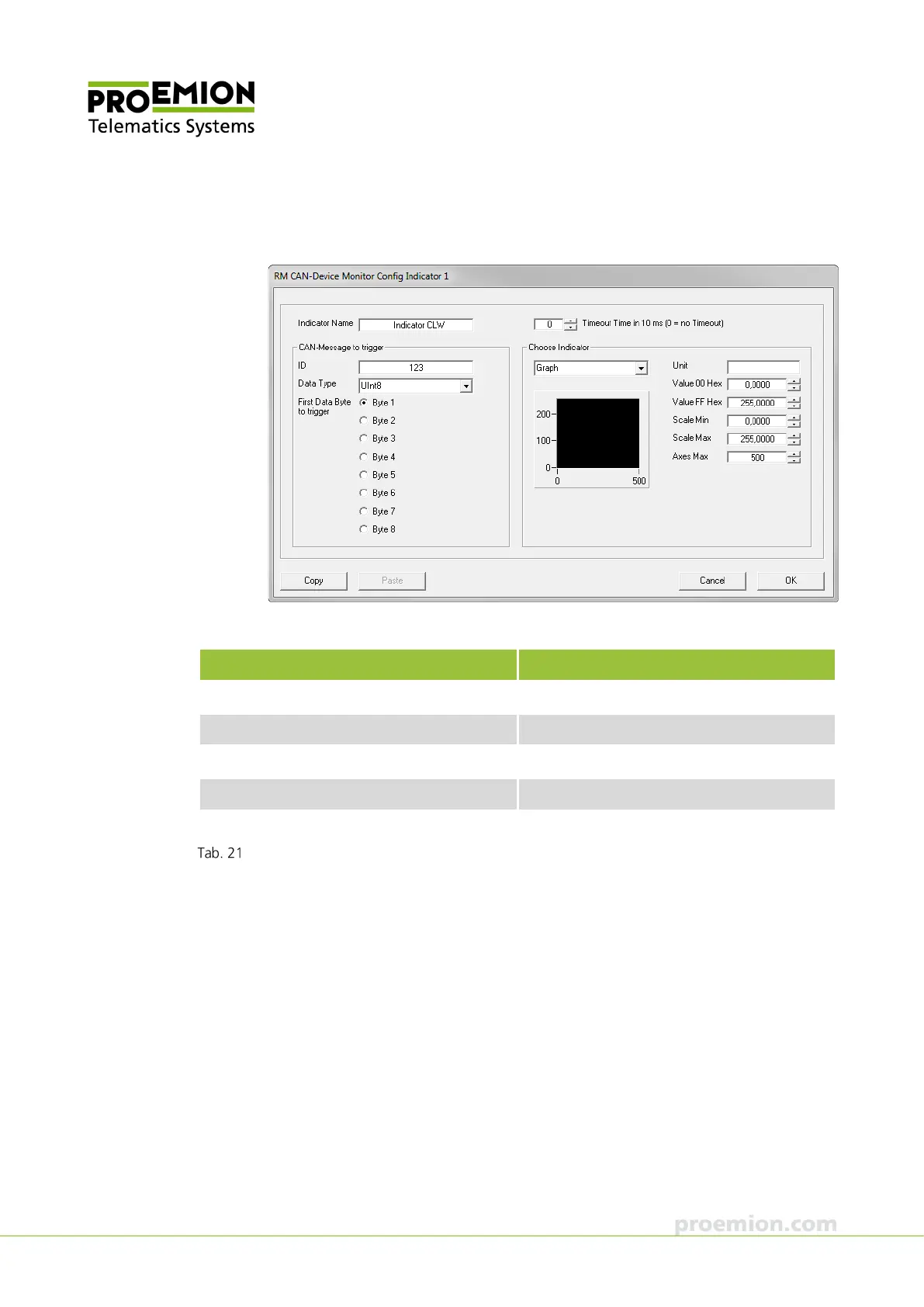

Indicator CLW parameters
8. Click the OK button to confirm the parameters.
9. Switch back to the first instance of RM CAN-Device Monitor.
10. In the G
ENERATOR CV window, click the SEND button.
 This starts the G
ENERATOR CV.
