ProMinent gamma XL User Manual

1612 1020 0730
Liquid end with degassing 1096272 1096266 1096267
Spare parts kit 1047832 1047833 1095503
Diaphragm 1000248 1000249 1045456
1
5
1
8
6
2
7
P_G_0107_SW
40350920
2
3

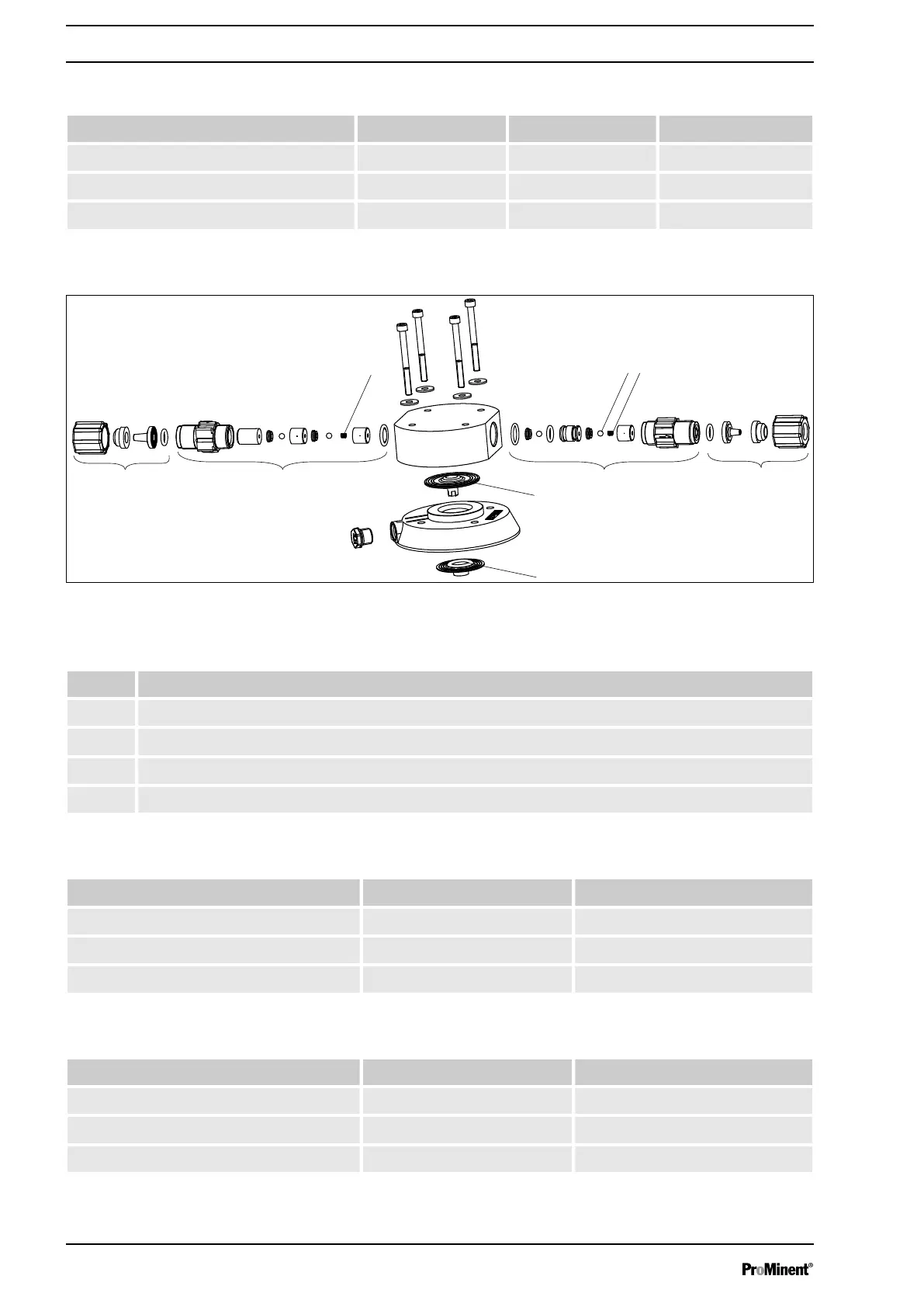

Fig. 45: Liquid end of gamma/ XL 1608 / 2508 NP_0
Tab. 36: Spare parts for liquid end gamma/ XL 1608 / 2508 NP_0
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
1608 2508
Liquid end without degassing 1096217 1096214
Spare parts kit 1030225 1095912
Diaphragm 1030353 1030353
1608 2508
Liquid end without degassing 1096175 1096216
Spare parts kit 1030620 1033172
Diaphragm 1030353 1030353
Liquid end gamma/ XL NPT 7
Liquid end 1608 / 2508 NP_0
Liquid end gamma/ XL NPT 0
Liquid end gamma/ XL NPE 0
Exploded drawings of the gamma/ XL
