1608 2508
Liquid end without degassing 1096280 1096281
Spare parts kit 1030611 1033171
Diaphragm 1030353 1030353
1
5
1
8
6
2
7
P_G_0107_SW
40350920
2
3

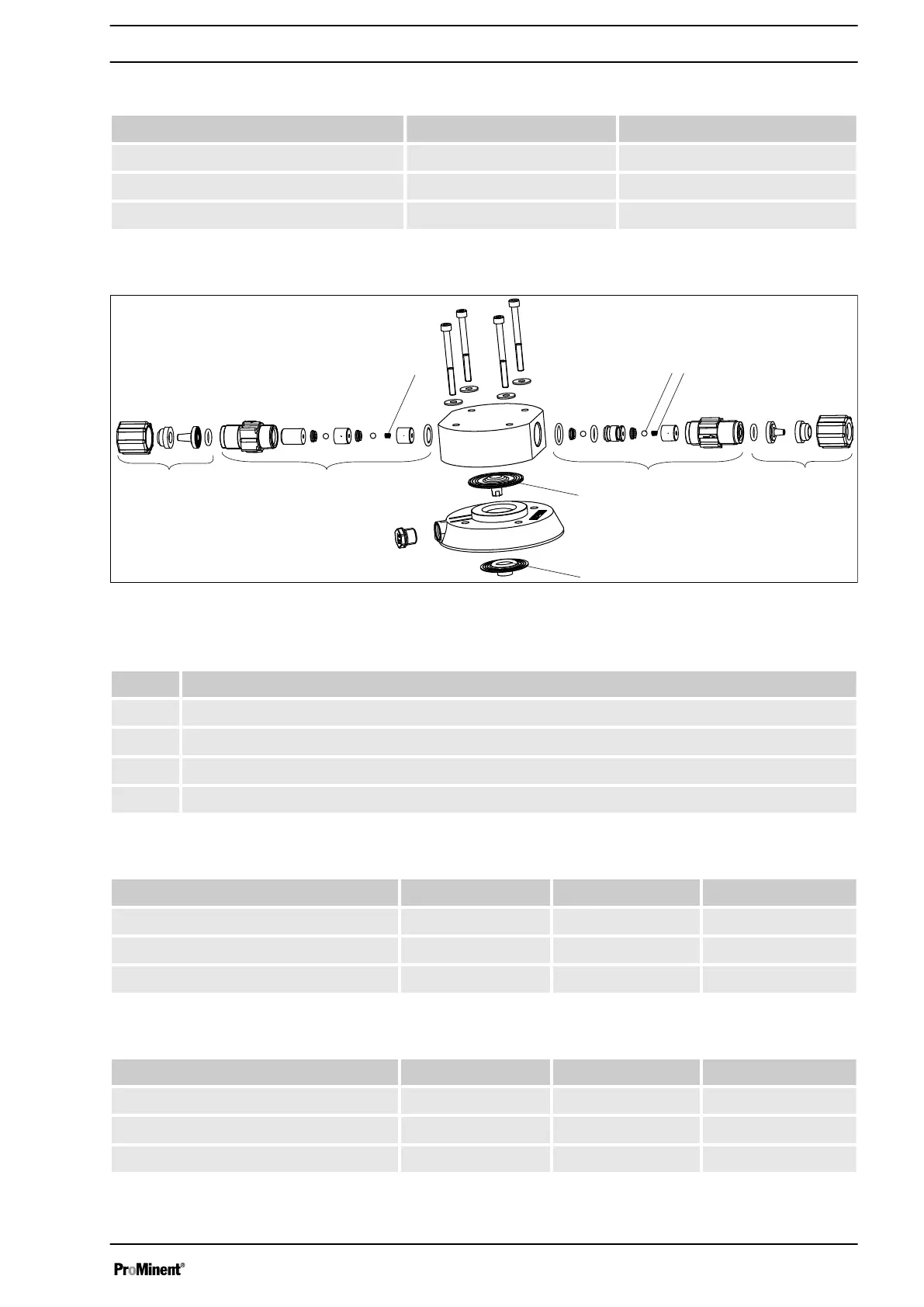

Fig. 46: Liquid end of gamma/ XL 1612 - 0730 NP_0
Tab. 37: Spare parts for liquid end gamma/ XL 1612 - 0730 NP_0
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
1612 1020 0730
Liquid end without degassing 1096215 1096182 1096183
Spare parts kit 1027081 1027082 1095626
Diaphragm 1000248 1000249 1045456
1612 1020 0730
Liquid end without degassing 1096180 1096181 1096178
Spare parts kit 1030536 1030537 1030621
Diaphragm 1000248 1000249 1045456
Liquid end gamma/ XL NPB 0
Liquid end 1612 - 0730 NP_0
Liquid end gamma/ XL NPT 0
Liquid end gamma/ XL NPE 0
Exploded drawings of the gamma/ XL
