Tab. 34: Spare parts for liquid end gamma/ XL 1608 NPT7, self-degassing SER
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
1608
Liquid end with degassing 1096271
Spare parts kit 1047831
Diaphragm 1030353
1
5
1
8
6
2
7
P_G_0108_SW
40350932
2
3
4

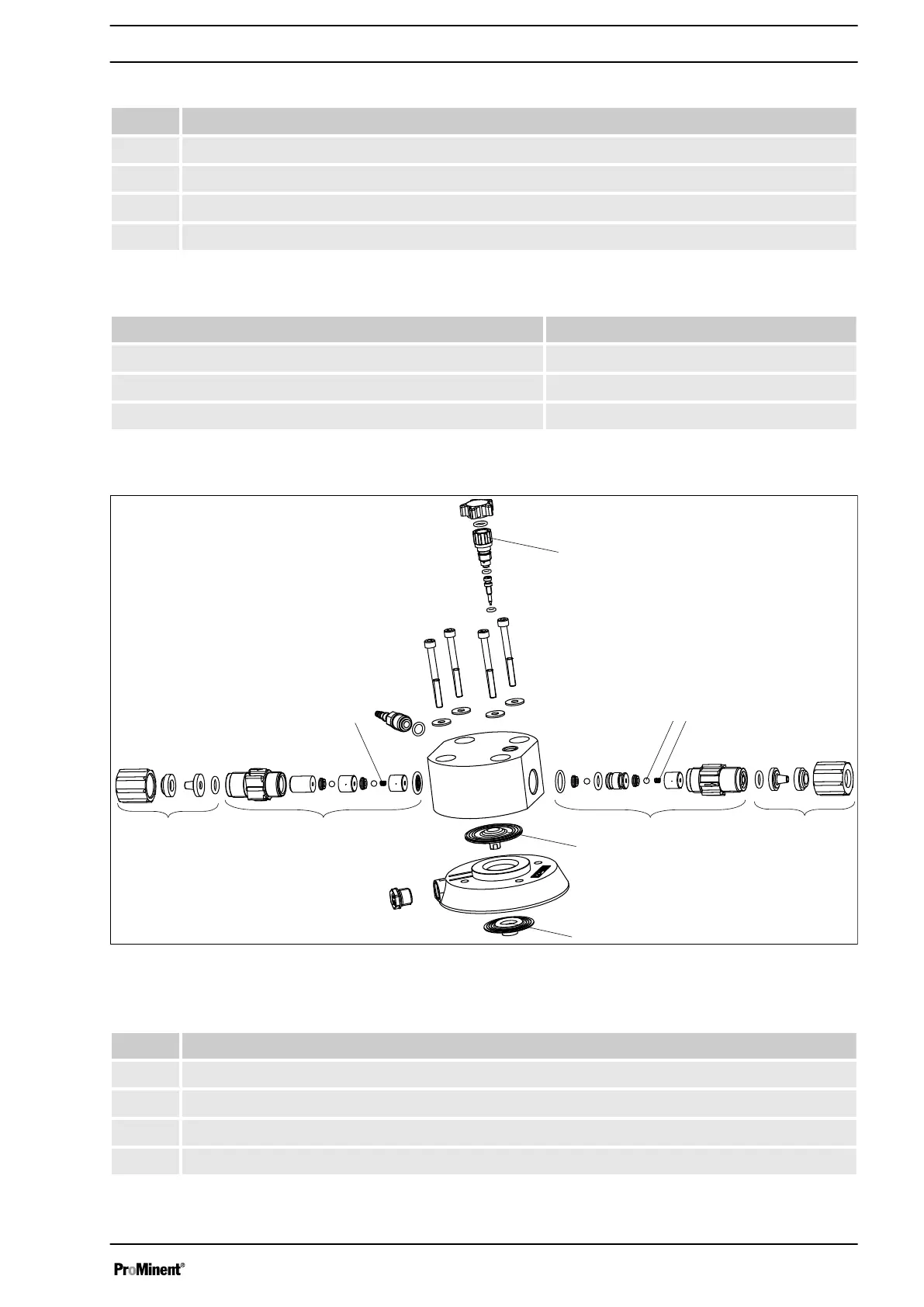

Fig. 44: Liquid end of gamma/ XL 1612 - 0730 NPT7 SER
Tab. 35: Spare parts for liquid end gamma/ XL 1612 - 0730 NPT7, self-degassing SER
Pos. Designation
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
Liquid end gamma/ XL NPT 7
Liquid end 1612 - 0730 NPT7 SER
Exploded drawings of the gamma/ XL
123
