ProMinent gamma XL User Manual

1612 1020 0730
Liquid end with degassing 1096275 1096273 1096274
Spare parts kit 1027081 1027082 1095626
Diaphragm 1000248 1000249 1045456
1612 1020 0730
Liquid end with degassing 1096270 1096261 1096260
Spare parts kit 1030536 1030537 1030621
Diaphragm 1000248 1000249 1045456
1612 1020 0730
Liquid end with degassing 1096268 1096269 1096263
Spare parts kit 1030525 1030526 1030612
Diaphragm 1000248 1000249 1045456
1
5
1
8
6
2
7
P_G_0108_SW
40350932
2
3
4

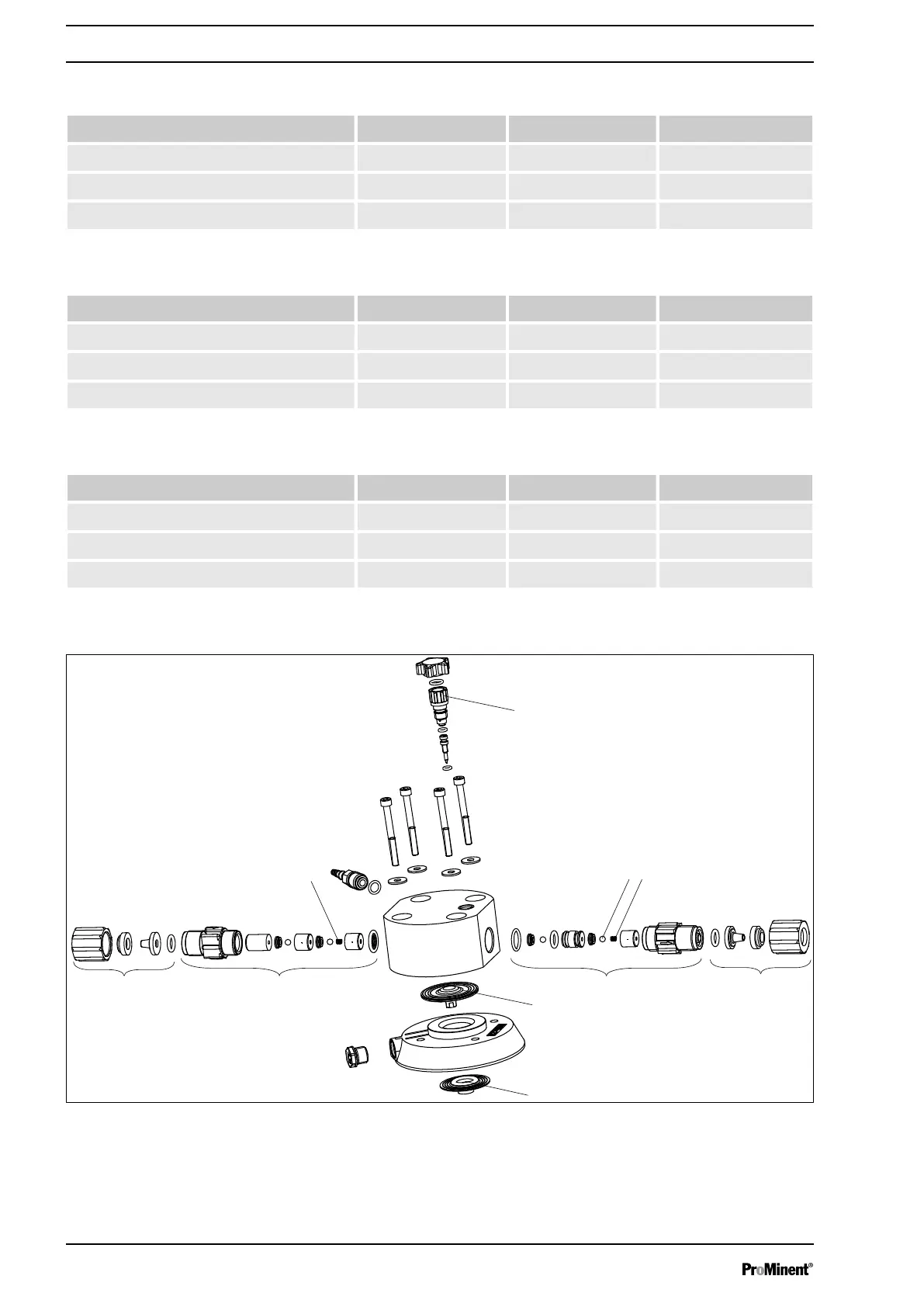

Fig. 43: Liquid end of gamma/ XL 1608 NPT7 SER
Liquid end gamma/ XL NPT2
Liquid end gamma/ XL NPE2
Liquid end gamma/ XL NPB2
Liquid end 1608 NPT7 SER
Exploded drawings of the gamma/ XL
122
