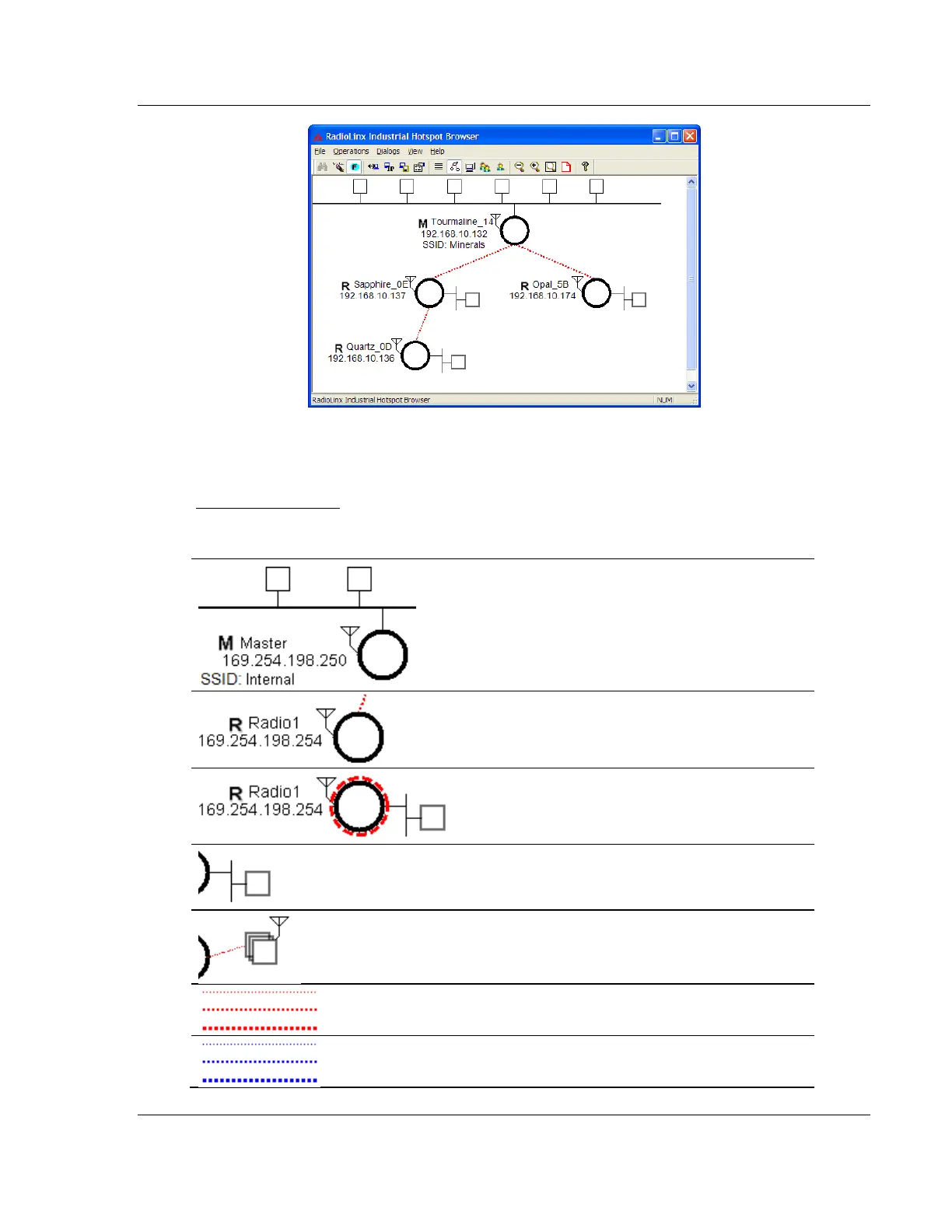

Refer to Topology View key (page 107) for an explanation of the symbols that
appear in this view.
Topology View key
For information on the options when right-clicking a radio icon, see IH Browser
options (page 87).
Master; always shown at the top
Radio linked to the network
Radio not linked; no parent
An Ethernet connection exists to the radio; does not
indicate the number of devices on the connection
Wireless clients (PCMCIA cards) are linked to this
radio; the number of clients linked is indicated by the
number of boxes
Signal strength; the width of the line is not calibrated
