RLX2 Series ♦802.11a, b, g, n RLX2 Quick Setup
Industrial Hotspots User Manual
ProSoft Technology, Inc. Page 31 of 161
May 8, 2013
1. Connect the client radio to the same network as the configuration PC running
the IH browser. Assign it an IP address as described above. Open the

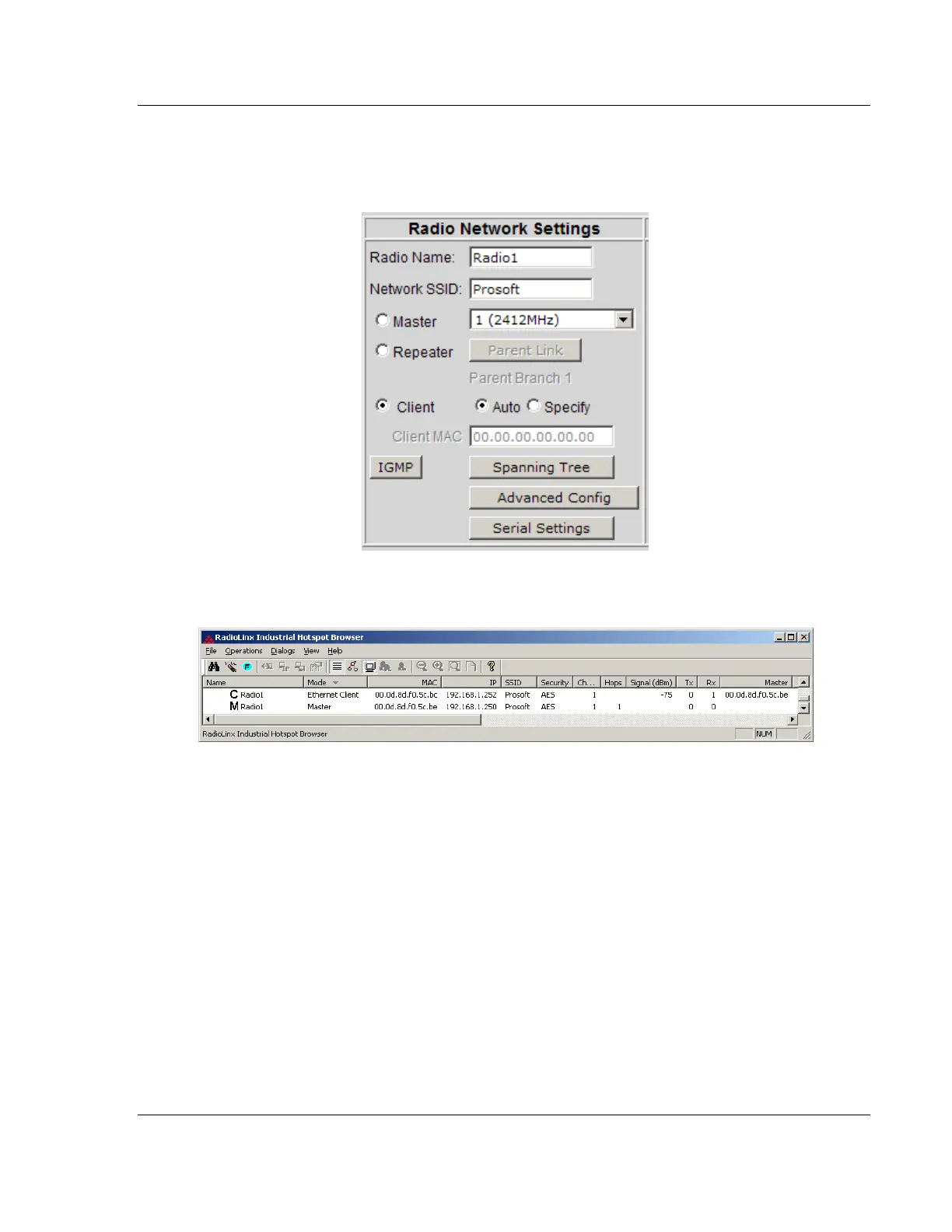

configuration webpage and change the radio to Client mode as shown:
Click Apply Changes. When the radio reboots, the IH Browser will display:
2. Power off the Client radio and disconnect the Ethernet cable from the
configuration PC.
3. Connect the Ethernet cable to an Ethernet port on another PC, and power up
the Client radio. (The radio must be powered up after attaching the Ethernet
cable to the new PC so the radio will register the MAC address of the PCs
network interface.)
