Configuring the MVI56-PDPMV1 Module MVI56-PDPMV1 ♦ ControlLogix Platform
User Manual PROFIBUS DPV1 Master
Page 116 of 251 ProSoft Technology, Inc.

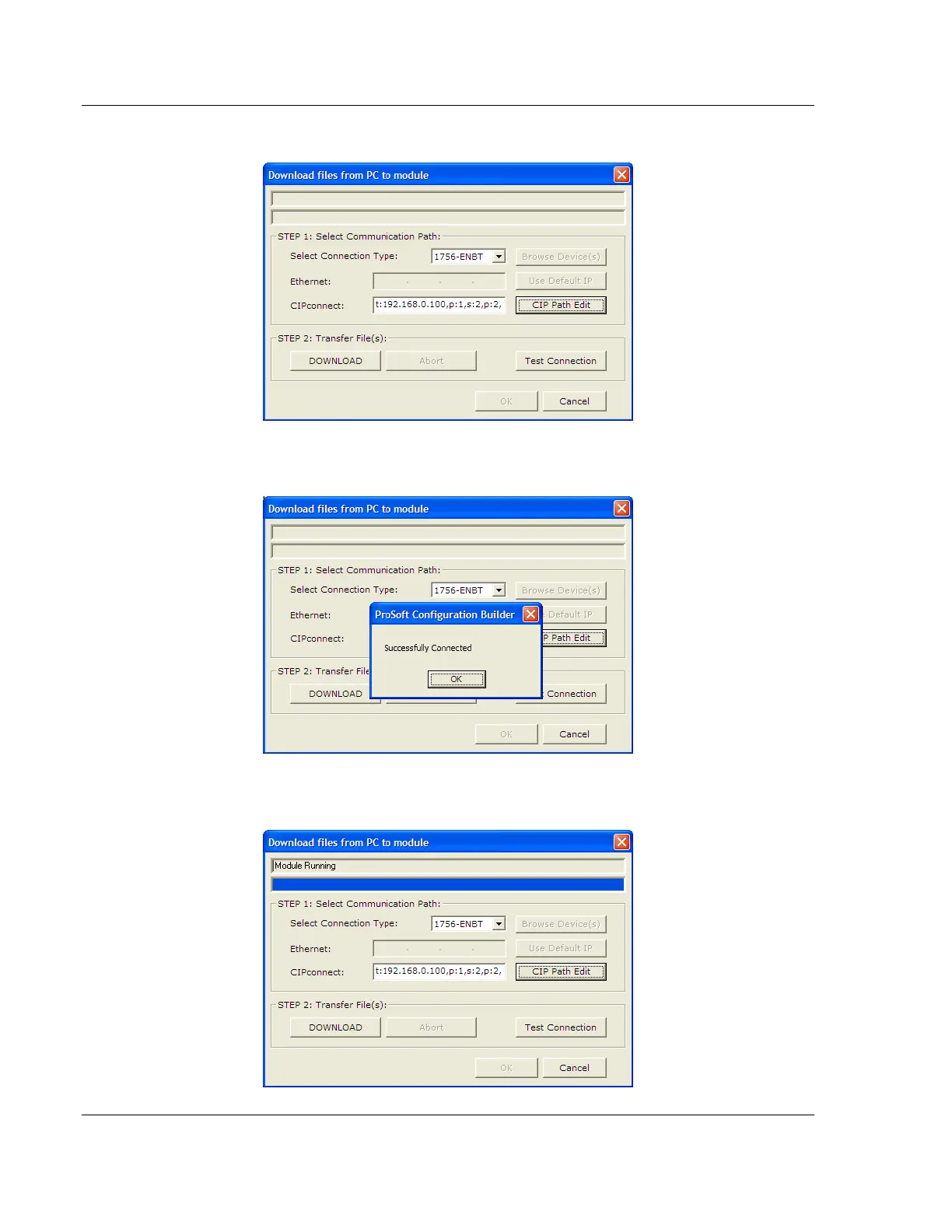

3 Check the new path in the CIPconnect text box.
4 Click TEST CONNECTION to verify that the physical path is available. The
following message should be displayed upon success.
5 Click DOWNLOAD to download the configuration files to the module through
the path.
