MVI56-PDPMV1 ♦ ControlLogix Platform Start Here
PROFIBUS DPV1 Master User Manual
Page 23 of 251 ProSoft Technology, Inc.

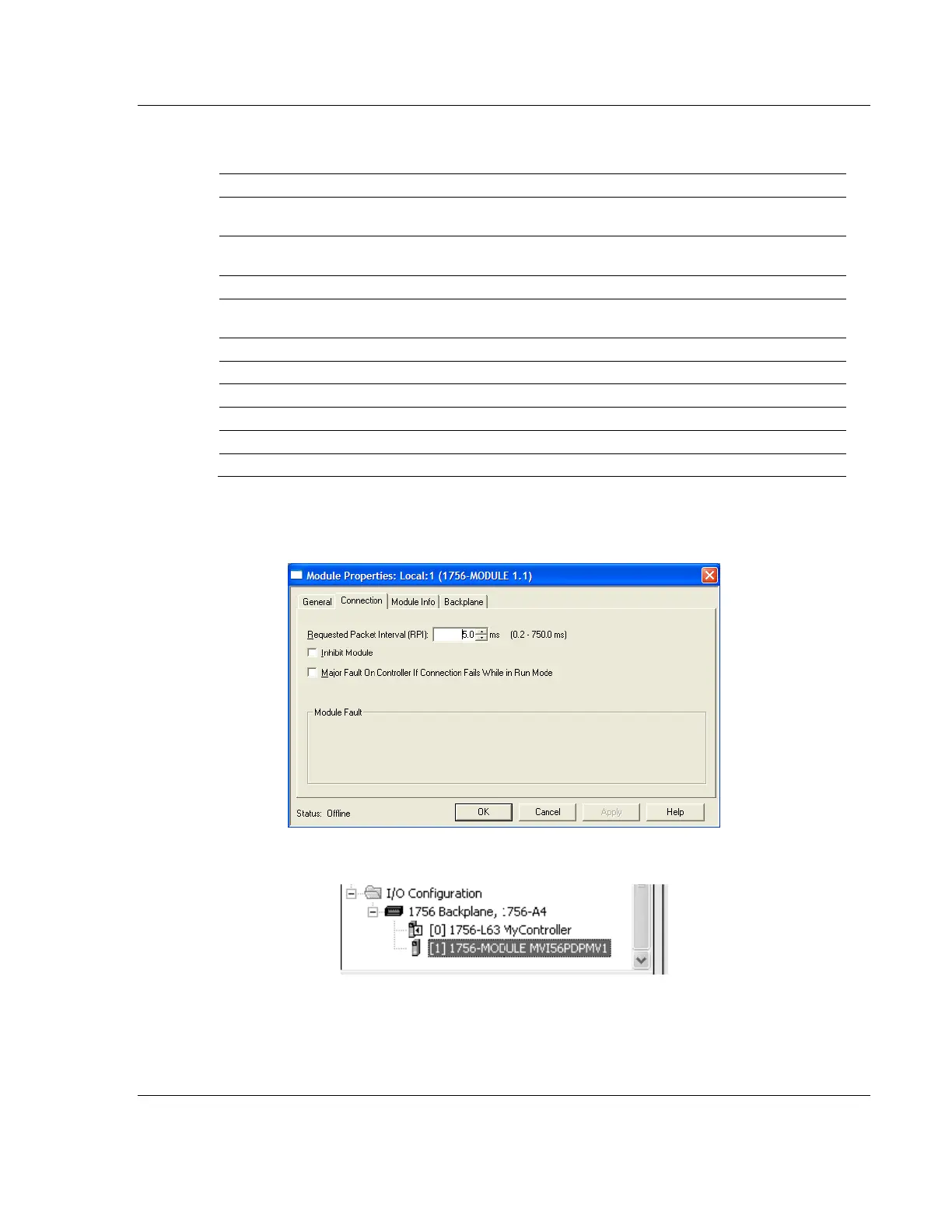

3 Set the Module Properties values as follows:
Parameter
Value
Name
Enter a module identification string. Example:
MVI56PDPMV1
Description
Enter a description for the module. Example: ProSoft
communication module for PROFIBUS communication.
Comm Format
Select DATA-INT
Slot
Enter the slot number in the rack where the MVI56-
PDPMV1 module is located.
Input Assembly Instance
1
Input Size
250
Output Assembly Instance
2
Output Size
248
Configuration Assembly Instance
4
Configuration Size
0
4 On the Connection tab, set the RPI value for your project. Click OK to
confirm.
Now the MVI56-PDPMV1 module will be visible in the I/O Configuration section.
