3. Once you are connected to the server via ftp, upload the
“PAA20V2.xml” file available in the FTP: ftp://manual:proyec-
son@ftp3.proyecson.com/manual/paa20+ to the “/etc/cueslib/” direct-
ory in the server. You can see the “PAA20V2.xml” loaded in this folder
in figure 8.2.4A. Now, you should be able to set-up the output cues
taking the commands from this library.
4. The procedure to create automation cues using the library is very sim-
ilar to the one that does not, but simpler, first of all open the Doremi
“Marco Editor”.

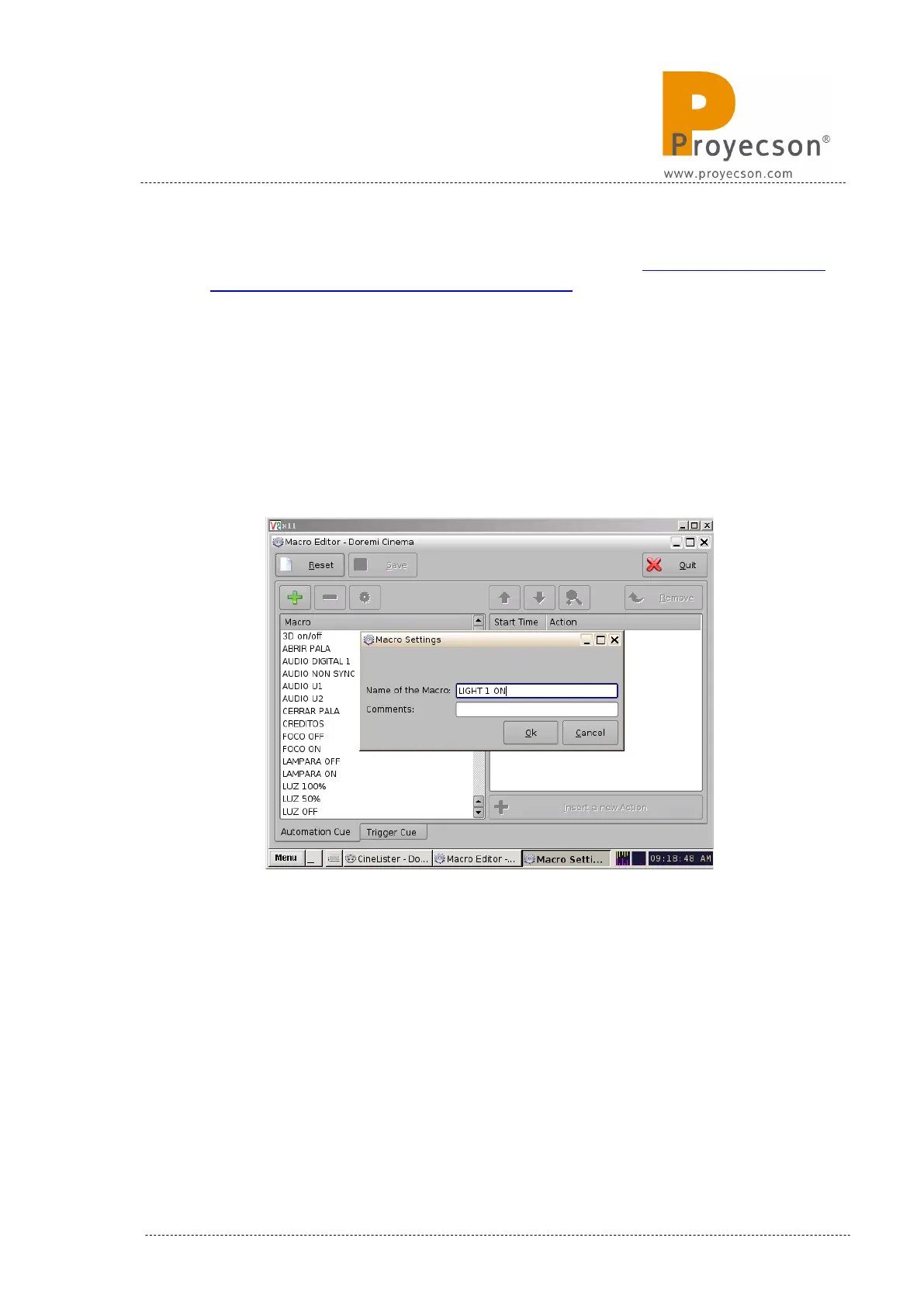

5. Then create a new “Macro” with the “+” button and name it, like in
figure 8.2.4B.
Figure 8.2.4B
6. Click on “Insert a new Action” button while the new created macro is
selected.
7. Select “Library / PAA20+_V1” on the “Add a new Action” pop-up win-
dow and click on “Add”. See figure 8.2.4C.
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 57
