3. Tap on the “Configuration” button and select “Maintenance Access”,

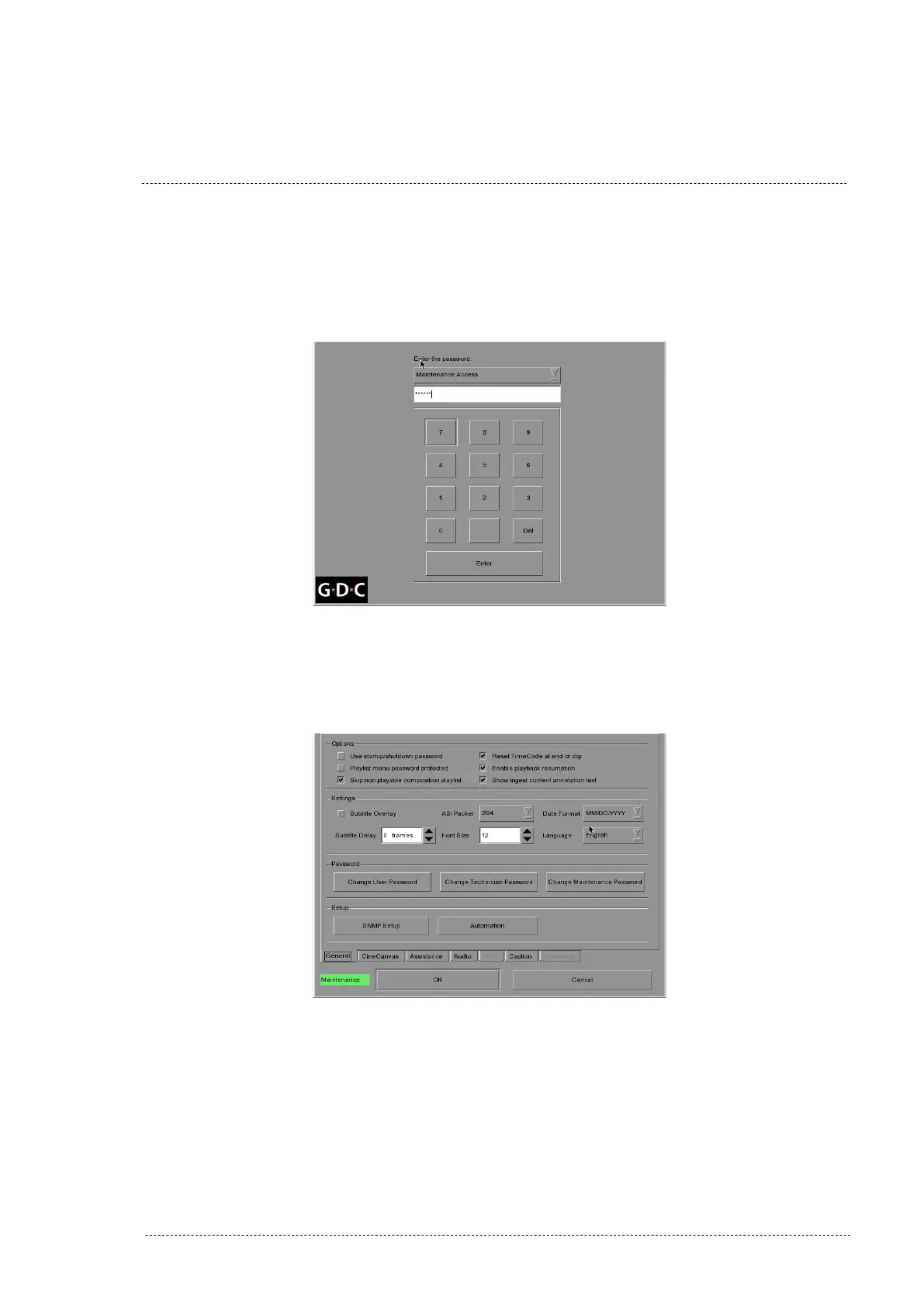

Figure 8.5.1B shows the login screen.

Figure 8.5.1B

4. The “Maintenance” screen is shown in the Figure 8.5.1.C.

Figure 8.5.1C

INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 92
