5-8
ROTALIGN 01.2000
g) Deactivating stray measurements: if a point on the target display
seems somewhat astray, it can be deactivated and remeasured:
1) Use the ARROW softkey to highlight the rogue point with
a cross;
2) Press the "" key. The point will be deactivated and
displayed as a small circle. The status line and "clock" in the
top right corner will also be updated to show which points
are still valid.
3) The deactivated points can be remeasured. Note, howev-
er, that the circles representing the deactivated points
remain on the screen.
4) Restore deactivated points by pressing the "" key again.
If more than one point is active for a given measurement,
they will be averaged.
Press the CLR key to delete all current measurement values.

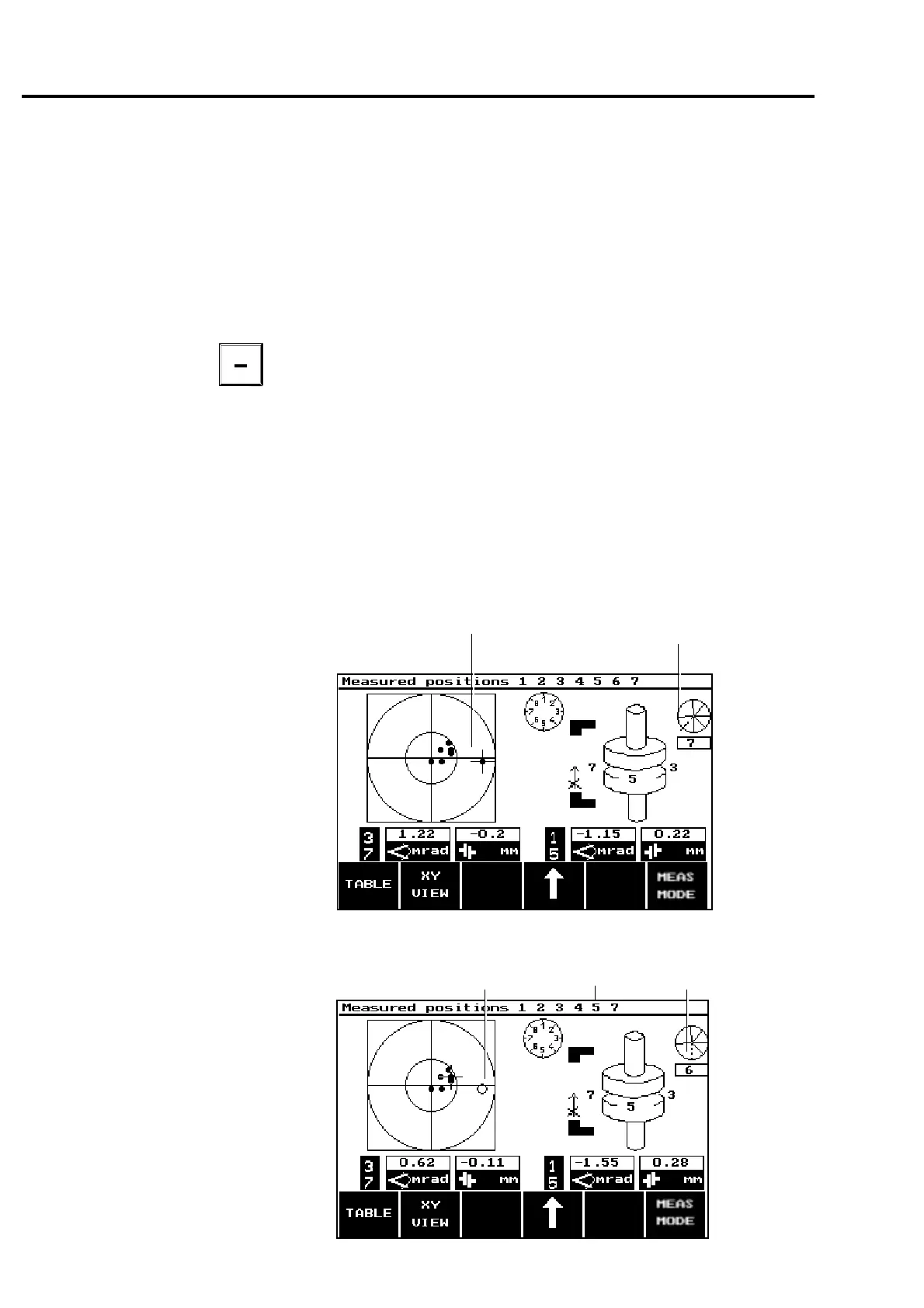

Status line and "clock" show which
points are still valid after deletion
Point deactivated!
Circle shows
deactivated
point
Dotted line indicates which
point is highlighted
Use the arrow key to
select the point(s) to be
deactivated.
Cross highlights
rogue point
CENTERED!
CENTERED!
Vertical machine alignment - measure
