Sample ROTALIGN Report
Sample ROTALIGN Report
ROTALIGN / V 2.00 J / ID92311491 / 0
Horizontal machine alignment 3.6.1996 17:37
===================================
ACHEMA H 3.6.96 17:37 PAGE 1
===================================
**** FILE INFORMATION
Company ACHEMA
Plant NO 3
City/State NY/NY
Username HALLER
Comment MAINTENANCE
**** TYPE OF MACHINE AND COUPLING
Left machine PUMP Stationary
Right machine MOTOR Normal 4 feet
Coupling Type Short flex
Display mode gap/offset

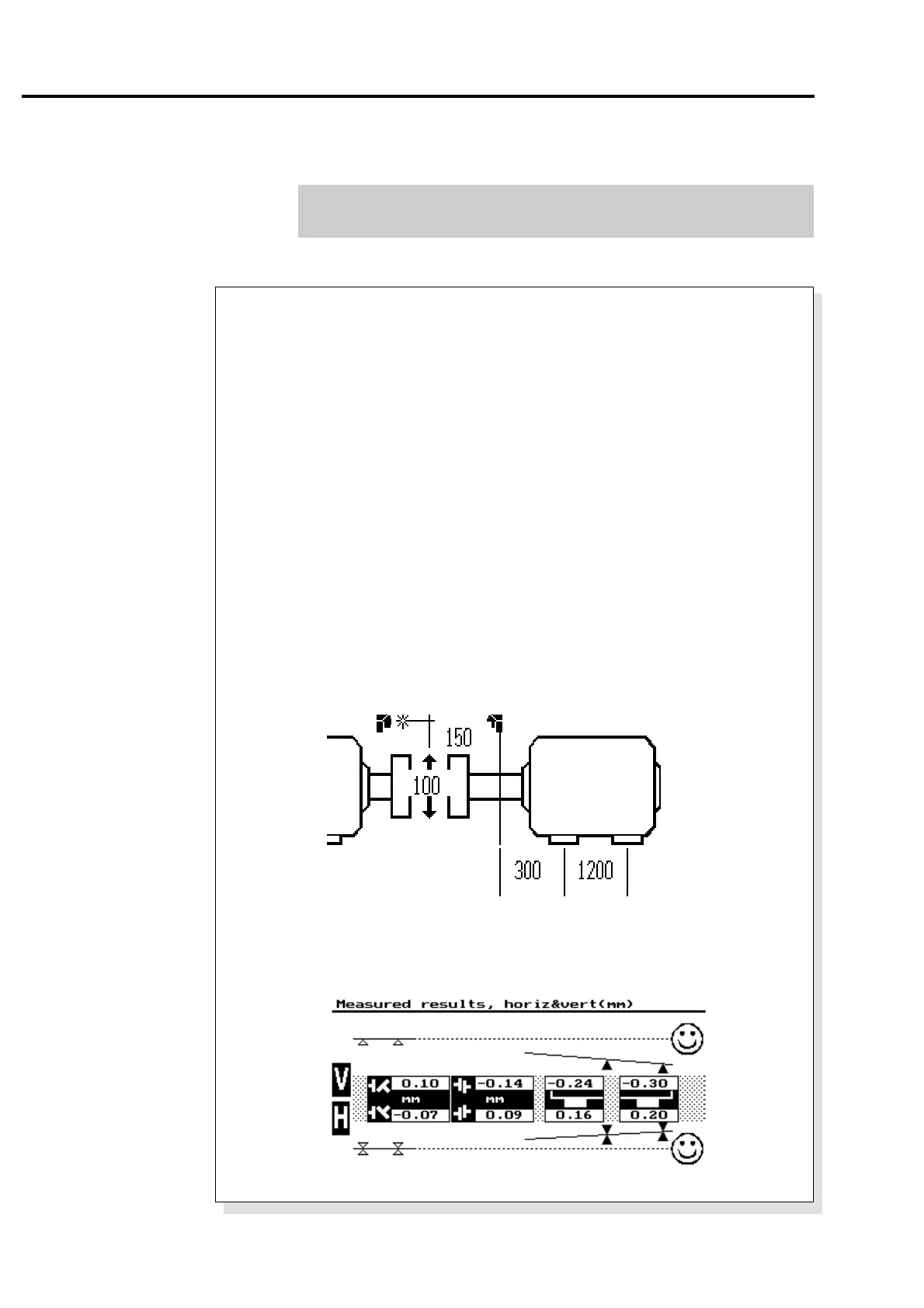

Here is an example of a
ROTALIGN "graph
report" (see page 3-6).
The "print report" is
identical but without
the diagrams. Each
report normally takes
two pages.
PUMP
MOTOR
**** DIMENSIONS
Coupling diameter 100 (mm)
Coupling center to receiver 150 (mm)
Receiver to front foot, right machine 300 (mm)
Front foot to back foot, right machine 1200 (mm)
To Next Page
