ROTALIGN 01.2000
The ROTALIGN computer
Main battery depletion

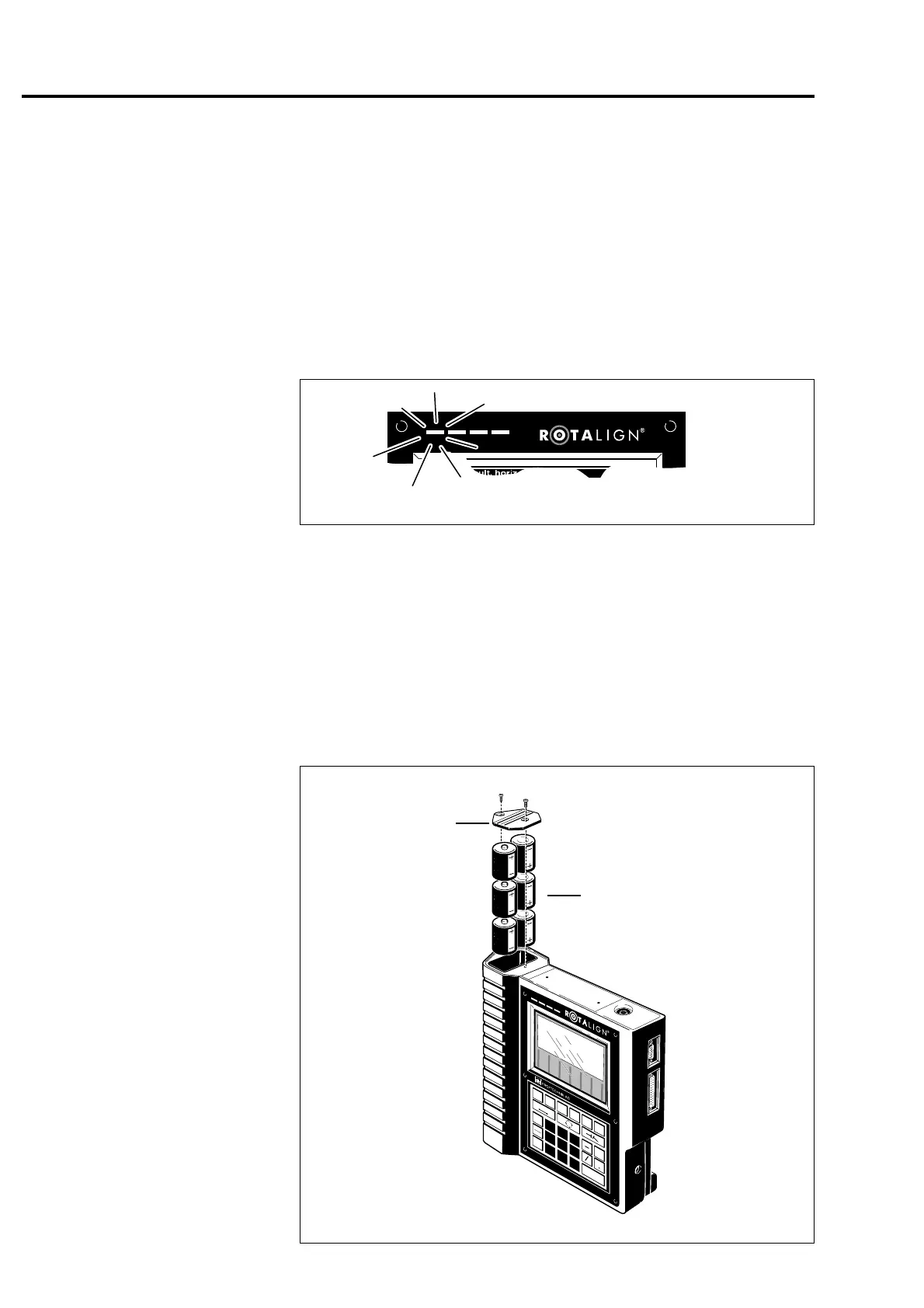

When the main battery becomes depleted, the red "MAIN" LED in the
upper-left corner of the ROTALIGN illuminates. The ROTALIGN then
starts to draw power from its auxiliary battery (described next), and
can operate for an additional 20-40 minutes before the auxiliary
battery is also depleted. The "AUX" LED, adjacent to the "MAIN" LED,
will light up when the auxiliary battery is depleted.
MAIN
......BATT..... ......... .........
AUX
CHARGE
SLEEP
Connect the AC power supply or replace batteries as soon as possible.
Do not rely on the auxiliary battery for longer than absolutely
necessary.
If replacing the "C" size batteries, replace all of them at once with new
ones. Remove them as soon as they become depleted or if the
computer is not to be used for an extended period to prevent battery
leakage.
Used batteries should be disposed of in an environmentally-sound
manner in accordance with applicable regulations!
Panel opened with
a 2.5 mm Allen key
(supplied)
Six "C"-size (IEC LR14)
alkali-mangan batteries
M
A
IN
MAIN
....
. B
A
T
T
..
..
. ........... ..
..
....
.
..... BATT..... ........... .........
A
U
X
AUX
C
H
A
R
G
E
CHARGE
